Overview
In addition, the IS220PDOAH1B supports fast switching and secure terminal connections, allowing engineers to implement efficient control strategies. Its modular design simplifies diagnostics and maintenance, making it ideal for critical turbine control applications that require high reliability.
Specification
| Parameter | Specification / Detail |
|---|---|

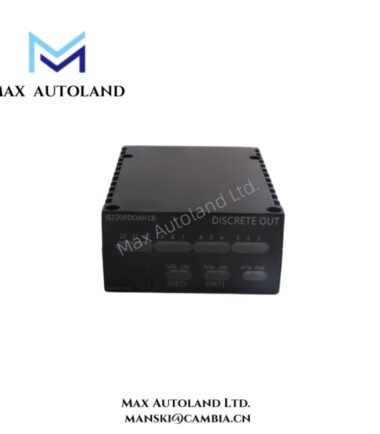

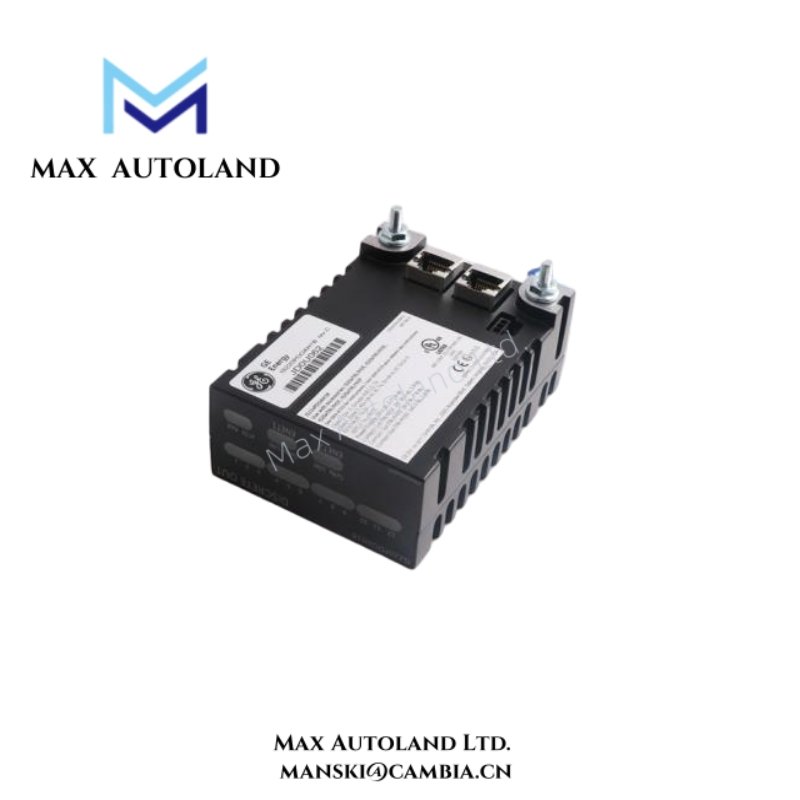

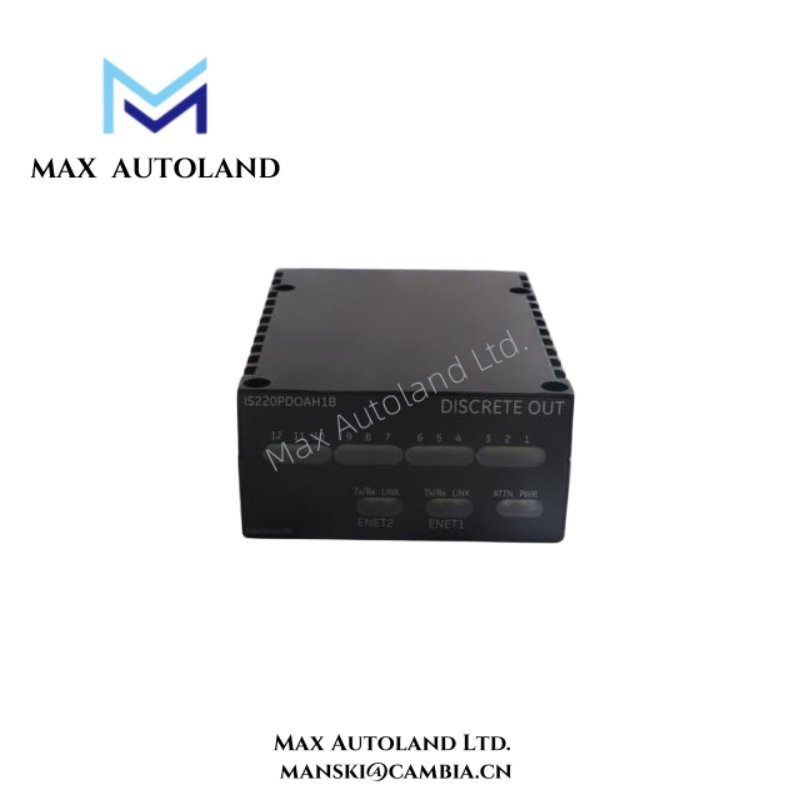

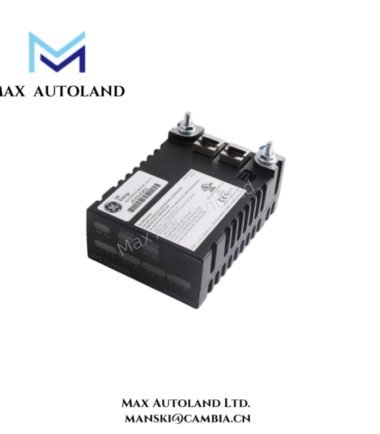

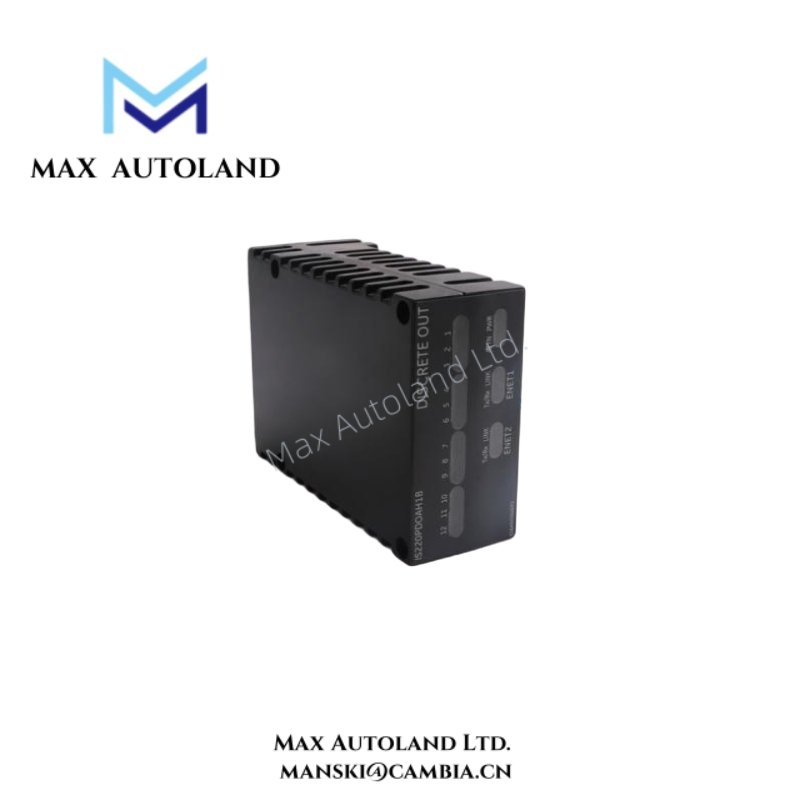

| Model Number | IS220PDOAH1B（IS230SNRLH2A) |
| Module Type | Contact Output Module |
| Compatible Systems | GE Fanuc Mark VIe control systems |
| Output Channels | 16 contact output channels |
| Output Voltage | 24 VDC nominal |
| Output Current Capacity | 0.5 A per channel (max) |
| Switching Speed | Up to 10 ms per channel |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Connectivity | Standard module backplane and field terminal interface |
| Operating Temperature | –40 °C to +70 °C |
| Humidity / Environment | 5% to 95% RH, non-condensing |
| Physical Dimensions | Approx. 4.78″ × 3.25″ × 1.65″ (12.1 cm × 8.3 cm × 4.2 cm) |
| Weight | ~0.6 kg / 1.2 lb |
| Compliance / Certification | Industrial-grade, Mark VIe compliant |
FAQ
A1: It integrates with GE Fanuc Mark VIe control systems and standard field terminal boards.
Q2: How many contact output channels does this module provide?
A2: The module provides 16 discrete contact output channels for flexible digital control.
Q3: What is the maximum current per output channel?
A3: Each channel supports up to 0.5 A, ensuring reliable operation for connected devices.
Q4: Can this module handle harsh industrial environments?
A4: Yes, it operates from –40 °C to +70 °C with 5–95% non-condensing humidity.
Q5: How does it support system diagnostics and maintenance?
A5: The modular architecture and clear terminal layout allow easy diagnostics and maintenance.
