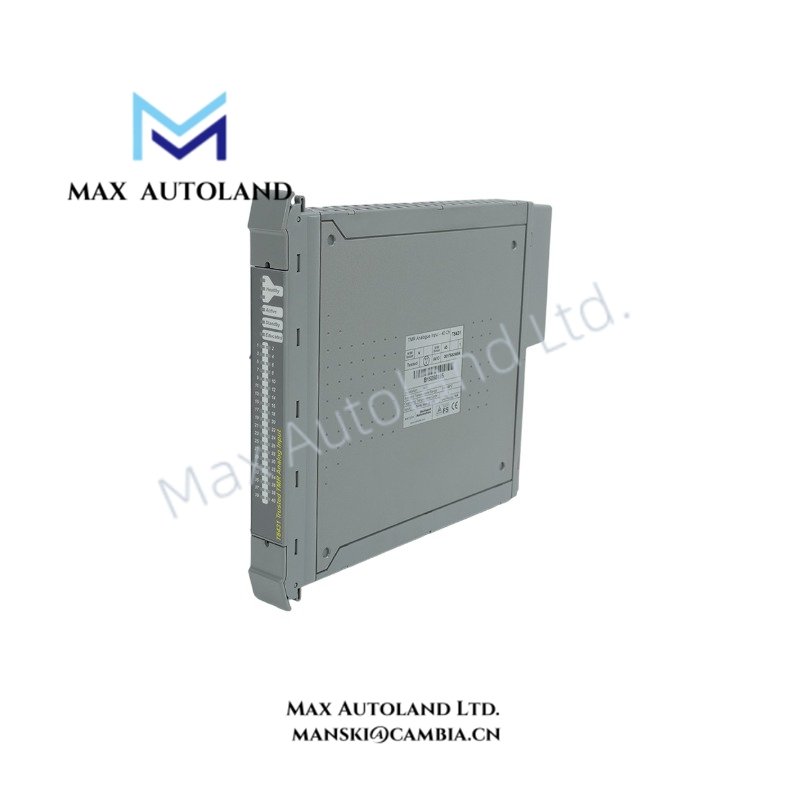

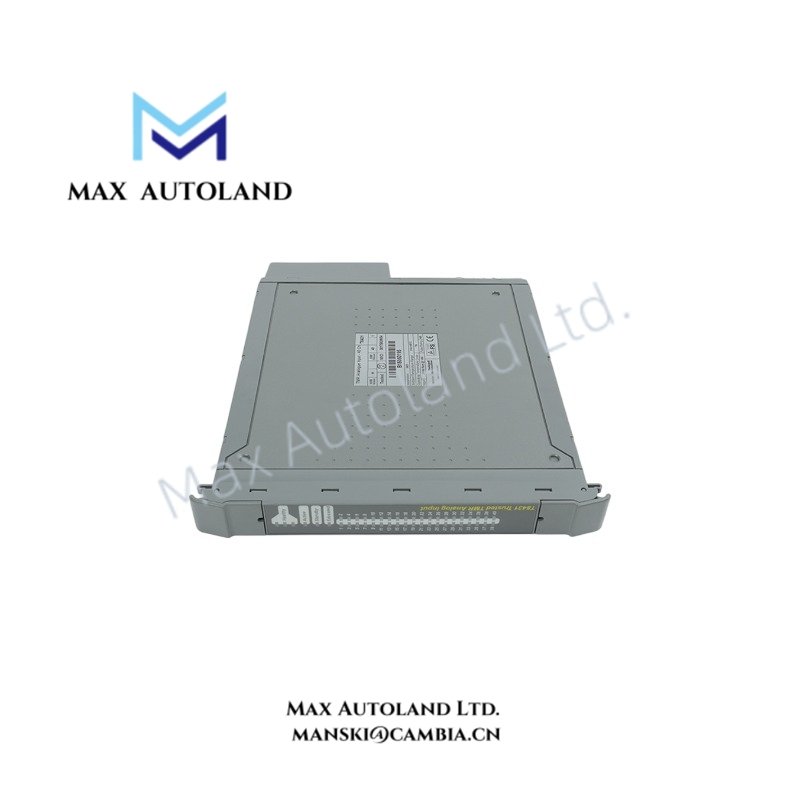

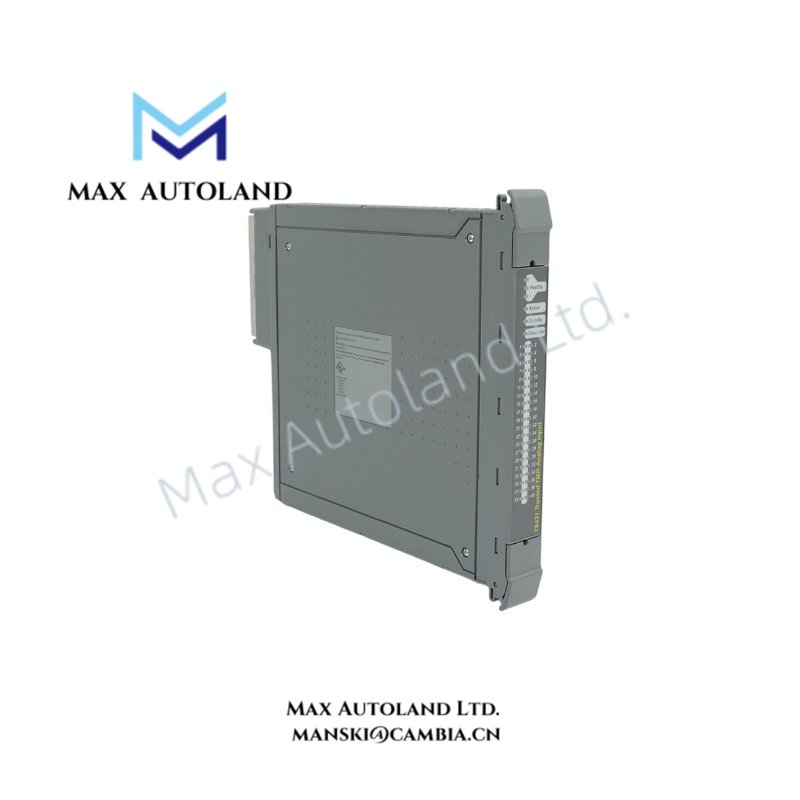

ICS Triplex T8431 Trusted TMR 24Vdc Analogue Input Module

Hardware Specifications

Triple Modular Redundancy and Safety Signal Processing

The ICS Triplex T8431 uses a Triple Modular Redundant (TMR) architecture for analogue input processing within the Trusted safety platform. Each input channel processes signals through three independent paths, and the controller applies a 2oo3 voting mechanism to maintain safe-state operation during single-path faults.

Furthermore, the module supports SIL3 safety system architectures through hardware redundancy, signal comparison, and fault monitoring functions. The design incorporates galvanic isolation between field connections and internal processing circuits to reduce electrical interference and improve separation between field wiring and control electronics.

The module accepts 0 to 22 mA current signals and 0 to 6 VDC voltage signals. Therefore, it can directly interface with standard industrial transmitters and analogue field devices while maintaining channel-level monitoring.

Frequently Asked Questions

Q: Does the T8431 support redundant signal processing?
A: Yes. The T8431 uses TMR hardware architecture with three independent processing paths and 2oo3 voting logic for analogue input evaluation.

Q: What type of analogue signals can the T8431 measure?
A: The module supports 0 to 22 mA current inputs and 0 to 6 VDC voltage inputs through its 40 input channels.

Q: Can the T8431 provide individual field channel protection?
A: Yes. Each field input channel includes a fused field power supply arrangement for channel-level protection.

Field Installation Guidelines

Install the T8431 module according to the Trusted system hardware configuration requirements. Verify that the backplane connection is correctly seated before applying system power.

Use shielded field cables for analogue signal wiring where electromagnetic interference may affect measurement accuracy. Connect cable shields according to the site grounding specification and avoid routing analogue signal cables together with high-voltage power lines.

Confirm field transmitter polarity, loop wiring, and input signal range before commissioning. Check that the connected devices operate within the supported 0 to 22 mA or 0 to 6 VDC input range.

Maintain proper DIN rail mounting alignment and provide sufficient cabinet ventilation to keep the module within the specified operating temperature range.
