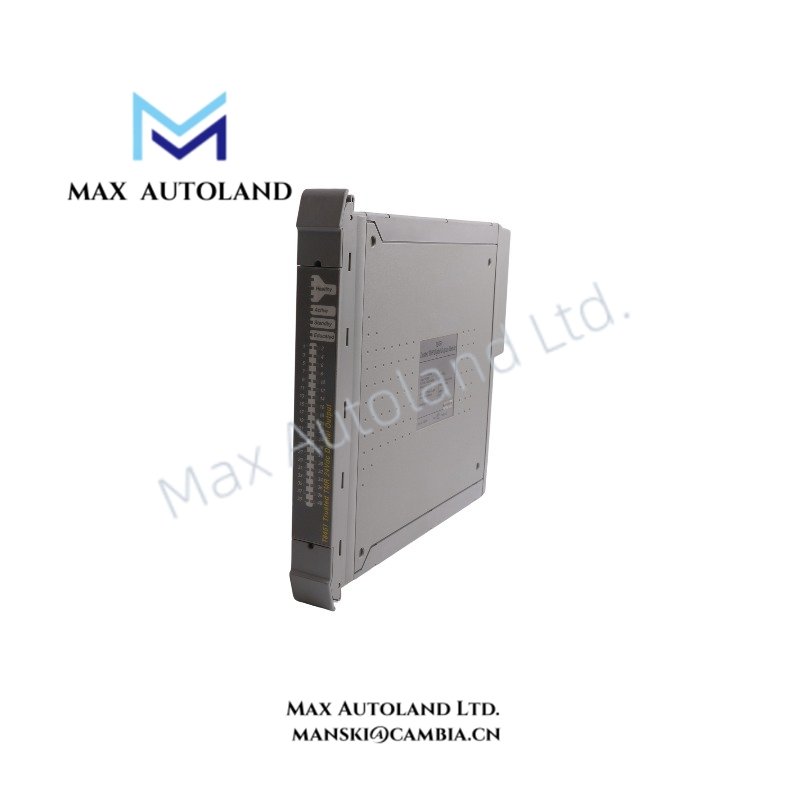

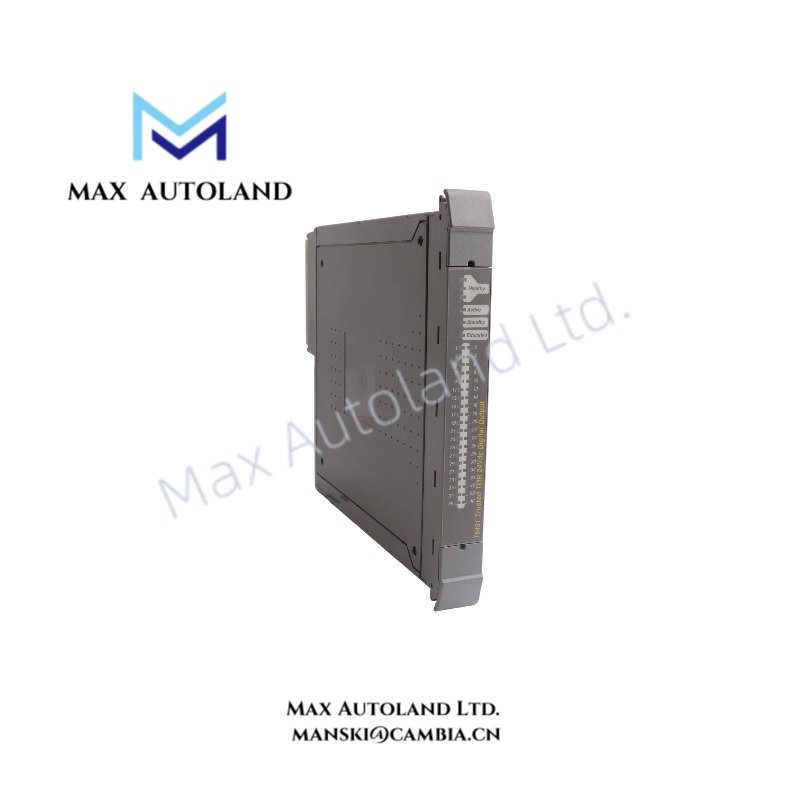

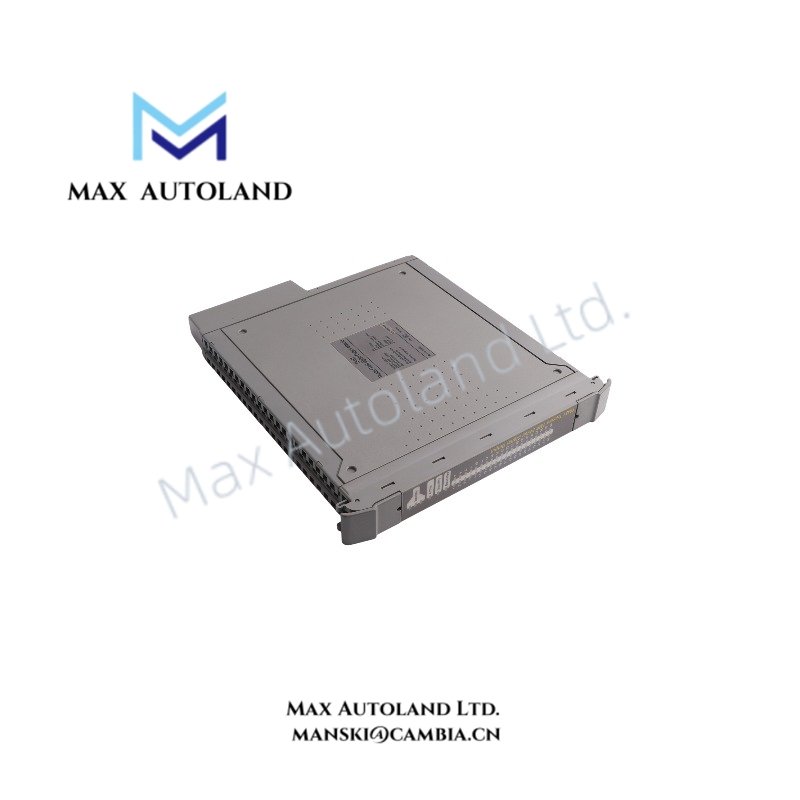

ICS Triplex T8451 Digital Output Module

Hardware Specifications

TMR Safety Output Architecture

The ICS Triplex T8451C Digital Output Module operates within the Trusted TMR safety platform and uses triple modular redundancy (TMR) 2oo3 architecture for output processing. Each output channel receives triplicated control data from the Trusted TMR Processor and passes the signals through an internal hardware voter.

The module provides 40 independent TMR output channels. Furthermore, the channels are divided into five isolated groups, with eight outputs per group sharing a common power source and return path.

Each output channel uses a six-element voted switching array. Therefore, the module maintains output control operation during a single output switch fault condition. The architecture supports fail-safe state execution requirements for IEC-61508 SIL3 safety applications.

The module also provides galvanic isolation through 2500 VDC opto-isolation between internal logic and field circuits. In addition, integrated line monitoring detects field loop current conditions and supports fault diagnostics.

Frequently Asked Questions

Q: Does the T8451 support TMR output processing?
A: Yes. The T8451 uses triple modular redundancy (TMR) processing with internal voting logic for each output channel.

Q: How does the module monitor field output conditions?
A: The module provides per-channel line monitoring and detects the actual field device loop current for Sequence of Events reporting.

Q: What type of isolation does the output module provide?
A: The module provides 2500 VDC opto-isolation between the output circuits and internal module electronics.

Field Installation Guidelines

• Install the T8451C module in the designated Trusted system chassis position according to the system hardware configuration manual.
• Verify the 24 VDC field supply polarity before connecting output devices.
• Separate field output wiring from high-voltage power cables to reduce electrical interference.
• Connect cable shields according to the site grounding standard and avoid multiple grounding points on shielded signal cables.
• Confirm output group power sources and return wiring before commissioning.
• Perform diagnostic checks after installation to verify channel status, line monitoring operation, and field loop response.
