Overview

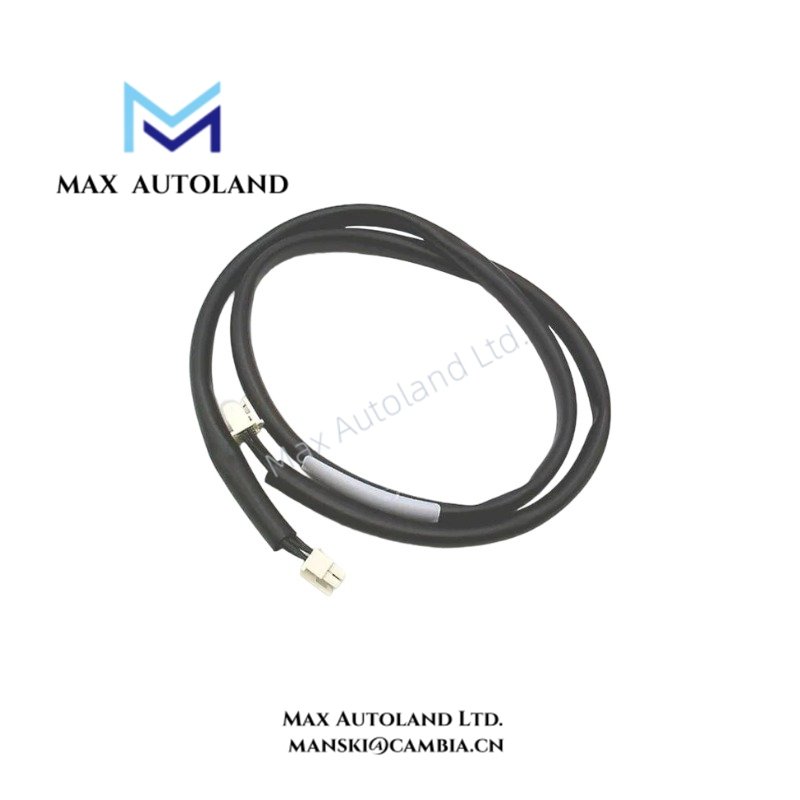

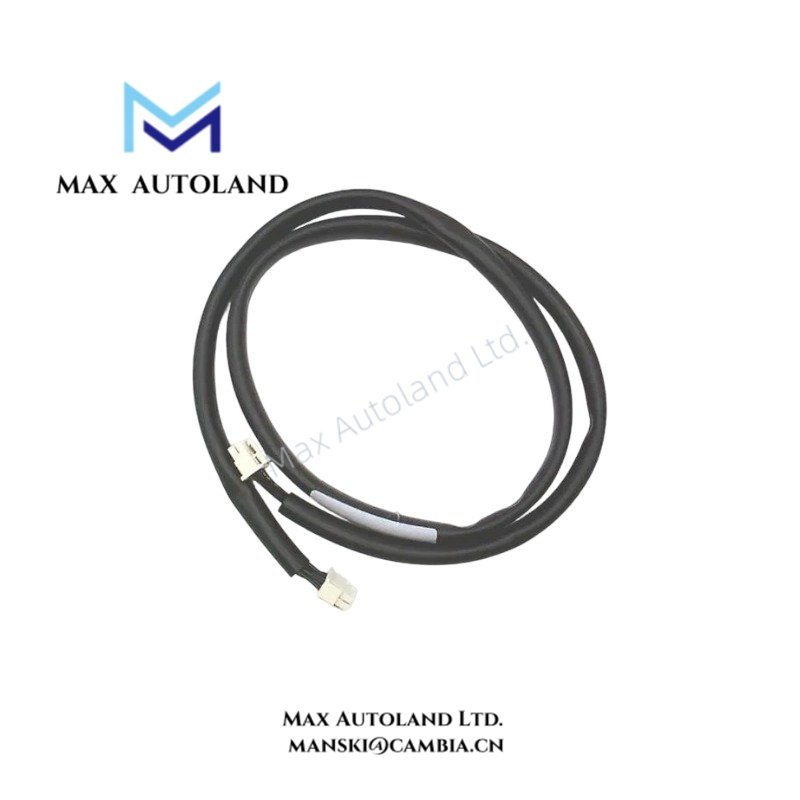

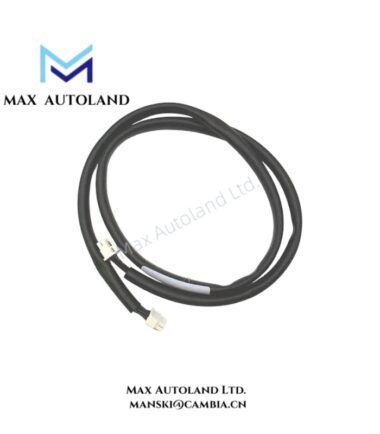

The GE Fanuc IC695CBL001 is an energy pack cable for PACSystems RX3i systems. It connects the energy pack components and includes a termination resistor. In addition, the cable measures 0.91 m (3 ft) in length and meets the requirements of EU RoHS Directive 2011/65/EU. Therefore, it provides a specific connection option for compatible RX3i energy pack configurations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC695CBL001 |
| Brand | GE Fanuc |
| Product Line | PACSystems RX3i |
| Product Type | Energy Pack Cable |
| Cable Length | 0.91 m (3 ft) |
| Termination Resistor | Yes |
| Wiring | Straight-through, end-to-end |
| Energy Pack Dimensions (H x D x W) | 140 x 124 x 25.4 mm (5.5 x 4.8 x 1 in) |
| Operating Temperature | 0 to 60 deg C (32 to 140 deg F) |
| Weight | 0.26 kg (0.56 lb) |
| RoHS Compliance | EU Directive 2011/65/EU |
Connection and Configuration
The IC695CBL001 connects components within a compatible RX3i energy pack configuration. Its straight-through wiring supports an end-to-end connection, while the built-in termination resistor helps meet the specified termination requirements.
Before installing a replacement, check the cable routing and connector arrangement. Also, confirm that the replacement matches the existing energy pack configuration. This step helps prevent connection errors and supports correct system setup.
The voltage ranges and analog I/O details sometimes listed with this product require further verification. Therefore, do not use those values as confirmed cable ratings without checking the relevant technical documentation.
Frequently Asked Questions
Q: What does the GE Fanuc IC695CBL001 do?
A: The IC695CBL001 connects components in a compatible PACSystems RX3i energy pack configuration. It also includes a termination resistor.
Q: Does the IC695CBL001 include a termination resistor?
A: Yes. The cable includes a termination resistor, which you should consider when checking the required connection arrangement.
Q: What should I check before replacing the IC695CBL001?
A: First, confirm the full model number and cable length. Next, check the connector arrangement, cable routing, and termination requirements. Finally, compare the replacement with the applicable system documentation to confirm compatibility.
