Overview

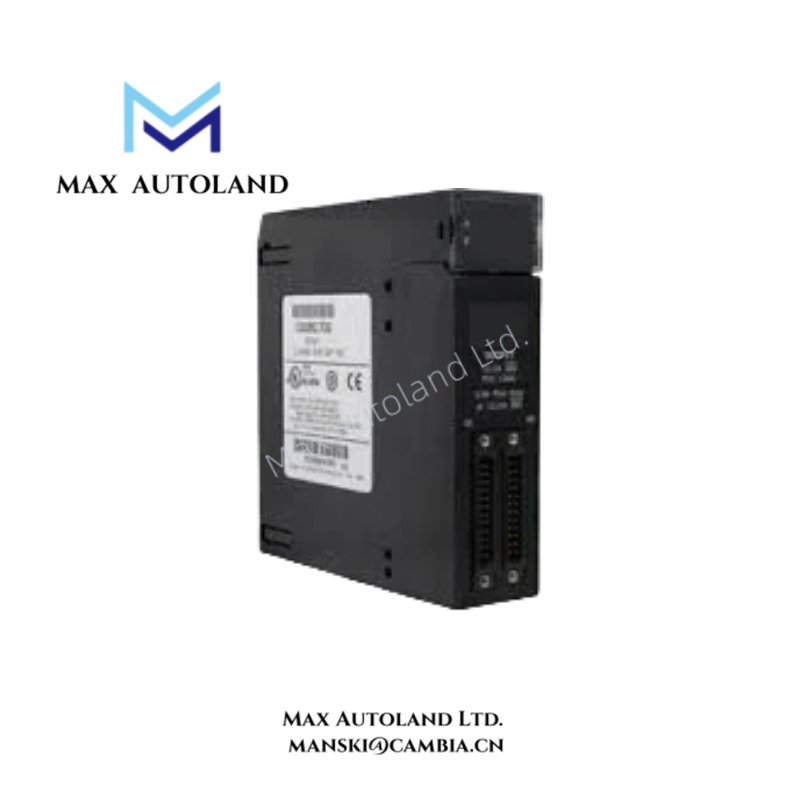

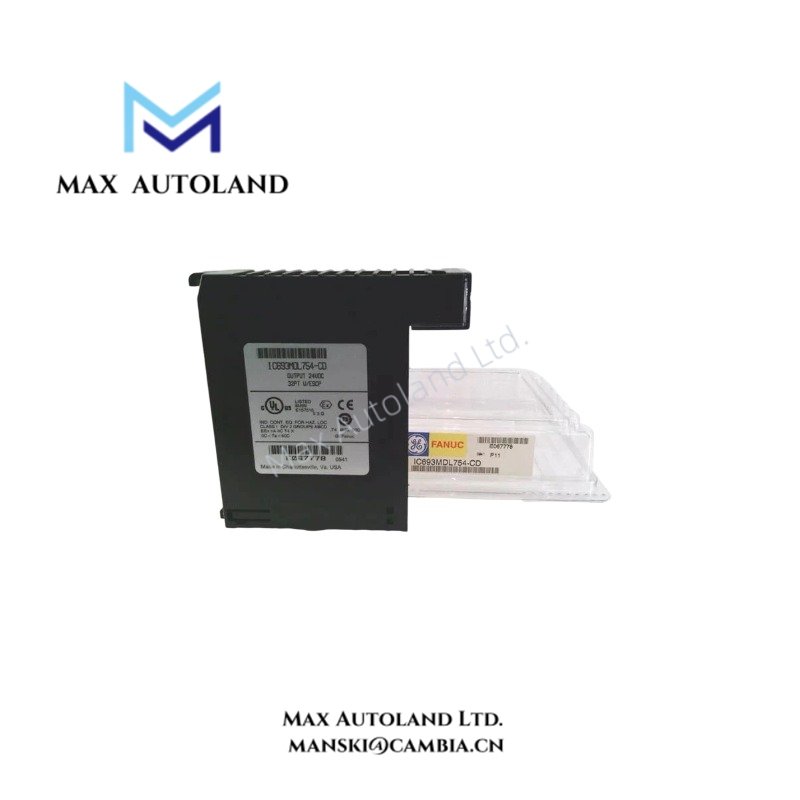

The GE Fanuc IC693MDL754 is a 32-point positive logic output module for the Series 90-30 PLC platform. It provides two groups of 16 output points for controlling external devices through discrete output signals. Each output point has a specified peak current of 0.75 A. The module draws 300 mA from a 5 VDC supply and uses DIP switches for configuration.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC693MDL754 |
| Brand | GE Fanuc Emerson |
| Product Type | Positive Logic Output Module |
| Product Line | Series 90-30 |
| Output Points | 32 |
| Output Groups | 2 groups of 16 points |
| Output Logic | Positive logic |
| Peak Output Current per Point | 0.75 A |
| Module Current Draw | 300 mA |
| Module Supply Voltage | 5 VDC |
| Configuration | DIP switch |
| Compatible Platform | GE Fanuc Series 90-30 PLCs |
| Weight | 1.13 lbs (0.51 kg) |
Output Configuration and Signal Handling
The IC693MDL754 organizes its 32 output points into two groups, each containing 16 points. This arrangement is relevant when checking output assignments and field wiring during module replacement or PLC maintenance. Positive logic describes the output logic convention; the actual field wiring and load requirements should be verified against the module’s technical documentation.
The specified peak output current is 0.75 A per point. However, this figure alone does not establish the permitted continuous current, total group current, or simultaneous loading limits. Confirm these ratings before connecting loads, particularly when multiple output points operate at the same time.
Power and Configuration
The module draws 300 mA from the 5 VDC supply. This value should be included when checking the PLC rack’s power budget, alongside the current requirements of other installed modules.
DIP switches are listed as the module configuration method. Before replacing an existing unit, check the installed switch settings and confirm that the replacement matches the required application configuration.
Product Lifecycle and Replacement Checks
The IC693MDL754 is identified as discontinued or obsolete in the supplied information. For maintenance of an existing Series 90-30 installation, verify the complete part number and the required output configuration before purchasing a replacement. Do not assume that a different output module is interchangeable solely because it supports the same PLC platform.
Frequently Asked Questions
Q: How many output points does the IC693MDL754 provide?
A: It provides 32 output points divided into two groups of 16 points each.
Q: What power supply does the IC693MDL754 require?
A: The supplied specifications list a 5 VDC module supply and a current draw of 300 mA. Verify the applicable rack power requirements and field-load supply arrangements before installation.
Q: Is the IC693MDL754 still in production?
A: The supplied information identifies the module as discontinued or obsolete. Confirm stock condition, exact part number, and application compatibility before ordering a replacement.
