Overview

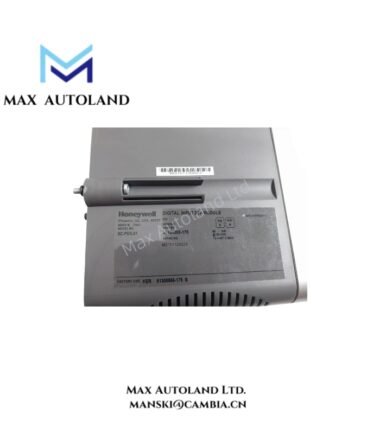

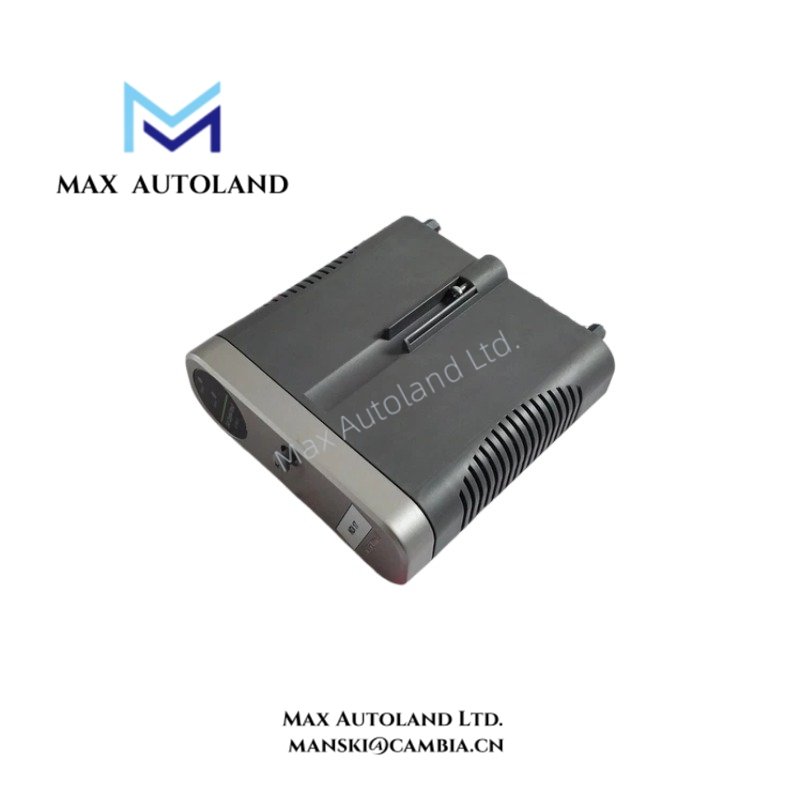

The Honeywell 8C-PAIH51*E is an analog input module listed for the Honeywell Experion Series-C I/O system. It receives analog signals from field devices and converts them into data for the control system. The supplied specifications list a nominal 24 VDC power supply, 8 input channels, an Ethernet interface, an operating temperature range of -40 to 70 deg C, and IP20 protection. Verify model-specific details before ordering a replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8C-PAIH51*E |
| Brand | Honeywell |
| Product Type | Analog Input Module |
| System | Experion Series-C I/O |
| Number of Channels | 8 |
| Power Supply | 24 VDC nominal |
| Communication Interface | Ethernet |
| Operating Temperature | -40 to 70 deg C |
| Protection Rating | IP20 |
Signal Handling and Configuration
The module receives analog measurements from field devices and supplies the resulting data to the control system. However, the exact input signal types and ranges are not confirmed in the supplied information. Check these details before connecting field transmitters or selecting a replacement.
Also, verify the termination assembly and wiring requirements for the installed configuration. Similar model numbers do not guarantee identical electrical specifications or system compatibility.
Frequently Asked Questions
**Q: How many input channels does the 8C-PAIH51*E support?**
A: The supplied information lists 8 channels. However, this figure requires confirmation against the exact model documentation before you use it for system planning or replacement.
**Q: Does the 8C-PAIH51*E use an Ethernet interface?**
A: The supplied data lists Ethernet, but it does not confirm the interface for this exact model. Therefore, check the hardware documentation before planning network connections.
Q: What should I check before ordering this module?
A: First, confirm the complete model number and channel count. Then verify the input signal range, termination assembly, wiring requirements, and compatibility with the installed Experion I/O system.
