Overview

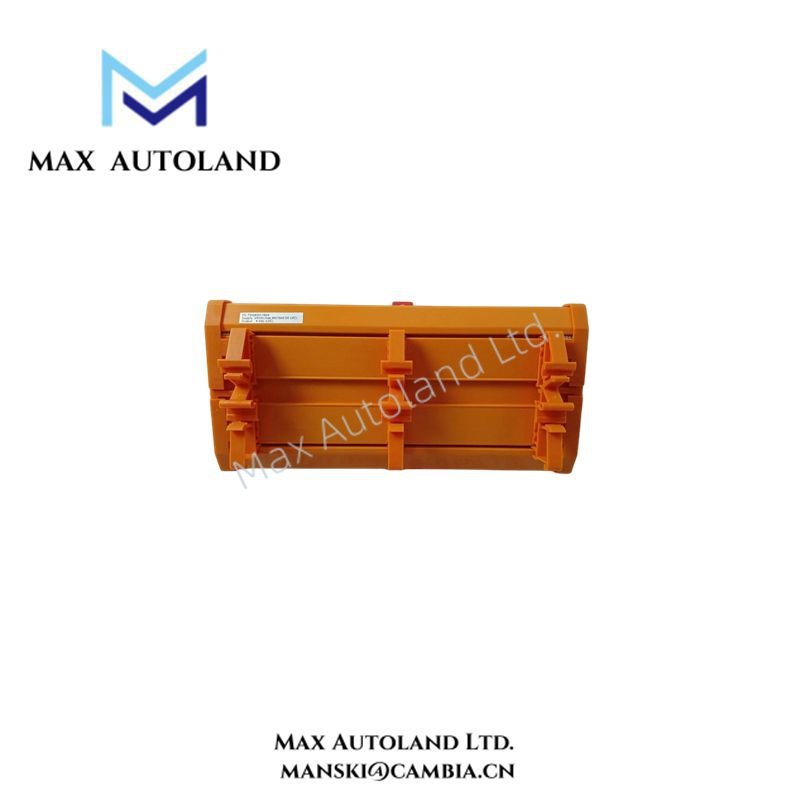

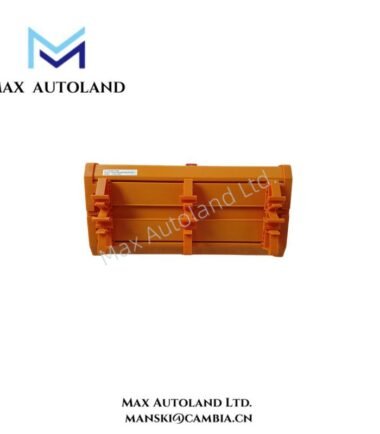

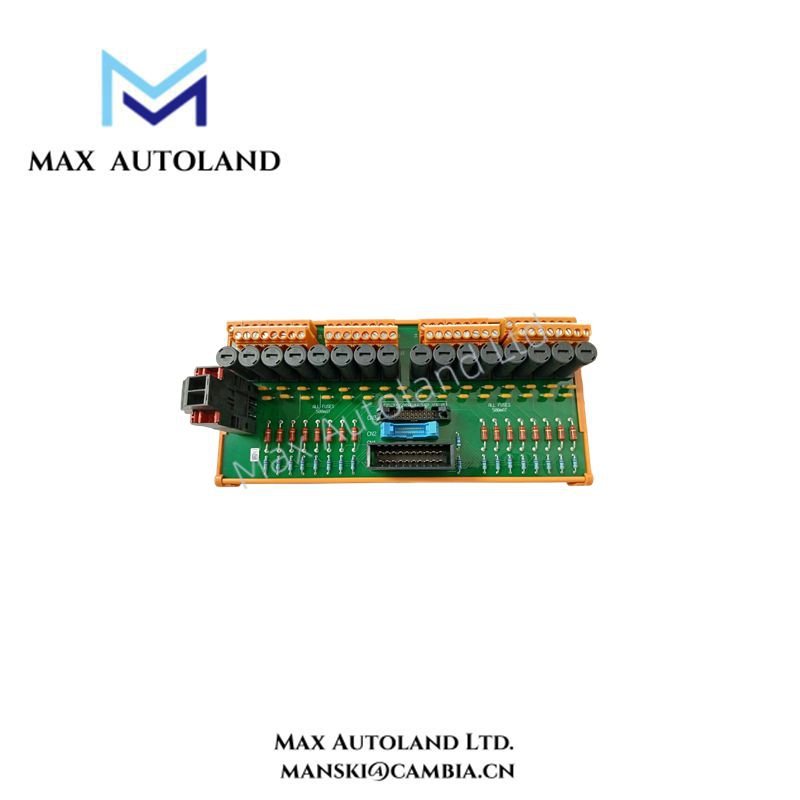

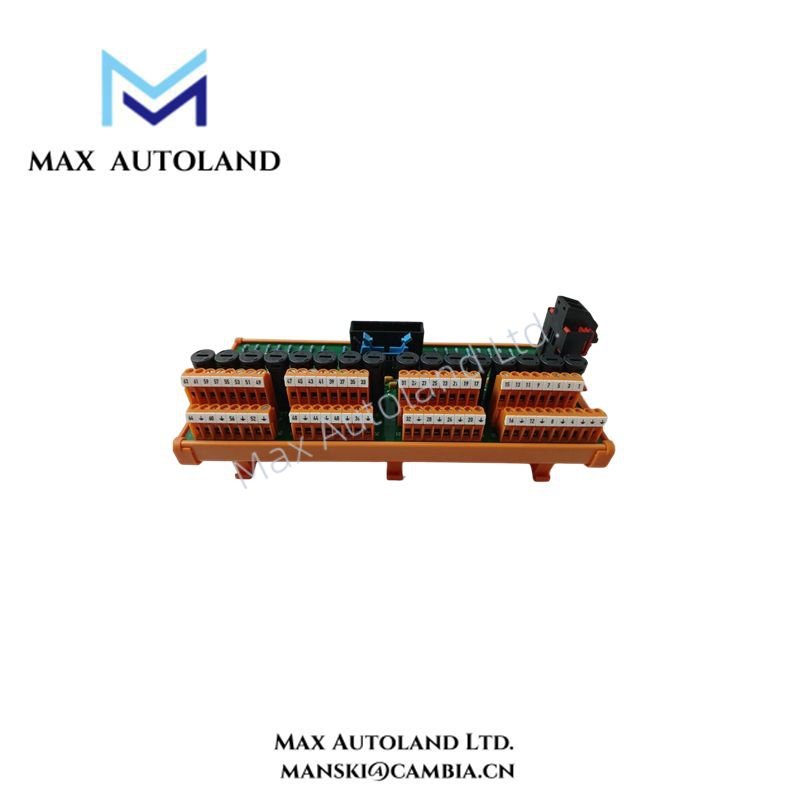

The Honeywell FC-TSGASH-1624P is a Field Termination Assembly (FTA) module that actively interfaces gas and flame detectors with HART capability to the Safety Manager system. It delivers safe and accurate signal transmission to the SAI-1620m high-density analog input module, which efficiently supports both safety-related and non-safety-related applications.
In particular, the TSGASH-1624P module acts as the critical interface between field gas/flame detectors with HART signals and the safe SAI-1620m analog input module within the Safety Manager system. Furthermore, this module provides sixteen analog input channels, each capable of handling signals for either safety-critical or standard monitoring applications. This design allows engineers to integrate multiple devices seamlessly while maintaining high system reliability.
Specification
| General | Type numbers: | FC-TSGASH-1624P |
| Approvals: | CE,TUV,UL,CSA | |
| Input | Number of input channels: | 16(with common OV) |
| Power requirements: | 24VDC external,2.5mA(without field loads) | |
| Input current: | 0-25 mA | |
| Input resistance: | 500Ω(±5%) | |
| Output | To SAI-1620m module: | |
| ·Output voltage | 0-4V DC | |
| ·Accuracy | 0.1% | |
| To HART multiplexer unit: | ||
| ·Output voltage | Max.11V peak-peak | |
| ·Series impedance | >2μF | |
| Fuse | Fuse rating: | 500 mA |
| Fuse dimensions: | 5×20 mm | |
| Voltage rating AC: | 250V | |
| Voltage rating DC: | 300V | |
| Manufacturer: | Schurter | |
| Manufacturer PN: | 0001.2501 | |
| Derating curve: | Linear from 0.5 A at 25 dC to 0.35 A at 70 dC module ambient | |
