Overview

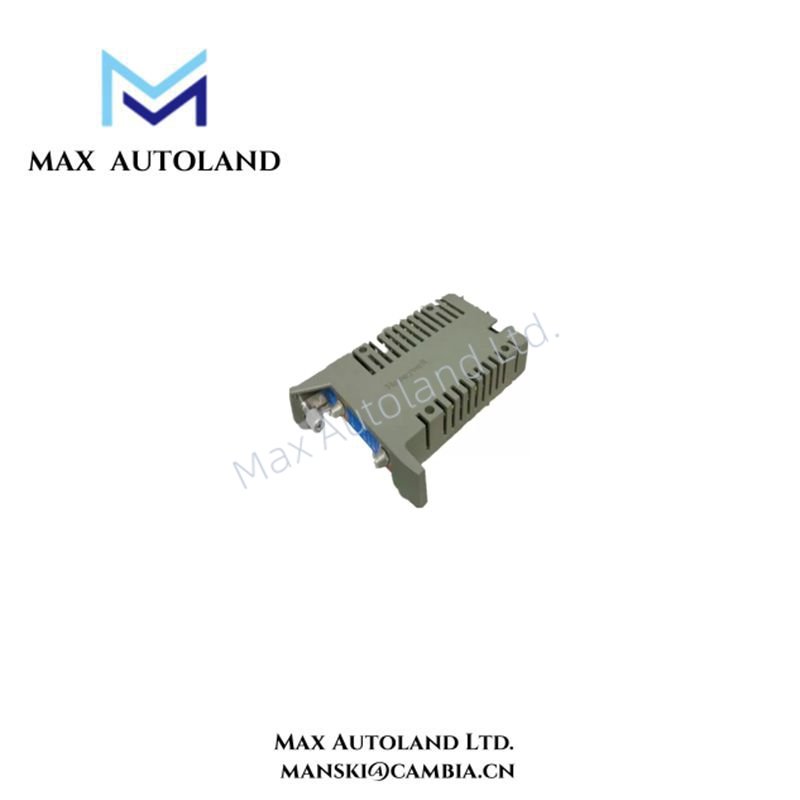

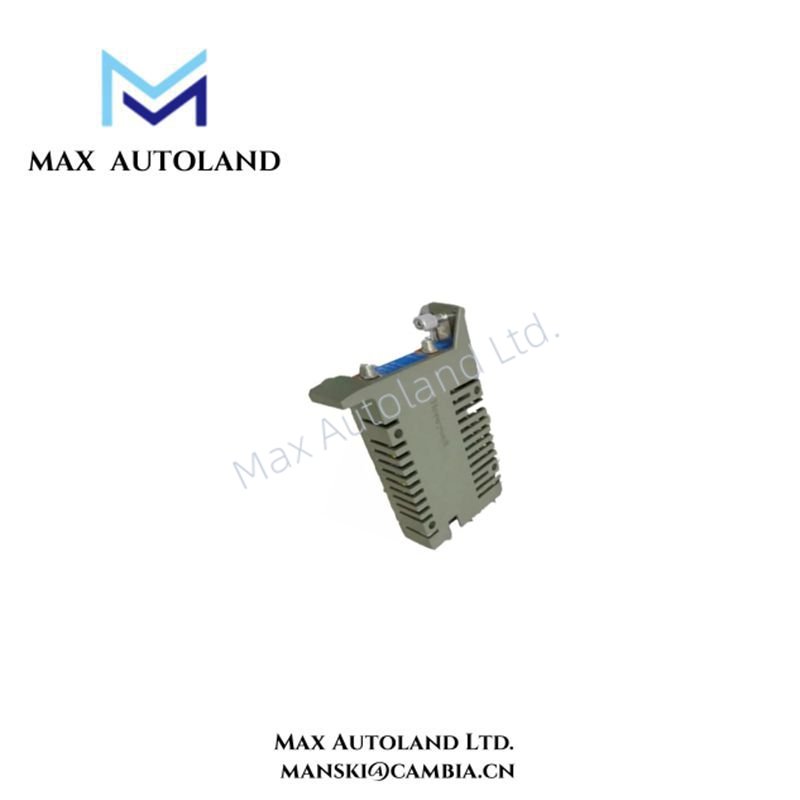

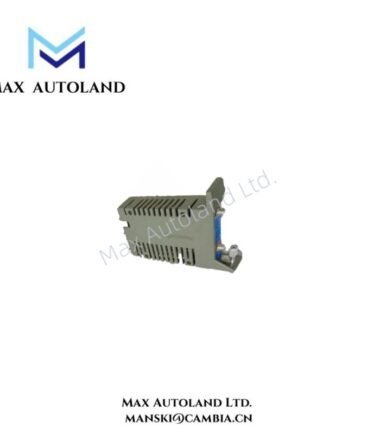

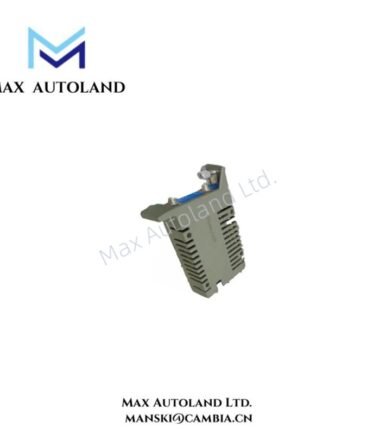

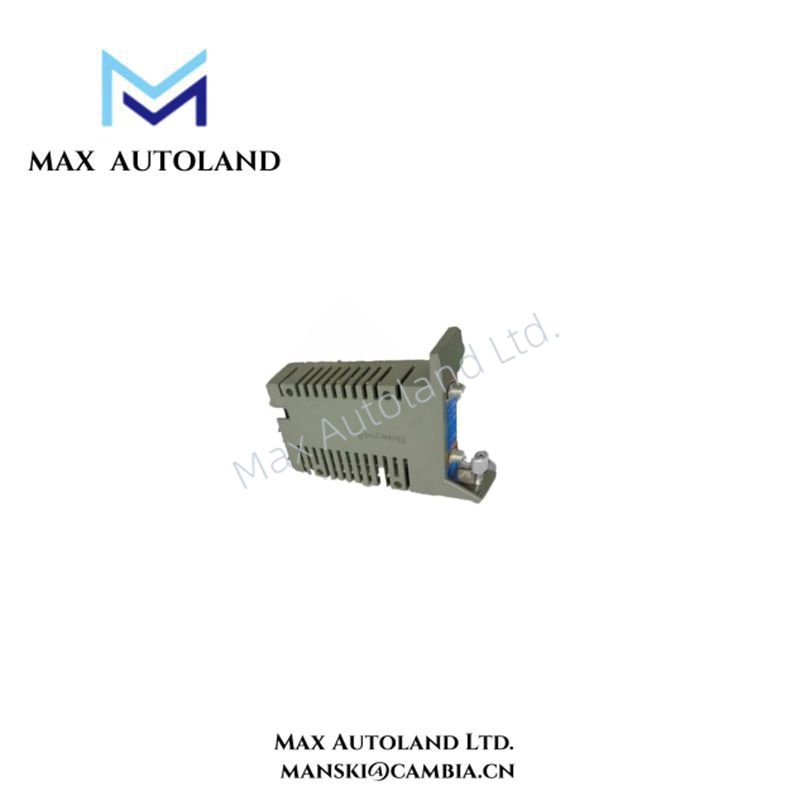

The Honeywell FC-RUSFDU-01 is a high-performance PCB terminal board module designed to interface field devices with the Safety Manager system. It ensures secure and efficient connections, supporting reliable data acquisition and control in industrial automation applications.
Moreover, Table 4 on page 73 outlines the parts of the RUSFDU-01 cabinet that customers can order separately as spare parts when needed. This allows maintenance teams to quickly replace or upgrade components, ensuring continuous system operation without unnecessary downtime.
Specification
| Parameter | Specification |
| Type Number | FC-RUSFDU-01 |
| Operating Temperature | 5°C to +60°C (+23°F to +140°F) |
| Storage Temperature | -25°C to +80°C (-13°F to +176°F) |
| Relative Humidity | ≤95% (non-condensing) |
| Approvals | CE, UL, TUV |
| Supply Voltage | 102–132 VAC or 196–253 VAC |
| Supply Load Frequency | 47–63 Hz |
| Supply Current | 2 × 0.6 A at 120 VAC, 60 Hz (no load) |
| 2 × 1 A at 230 VAC, 50 Hz (no load) | |
| Approx. Power Consumption | 35 W (no load) |
| Power Supply Efficiency | >85% |
| Connector Type | Pole header (3 pins used) |
| Make and Type | Weidmuller BLZ 5.08/SF SN SW |
| Connector Names | X1, X2 |
Manual/Datasheet PDF
FC-RUSFDU-01 Honeywell FSC PCB Terminal Board Module datasheet
