Overview

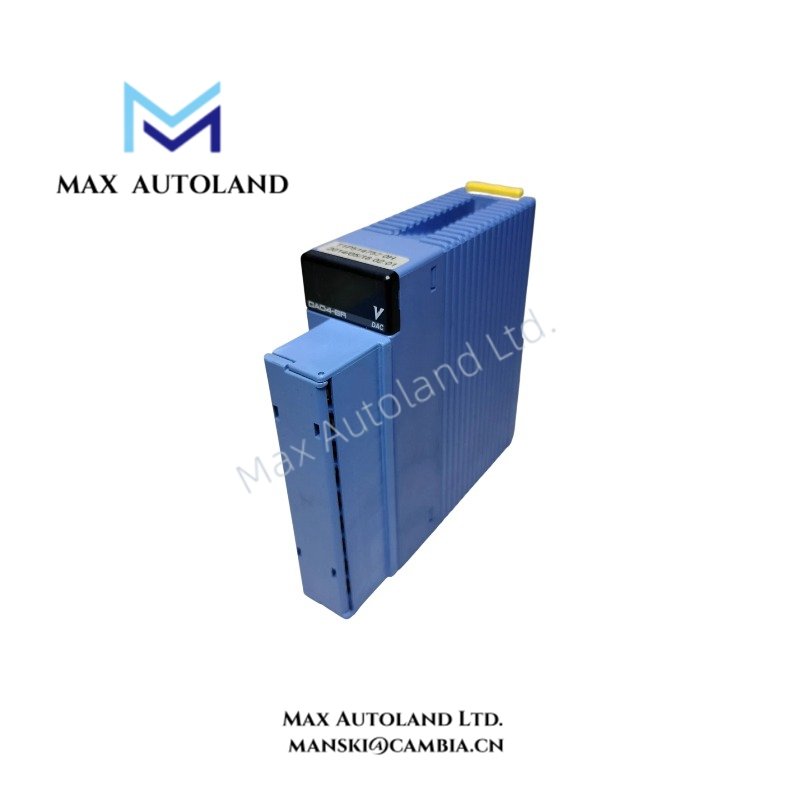

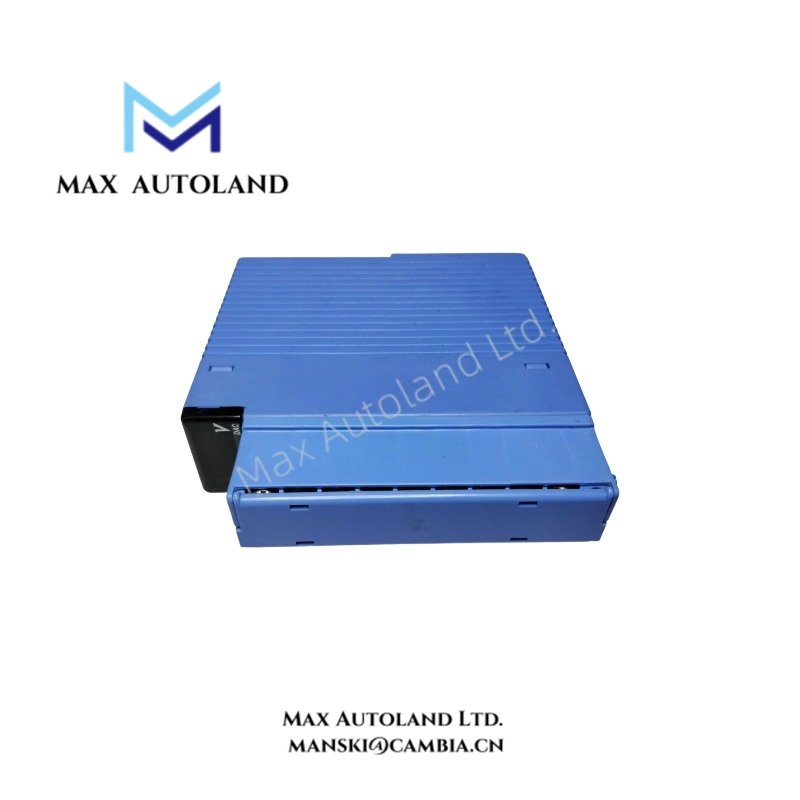

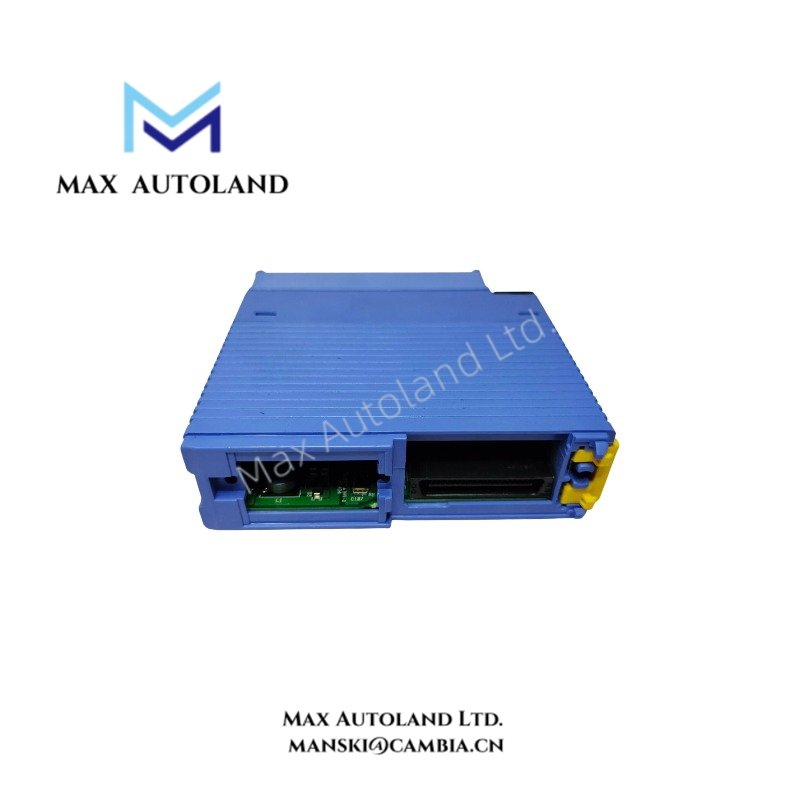

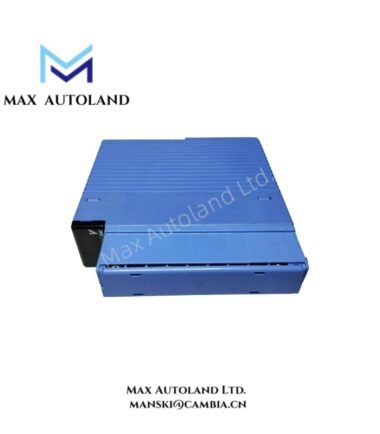

The Yokogawa F3DA04-6R, based on the F3DA04 analog output module, converts digital data into voltage or current signals for output control within the FA-M3 PLC system. It provides four output channels, a 16-bit digital-to-analog converter (DAC), and a channel conversion speed of 2 us. Software configuration supports multiple output ranges and synchronized updates across active channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | F3DA04-6R |
| Brand | Yokogawa |
| Product Series | FA-M3 |
| Module Type | Analog Output Module |
| Number of Outputs | 4 |
| D/A Conversion Resolution | 16-bit |
| Voltage Output Ranges | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V |
| Current Output Ranges | 4 to 20 mA, 0 to 20 mA, -20 to 20 mA |
| Conversion Speed | 2 us per channel |
| Output Update Time | 2 us + 2 us x number of channels updated |
| Voltage Output Resolution | 0.2 mV for 0 to 5 V and 1 to 5 V ranges |
| Current Output Resolution | 0.5 uA for 4 to 20 mA range |
| Voltage Output Accuracy | +/- 0.1% of full scale at 23 +/- 2 deg C |
| Current Output Accuracy | +/- 0.2% of full scale at 23 +/- 2 deg C |
| External Power Supply | 24 VDC |
| Allowable Supply Voltage | 19.2 to 30 VDC |
| Internal Current Consumption | 60 mA, excluding external supply consumption |
| External Supply Current Consumption | 200 mA; inrush current 1 A |
| External Connection | 18-point terminal block, M3.5 screws |
| Dimensions | 28.9 x 100 x 106.2 mm (W x H x D) |
| Weight | 180 g |
DCS Process Signal Conversion and Output Control
The F3DA04-6R generates analog voltage and current signals from digital values supplied by the FA-M3 controller. Its 16-bit DAC supports configurable output ranges, allowing the module to interface with compatible analog control inputs.
- Voltage output: Supports four selectable ranges, including -10 to 10 V and 0 to 10 V.
- Current output: Supports 4 to 20 mA, 0 to 20 mA, and -20 to 20 mA.
- Synchronous updates: The DACs of all active channels on the same module can update synchronously.
- Output timing: The update time depends on the number of channels updated in one instruction.
- CPU failure response: The output behavior during CPU failure can be configured independently for each channel.
The output terminals share a common negative reference and are not isolated from one another. The digital signal isolation coupler provides isolation between the output terminals and internal circuitry, with a stated withstand rating of 500 VDC for one minute.
Frequently Asked Questions (FAQ)
Q: How many analog output channels does the F3DA04-6R provide?
A: It provides four analog output channels. Each channel supports software-configurable voltage or current output ranges.
Q: Can all four output channels update simultaneously?
A: Yes. The module supports synchronous DAC updates across all active channels. The update time is 2 us plus 2 us multiplied by the number of channels updated.
Q: Are the analog output channels electrically isolated from each other?
A: No. The output terminals share a common negative reference. The specified 500 VDC, one-minute withstand rating applies between the output terminals and internal circuitry, not between individual output channels.
Field Installation Guidelines
- Install the F3DA04-6R in a compatible Yokogawa FA-M3 system and confirm the assigned module position before wiring.
- Verify the external 24 VDC supply polarity and ensure the supply remains within the specified 19.2 to 30 VDC range.
- Select the required voltage or current output range through the supported software configuration before connecting field devices.
- Check the input requirements and allowable load of each connected device. The module specifies minimum load resistance values for voltage outputs and a 600 ohm minimum load for current output.
- Route analog signal wiring separately from high-voltage and high-current conductors to reduce electrical interference.
- Connect cable shields according to the plant grounding design and applicable Yokogawa installation instructions.
- Do not apply an external voltage or current directly to the output terminals.
- Configure the required output behavior for CPU failure and verify the resulting field signal during commissioning.
