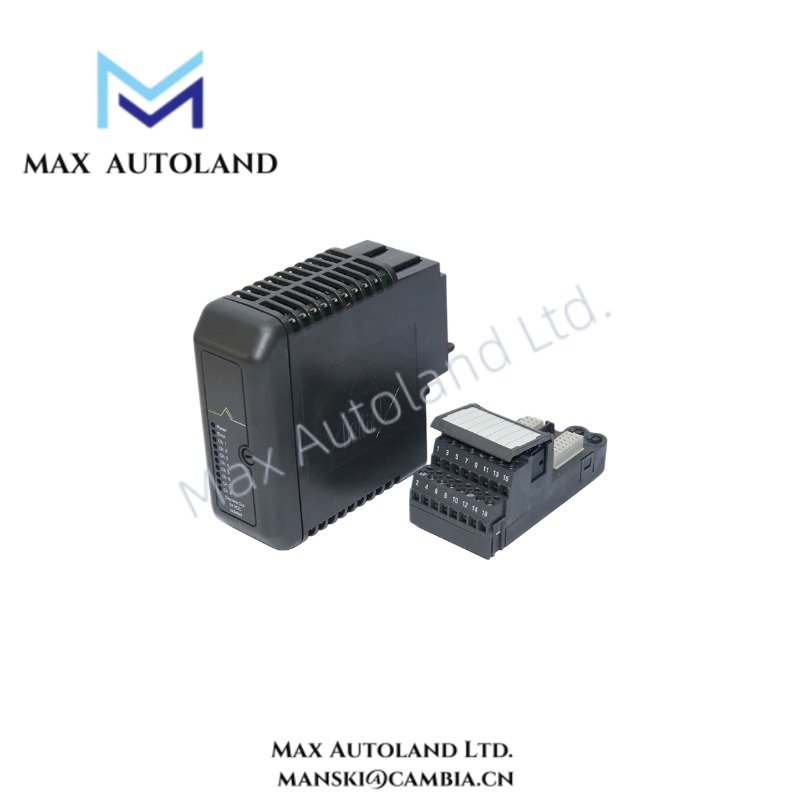

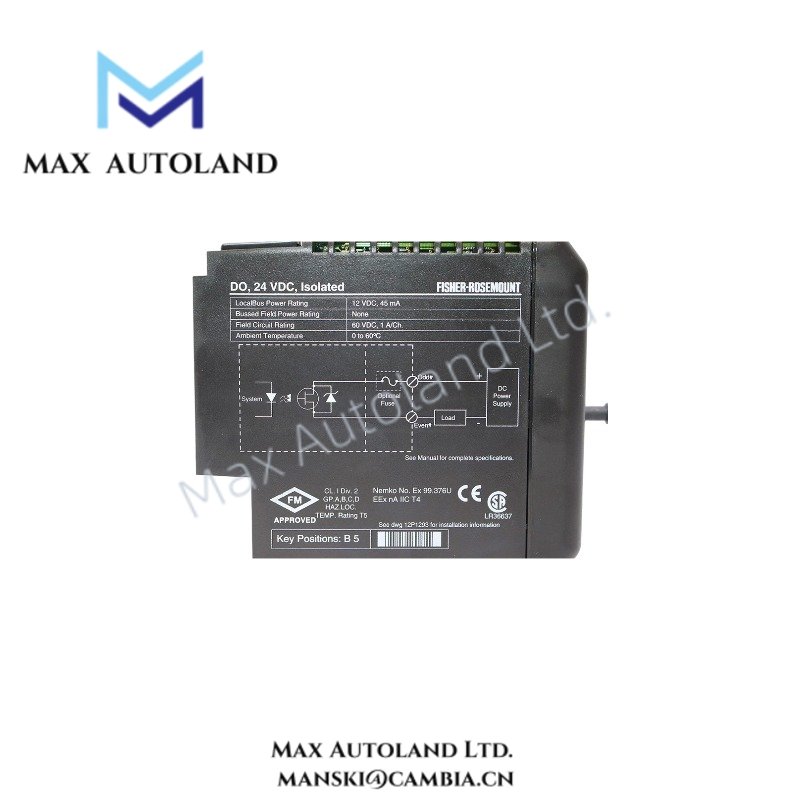

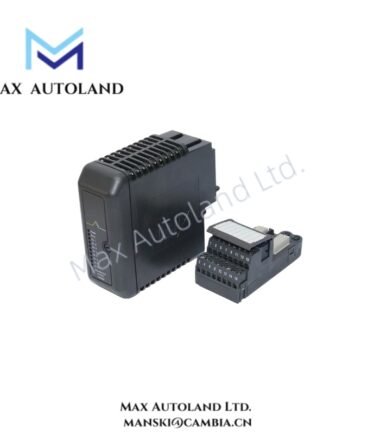

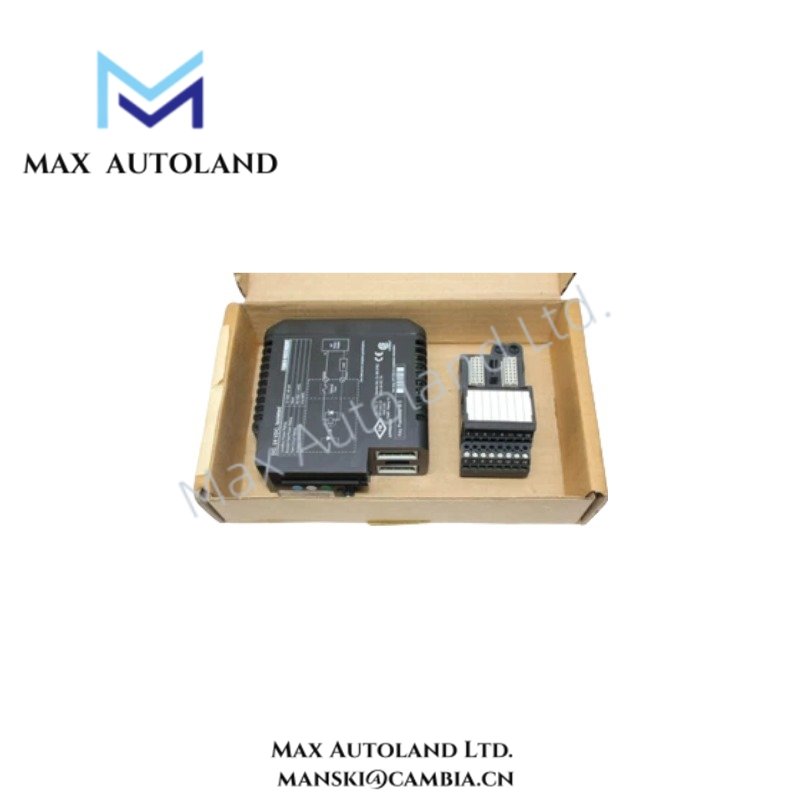

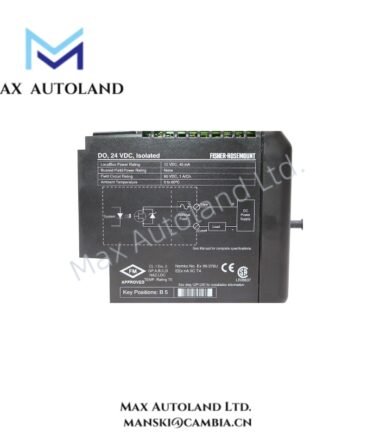

Emerson VE4002S1T1B2 DeltaV Discrete Output Module

Hardware Specifications

DeltaV Process Control and Output Interface

The VE4002S1T1B2 provides discrete output signals for direct control of binary field devices. The module can therefore command devices such as valves, motors, pumps, and status indicators through their associated electrical circuits.

For DeltaV installations, engineers should verify the exact output channel configuration against the applicable hardware documentation. In addition, the field wiring should match the specified voltage, load, terminal assembly, and protection requirements.

The Emerson DeltaV platform also supports process instrumentation technologies such as 4-20 mA HART and fieldbus communications at the system level. However, the supplied data identifies this specific module as a discrete output device and does not establish HART or FOUNDATION Fieldbus functionality for the VE4002S1T1B2.

Frequently Asked Questions (FAQ)

Q: What type of signal does the VE4002S1T1B2 provide?
A: It provides discrete or digital output signals for binary on/off control.

Q: What operating supply voltage is specified for this module?
A: The supplied specifications identify a 24 VDC operating power supply.

Q: Does the supplied data specify the module’s power consumption?
A: No. The supplied information does not provide a specific power-consumption value. Engineers should consult the applicable DeltaV hardware documentation before sizing the system power load.

Field Installation Guidelines

• Install the module in the designated DeltaV hardware assembly and verify mechanical engagement before energizing the system.
• Confirm the module identification and associated KJ3001X1-BG1 part number against the system configuration.
• Route discrete output wiring separately from high-voltage and high-noise conductors where practical.
• Verify field-device voltage and load requirements before connecting output circuits.
• Use appropriate terminal assemblies and wiring methods specified for the installed DeltaV hardware revision.
• Connect cable shields according to the site’s grounding and instrumentation wiring standard.
• Inspect terminal connections for correct polarity, conductor termination, and mechanical tightness.
• Do not assume hot-swap capability unless the applicable DeltaV hardware documentation explicitly permits live replacement for the installed configuration.
