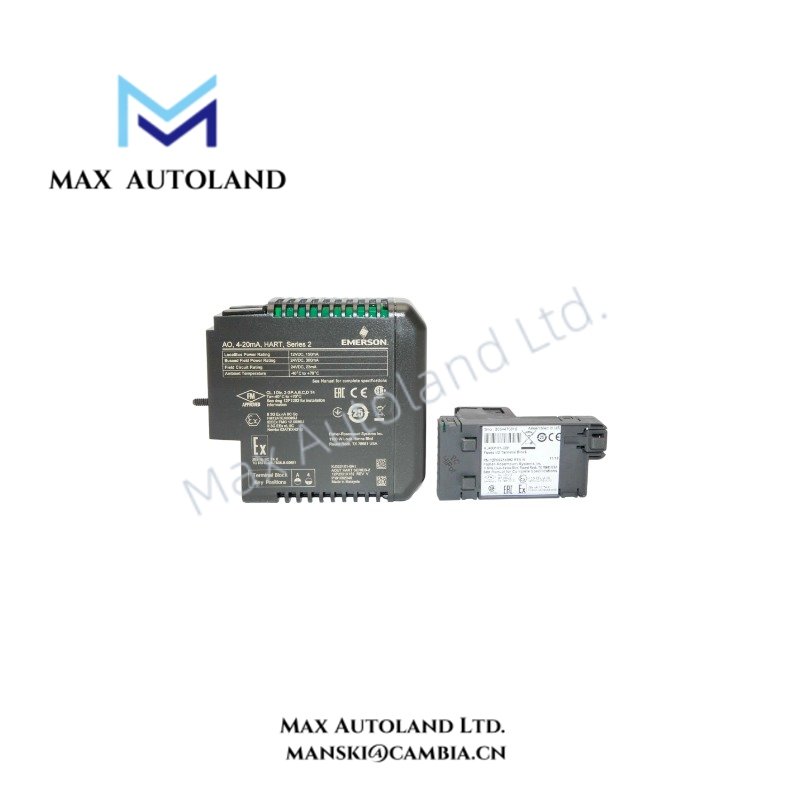

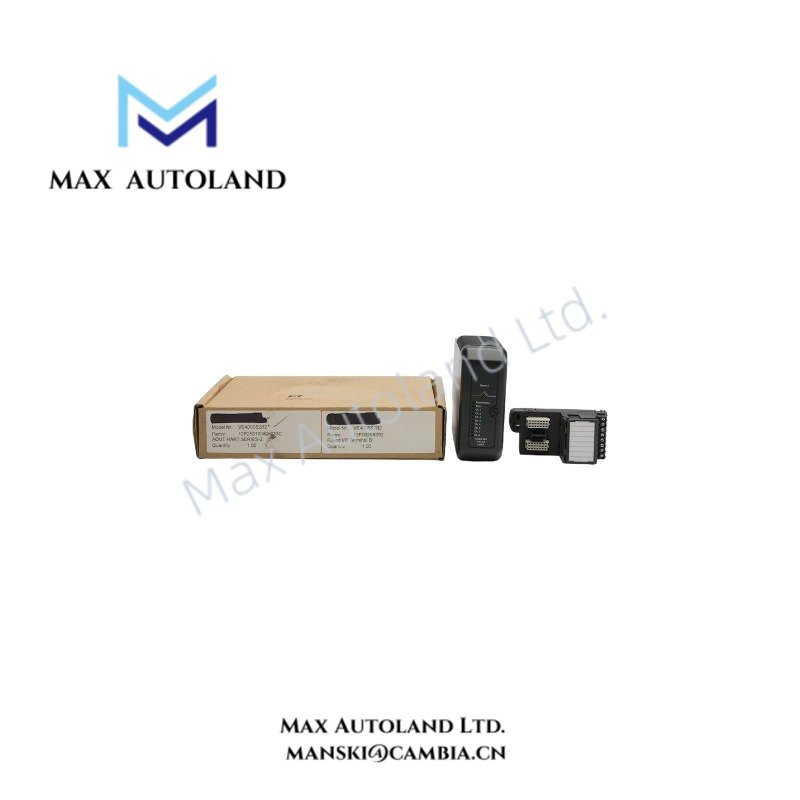

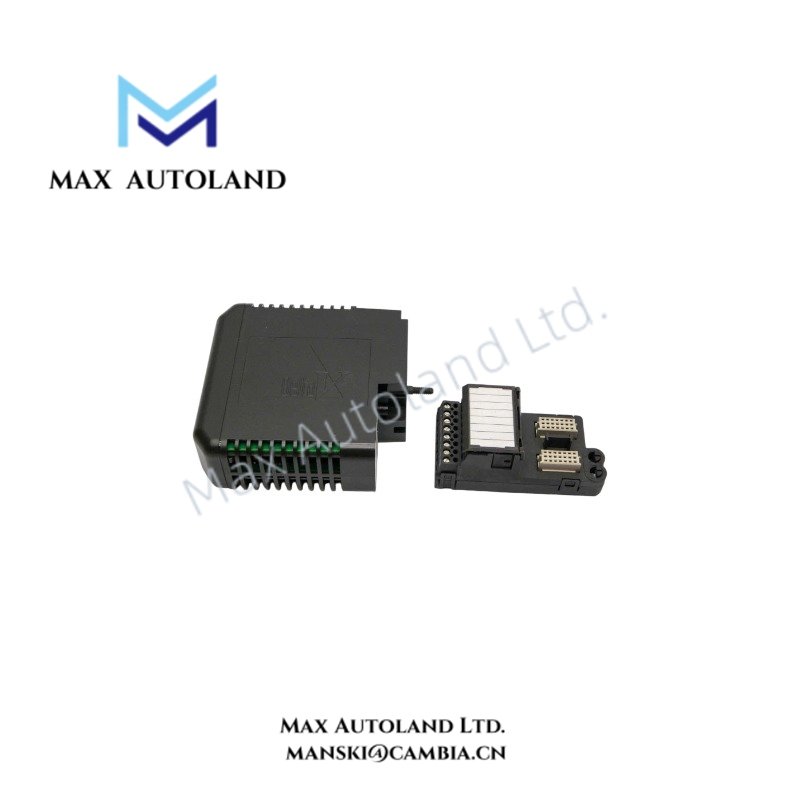

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | VE4005S2B2 |
| Brand | Emerson DeltaV |
| Product Type | Series 2 Analog Output Card |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Not specified |
| Channel Count | 8 analog output channels |
| Output Signal | 4-20 mA nominal, 1-23 mA full range |
| Communication Protocol | HART enabled |
| Resolution | 12 bit |
| Accuracy | +/- 0.25% of span over temperature range |
| Isolation | Optical isolation per channel, tested up to 1500 VDC/AC |
| Mounting Method | DeltaV carrier or standard I/O base assembly |
| Enclosure Rating | IP20 |
| Relative Humidity | 5% to 95%, non-condensing |
| Storage Temperature | -40 deg C to +85 deg C |
4-20 mA HART Loop and Channel Isolation Characteristics
The VE4005S2B2 processes digital output commands from the DeltaV controller and converts them into analog current signals for field devices. Each channel supports HART communication, allowing digital configuration and diagnostic information to transmit through the same current loop.
Furthermore, the module applies channel-level optical isolation to separate field-side circuits from internal control electronics. This design reduces the influence of ground potential differences and electrical interference between independent output channels.
The module supports standard HART loop communication used with process instruments, valve positioners, and other modulating field devices. Therefore, operators can access device parameters and diagnostics without interrupting the analog control signal.
Frequently Asked Questions
Q: Does the VE4005S2B2 support online replacement during system operation?
A: The module is designed for DeltaV hot-swap configurations when installed within a supported DeltaV carrier and system configuration. Replacement procedures must follow DeltaV maintenance instructions.
Q: How many analog output signals can the VE4005S2B2 generate?
A: The VE4005S2B2 provides 8 independent analog output channels, with each channel supporting a 4-20 mA current output.
Q: What communication method does the module use for field device diagnostics?
A: The module uses HART communication over the analog current loop to transfer configuration data and diagnostic information.
Field Installation Guidelines
Install the VE4005S2B2 on the designated DeltaV carrier or I/O base according to Emerson installation requirements. Verify that the module is correctly seated before applying system power.
Use shielded field wiring for analog signal connections where required by the installation environment. Connect cable shields according to site grounding practices to reduce electromagnetic interference.
Separate analog output wiring from high-voltage power cables and switching circuits. Confirm field device polarity, loop continuity, and HART communication compatibility before commissioning.
