Overview

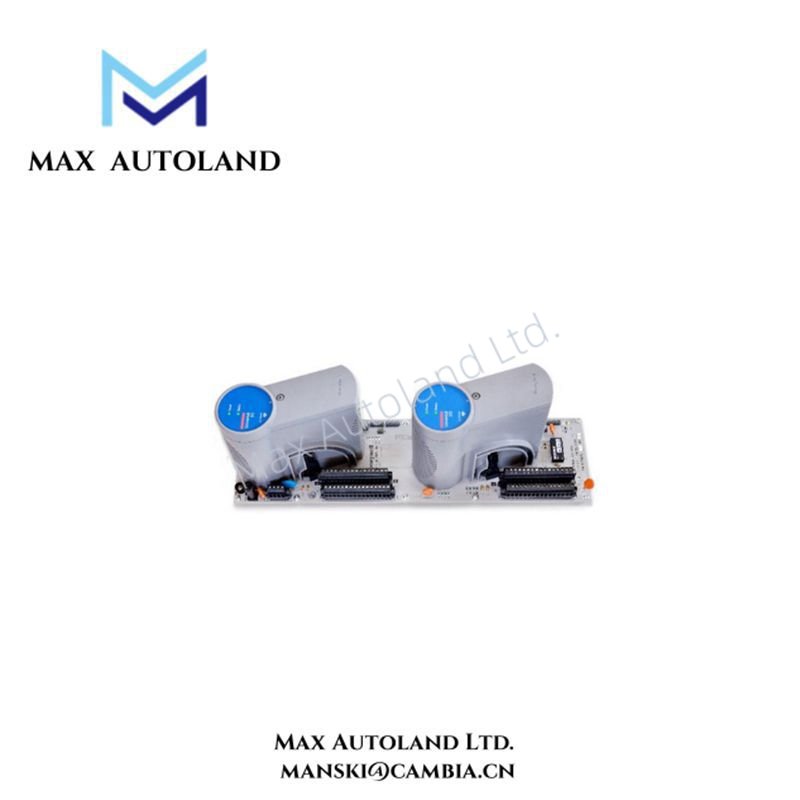

The Honeywell CC-TUIO41 is a Universal Input/Output (UIO) module designed for the Experion PKS Series C I/O system. It offers a high-density, hot-swappable solution for various analog and digital input/output applications. This module is particularly suitable for industries requiring robust and flexible control systems.
In virtually all configurations, the C300 controller and Series C I/O provides useful, maintainable process equipment connections in a smaller footprint than existing competitors and Honeywell equivalent products. Installing Series C I/O modules contributes to overall total installed cost savings. IOTA sizes vary based on the application. In general, an analog module has 16 points and resides on a 6 inch (152mm) IOTA for non-redundant applications and a 12 inch (304mm) IOTA for redundant applications. A discrete module has 32 points and resides on a 9-inch (228mm) IOTA for non-redundant applications and a 12 inch (304mm) IOTA for redundant applications.
Specification
| Parameter | Specification |
|---|---|
| Model | CC-TUIO41 |
| System Compatibility | Experion PKS Series C |
| Channels | 32 (configurable for AI, AO, DI, DO) |
| Analog Input Voltage Range | -10V to +10V |
| Analog Input Current Range | 4mA to 20mA |
| Analog Output Voltage Range | -10V to +10V |
| Analog Output Current Range | 4mA to 20mA |
| Digital Input Voltage Range | 0V to +5V |
| Digital Output Voltage Range | 0V to +24V |
| Operating Temperature | -40°C to +85°C |
Manual/Datasheet PDF
CC-TUIO41 Honeywell C300 Universal Input Output IOTA datasheet
