Overview

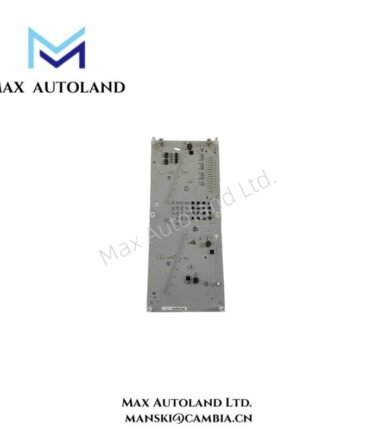

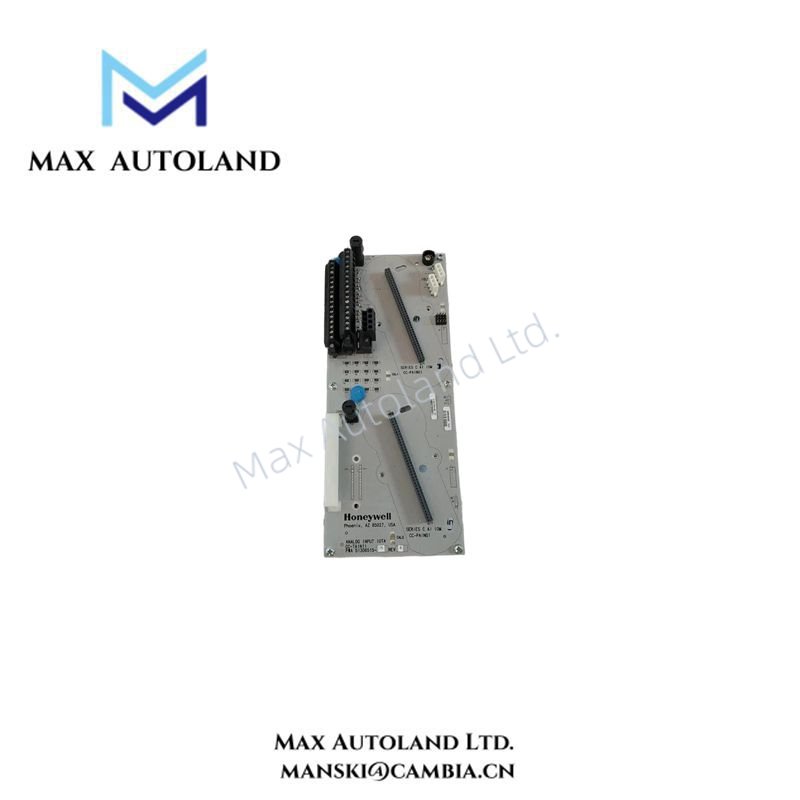

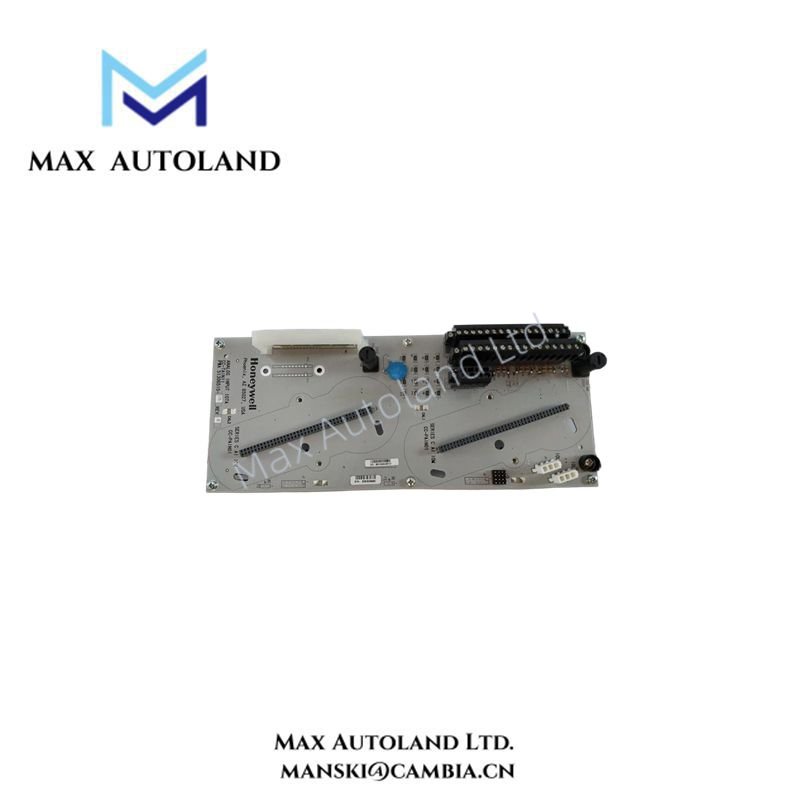

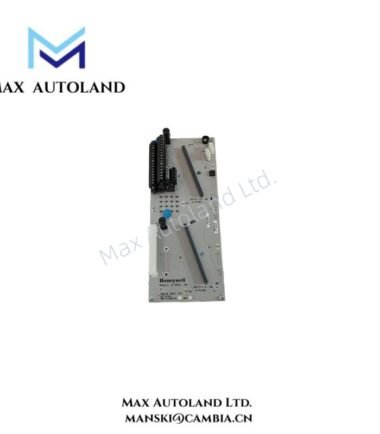

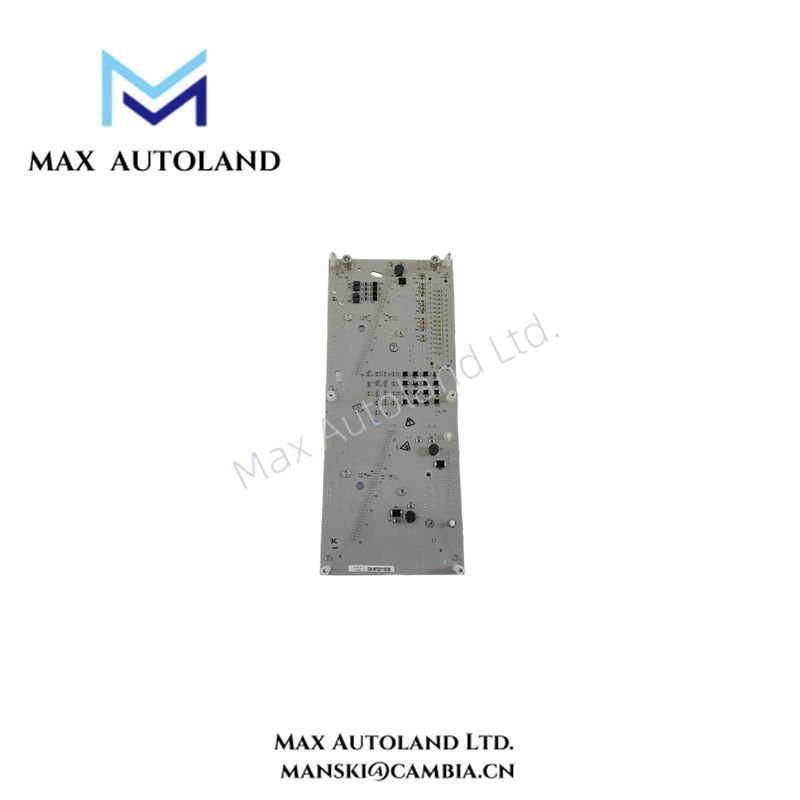

The CC‑TAIN11 module, a key component of Honeywell’s Experion Series C, provides highly reliable non-HART analog input measurements. This CC‑TAIN11 analog input module offers 16 channels and integrates seamlessly with classic two-wire transmitters, enabling operators to monitor temperature, pressure, and flow signals accurately in complex industrial environments. Furthermore, the non-HART AI IOM/IOTA supports all 16 channels without requiring special wiring or jumper configurations. Consequently, engineers can deploy the CC‑TAIN11 module efficiently while ensuring consistent, high-precision signal acquisition across the entire Experion Series C system.
The Analog Input Module accepts high-level current input from various sensing devices. Non-incendive power is provided internally with no external marshalling required to support the 4–20 mA loop, while still ensuring robust channel power protection. This advanced protection fully supports the Division 2 hazardous area non-incendive power rating, guaranteeing safe and reliable operation in industrial environments.
Specification
| Feature | Specification |
|---|---|
| Model | CC‑TAIN11 |
| Series | Experion Series C |
| Module Type | Non-HART Analog Input IOTA |
| Input Channels | 16 Analog Inputs |
| Signal Types | 4–20 mA, 0–10 V, 1–5 V, RTD |
| Wiring | Two-wire standard and self-powered transmitters |
| Terminal Blocks | TB1 and TB2, up to 14 AWG wire |
| Protection | Short circuit protection, Division 2 / Zone 2 |
| Redundancy | Non-redundant |
| Module Size | 6-inch |
| Weight | ~1.2 kg |
