Overview

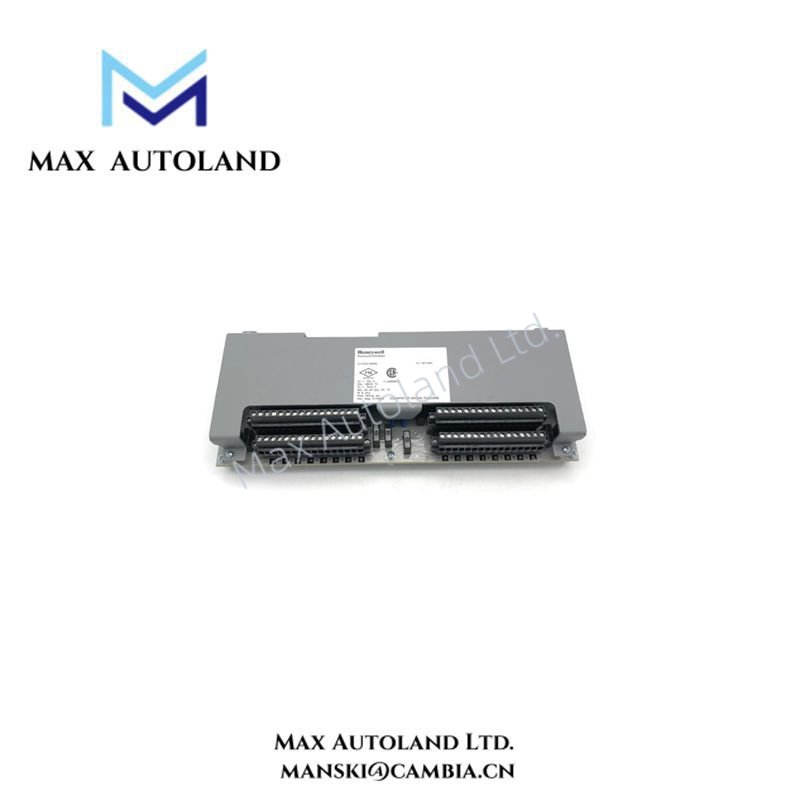

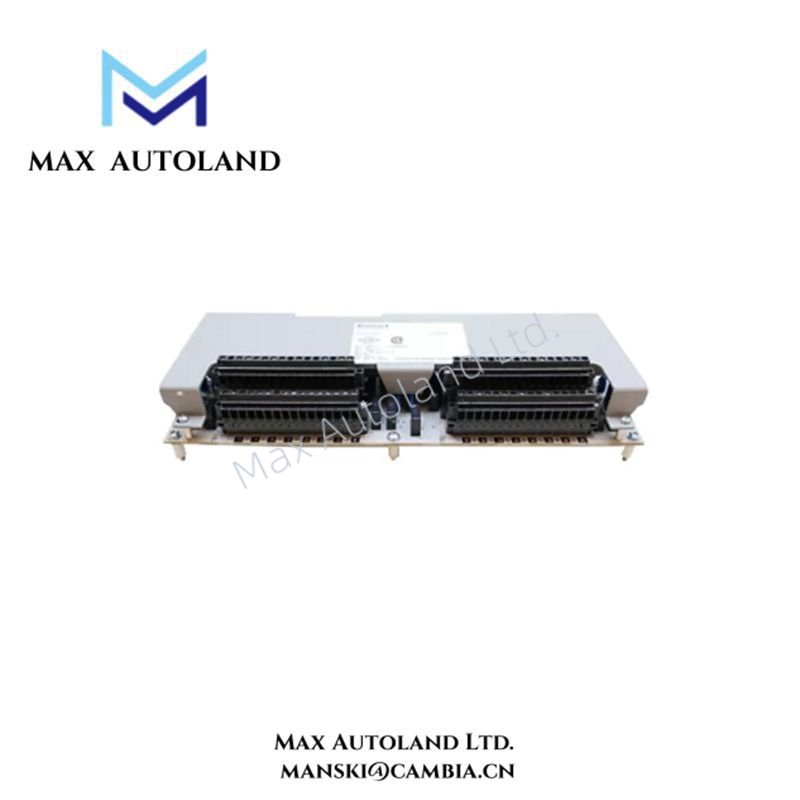

The Honeywell CC-SDOR01 is a 12-inch Digital Output Relay Extension that integrates directly with the C300 Input/Output Termination Assembly (IOTA) in the Experion® PKS Series C system. This module increases digital output capacity by providing 32 isolated Form A (SPDT) or Form B (SPST-NO) relay contacts, which control field devices such as motors, solenoids, and valves.
Each relay delivers a dry contact for isolated low-voltage/low-current or high-voltage/high-current discrete output applications. Users configure the relay output as Form A or Form B via jumpers. The Relay IOTA connects with the Digital Output 24V (DO24V) IOM through a dedicated IOTA to support Relay functionality. The module fully incorporates all characteristics of the DO24V IOM while enhancing output flexibility.
Specification
| Specification | Details |
|---|---|
| Model | CC-SDOR01 |
| Type | Digital Output Relay Extension |
| Compatibility | C300 IOTA (Experion PKS Series C) |
| Number of Outputs | 32 |
| Relay Type | Form A (SPDT) or Form B (SPST-NO) |
| Input Voltage | 24 VDC |
| Contact Rating | 3 A at 250 VAC / 3 A at 125 VDC (resistive load) |
| Switching Time | 10 ms |
| Life Expectancy | 100,000,000 operations |
| Isolation Voltage | 2500 VAC |
| Mounting | Designed for integration with C300 IOTA |
| Environmental Protection | IP20 |
| Operating Temperature | -40°C to +85°C |
| Humidity | 0% to 95% non-condensing |
| Dimensions (L x W x H) | 305 mm x 90 mm x 30 mm |
| Weight | Approximately 0.5 kg |
Manual/Datasheet PDF
CC-SDOR01 Honeywell C300 IOTA Model Relay Extension datasheet
