Overview

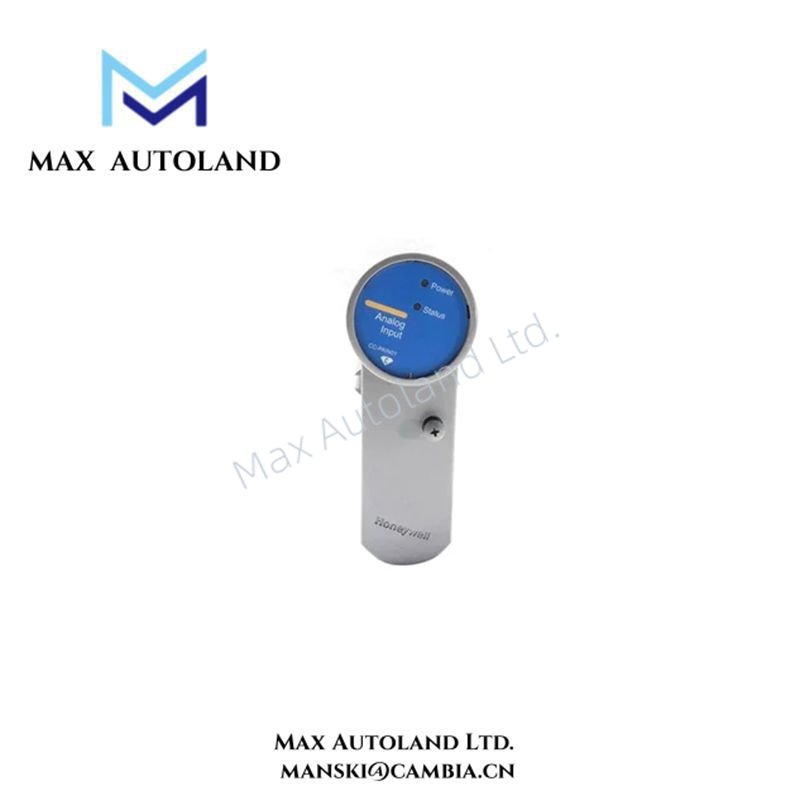

The Honeywell CC-PPIX01 Pulse Input Module (PIM) is designed for the Experion PKS C300 controller, enabling precise pulse signal acquisition in industrial automation systems. It supports both single and dual pulse input channels, offering flexibility for various applications.
The Pulse Input Module (PIM) provides the Experion C300 controller with the ability to monitor various pulse input field values. The PI module processes signals from pulse-generating devices and provides a calculated rate and an accumulated total. The PI supports a “fast cutoff” capability to stop dosing operations when the threshold has been met. High-accuracy and repeatable measurement capability make the PIM well suited for metering and custody transfer applications. This module is specifically engineered to support the MeterSuite Custody Transfer Application including support for dual pulse per ISO6551. Implementation of ISO-6551/API 5.5 for dual pulse inputs, including Level A, pulse integrity.
Specification
| Parameter | Specification | ||
| Input/Output Model | CC-PPIX01-Pulse Input | ||
| IOTA Model | CC-TPIX11 | Redundant | 12″ |
| Number of Inputs | 8(Single)or4(Dual) Supports Mixed Combination of Single/Dual Input Channels | ||
| Number of Outputs | 2 | ||
| Input type | High-impedance,differential voltage, opticallyisolated(1000 VDC) | ||
| Frequency Range | 0-100 KHz Single Channel 0-10 KHz Dual Pulse Channel | ||
| Frequency Accuracy(0.5Hz-100 KHz) | +1-0.001%of Reading | ||
| Input Voltage(Independent of Input Voltage Range) | 0 to 35 VDC | ||
| Input Voltage Trip Points | High Setting:Low to High:8.4V;High to Low:7.7V Low Setting:Low to High:2.8V;High to Low:2.0V | ||
| Input Edge Selection | Configurable:Rising Edge(Default)or Falling Edge | ||
| Channel Input Impedance | Greater than 70 K Ohms | ||
| Input Channel Function | Frequency(PV),Accumulated Value(AV),Pulse Width High,Pulse Width Low,Period | ||
| lsolated/Bussed Input Jumper Option | lsolated or bussed configuration selection per channel | ||
| Internal/External Excitation | Power connection can support internal 24V operation or an external (user supplied)excitation voltage +5 to+30Vdc | ||
