Overview

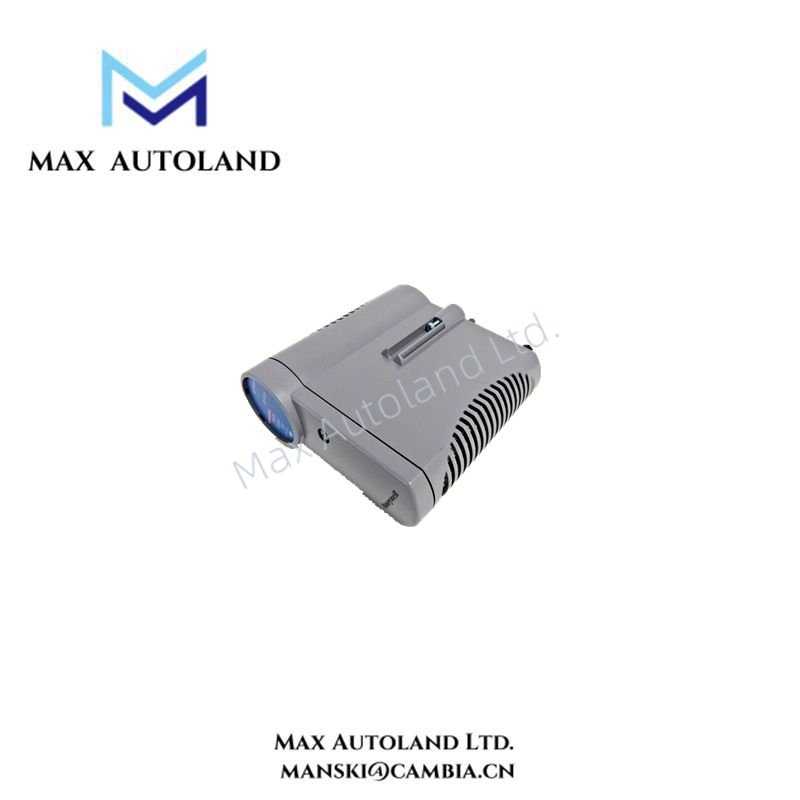

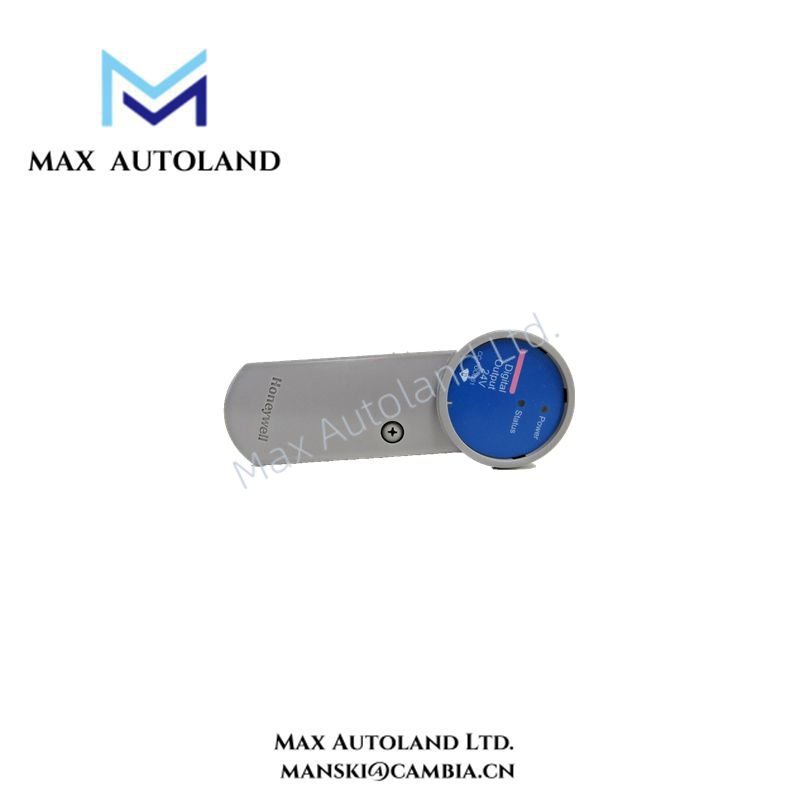

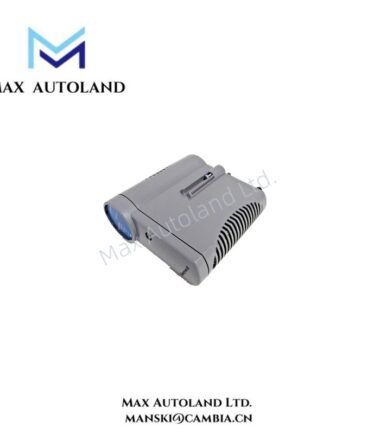

Honeywell’s CC-PDOD51 functions as a robust sink-type digital output module in the Experion PKS Series C I/O ecosystem. It offers 32 output channels with open-drain (sink) configuration, complemented by built-in diagnostics, electronic overcurrent protection, and configurable safe-state (FAILOPT) behavior per channel. This module supports both internal and external 24 VDC field power and optionally operates in redundant configurations, maintaining seamless control in demanding automation environments.

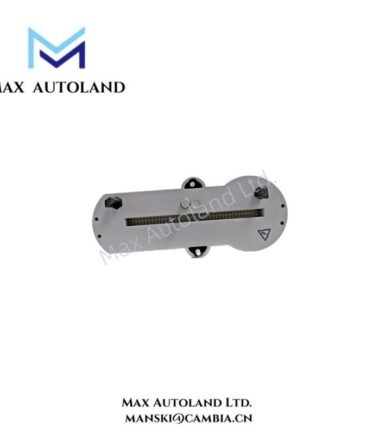

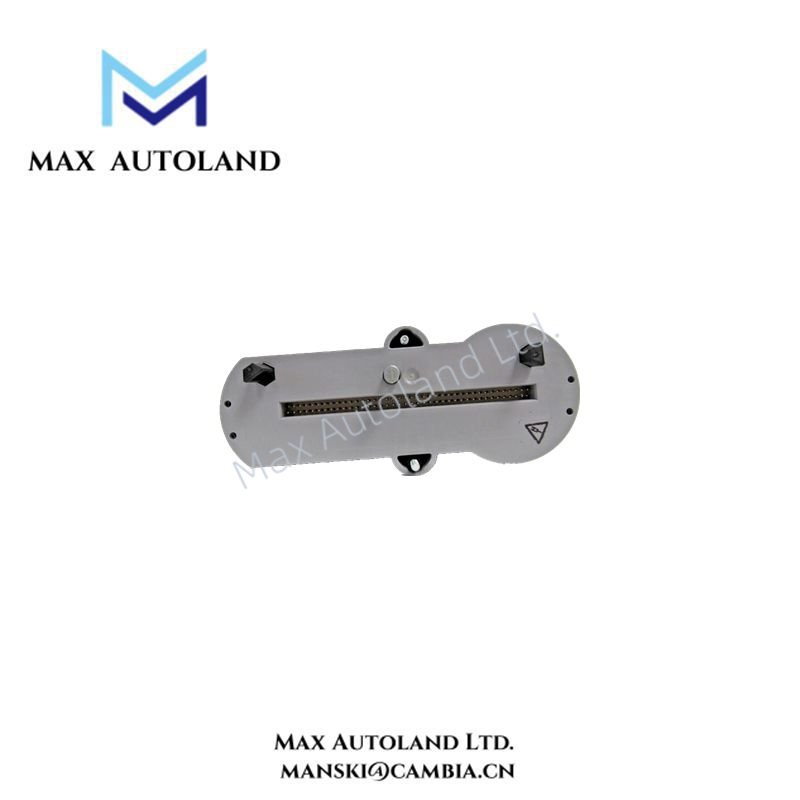

The Digital Output Bussed 24VDC has provisions for both internal and external field power excitation. As a bussed output device, all of the outputs share a common return (ground). All outputs get their power from the same source, which can be either the system power supply or an externally connected 24V power supply. When selection is from an external source, outputs can be galvanically isolated from the Series C power system. A wiring option on the IOTA
determines if outputs are referenced to the Series C system power or an external field power source.
Specification
| Parameter | Specification | ||
| Input/Output Model | CC-PDOD51-24Volt Digital Output,Field Isolated,Bussed output,Coated | ||
| IOTA Model Numbers | CC-TDOD51 | Non Redundant | 9″ |
| CC-TDOD61 | Redundant | 12″ | |
| Output Channels | 32 | ||
| Output Type | SINK (Open Drain) | ||
| Load Voltage 15 | 30 VDC Maximum | ||
| Load Current | 0.1A per channel(Max) | ||
| Galvanic Isolation | 1000 VAC RMS for System-to-Field isolation (user supplied field Power) | ||
| On-State Voltage | OV VDC(load current @0.1A max) | ||
| Off-State Voltage | 24V(typ), | ||
| Off-State Leak Current | 100 μA(max) | ||
| Turn-On/Turn-Off Time | 10 ms(max) | ||
| Gap(0 current)of Output to Field on Switchover | None(0ms)(applies to Redundancy only) | ||
Manual/Datasheet PDF
CC-PDOD51 Honeywell C300 Digital Output – SINKTYPE 24VDC datasheet
