Overview
Technical Specifications
| Parameter | Specification |
|---|---|

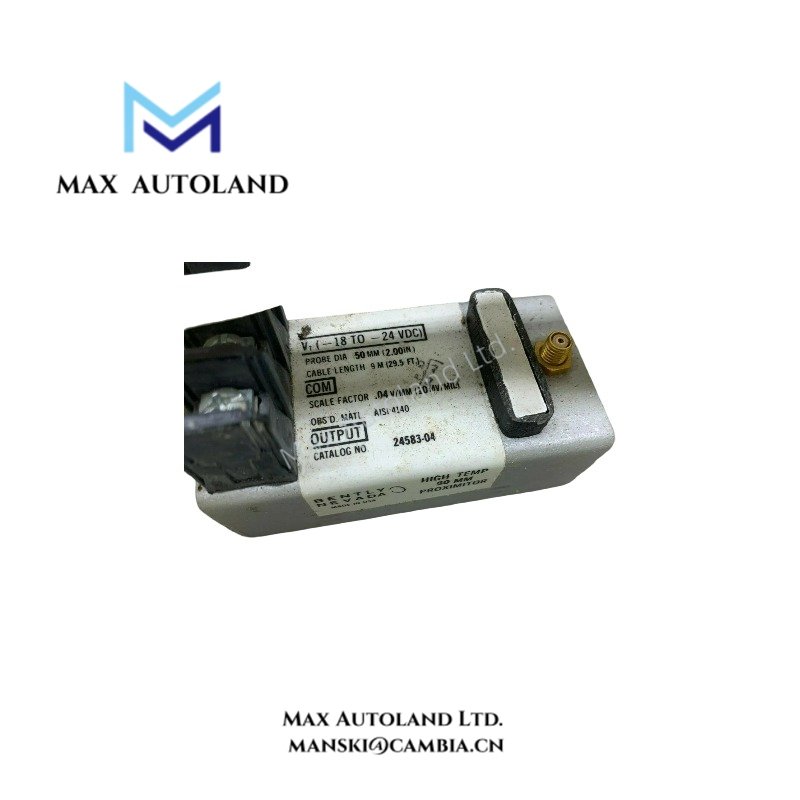

| Model | 24583-04 |
| Brand | Bently Nevada |
| Product Type | High-Temperature Proximitor Sensor |
| Operating Temperature | Up to 538 deg C (1000 deg F) |
| Probe Length | 50 mm (2 in) |
| Weight | 0.64 lb |
| Power Requirement | -17.5 VDC to -26 VDC, nominal -24 VDC |
| Linear Range | Approximately 2.0 mm (80 mils), with a stated offset of 0.25 mm (10 mils) |
| Frequency Response | DC to 10 kHz |
| Output | Analog signal proportional to measured vibration or position |
Operating Principle
A proximity measurement system detects changes in the distance between a probe and a conductive target without requiring physical contact. In machinery monitoring, the resulting electrical signal can represent shaft displacement or relative vibration, depending on the installed transducer system and its calibration.
The sensor, probe, extension cable, and monitoring input must operate as a compatible measurement chain. Confirm the required probe type, cable configuration, target material, and signal scaling before using this model as a replacement for an installed unit.
Frequently Asked Questions
Q: Can the 24583-04 be used in continuous high-temperature service?
A: The supplied description states a temperature capability of up to 538 deg C. However, it does not establish whether this rating applies to the probe, sensor electronics, or complete measurement system. Verify the temperature rating of each component before installation.
Q: Is the 24583-04 compatible with 3300 XL Proximitor systems?
A: Compatibility with 3300 XL systems has not been confirmed for this exact model. Check the original part number, probe and cable requirements, electrical characteristics, and monitoring system specifications before selecting it as a replacement.
Q: What should be checked before replacing an existing sensor?
A: Compare the complete model number, operating temperature limits, power supply, linear measurement range, output characteristics, and probe configuration. The replacement must meet the installed system’s electrical and mechanical requirements.
