Overview

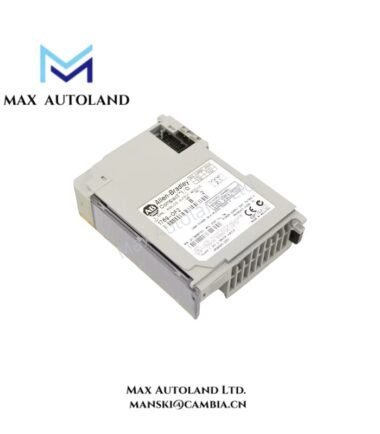

Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-OF2 |
| Brand | Allen-Bradley |
| Product Type | Analog Output Module |
| Product Line | CompactLogix |
| UPC | 662468992947 |
| Number of Outputs | 2 |
| Output Type | Analog voltage and current |
| Voltage Output Ranges | -10 to 10 VDC, 0 to 10 VDC, 0 to 5 VDC, 1 to 5 VDC |
| Current Output Ranges | 0 to 20 mA, 4 to 20 mA |
| Converter Type | Sigma-Delta |
| Maximum Conversion Rate | 2.5 ms for all channels |
| Heat Dissipation | 2.63 W |
| Open-Circuit Protection | Included |
| Short-Circuit Protection | Included |
| Output Overvoltage Protection | Included |
| Module Status Indicator | LED |
| Nameplate Label | Included |
| Bus Lever | Locking function |
| Listed Weight | 0.56 lb (0.26 kg) |
| Alternative Weight Entry | 0.18 kg |
| Estimated Shipping Dimensions | 3.8 x 8.7 x 13.1 cm |

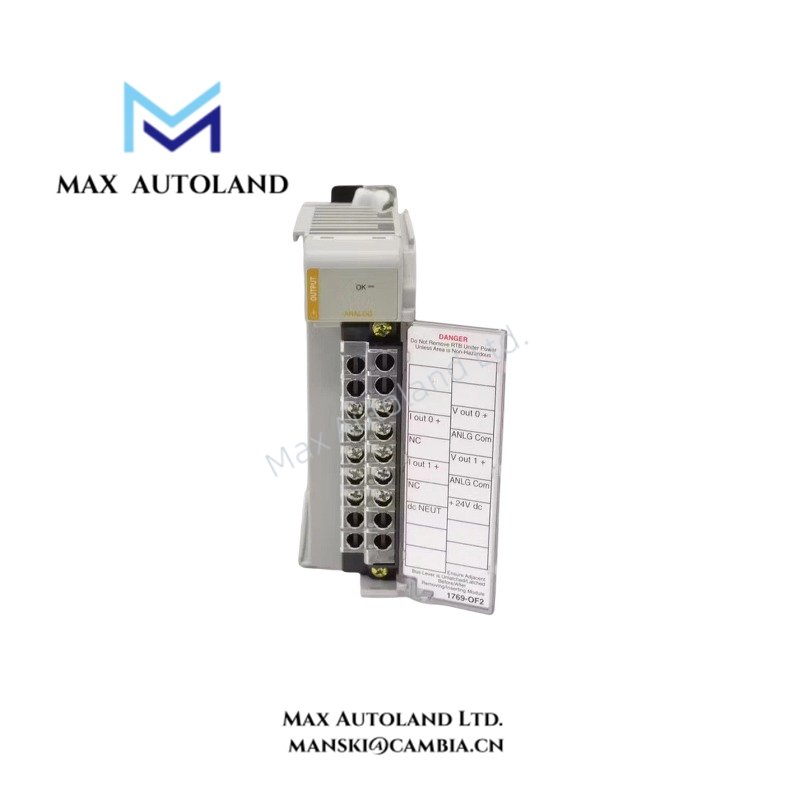

Analog Output Functions
The 1769-OF2 provides two analog output channels for transmitting control signals to compatible field devices. Voltage output ranges support different signal requirements, while current ranges include 0-20 mA and 4-20 mA. The selected signal type and range must match the receiving device and the intended control configuration.

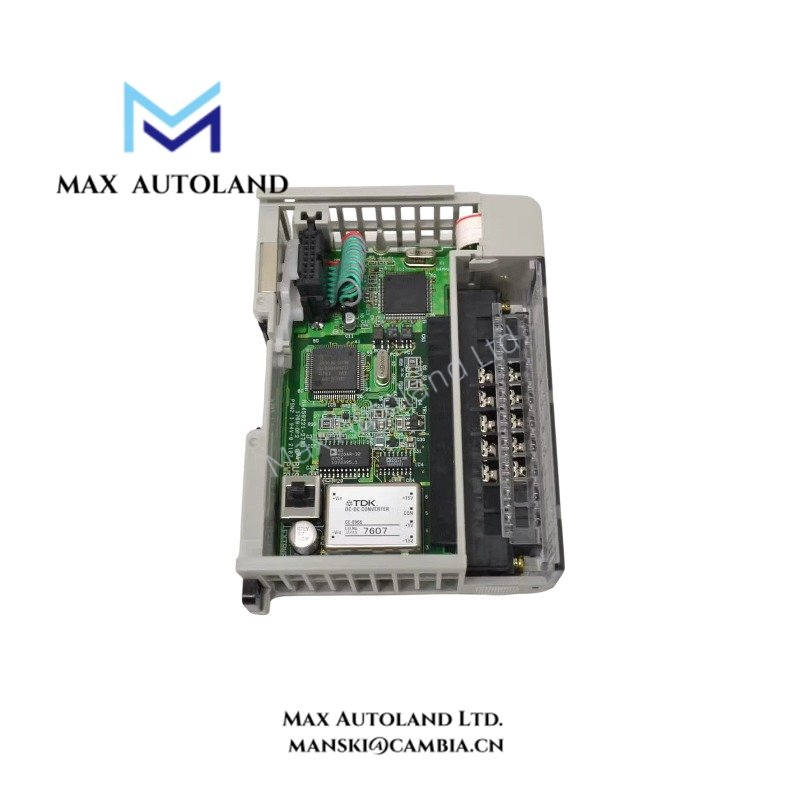

The Sigma-Delta conversion method translates digital output values into analog signals. The specified maximum conversion rate is 2.5 ms for all channels. This parameter describes conversion timing and should not be interpreted as a guarantee of the complete control-loop response time.

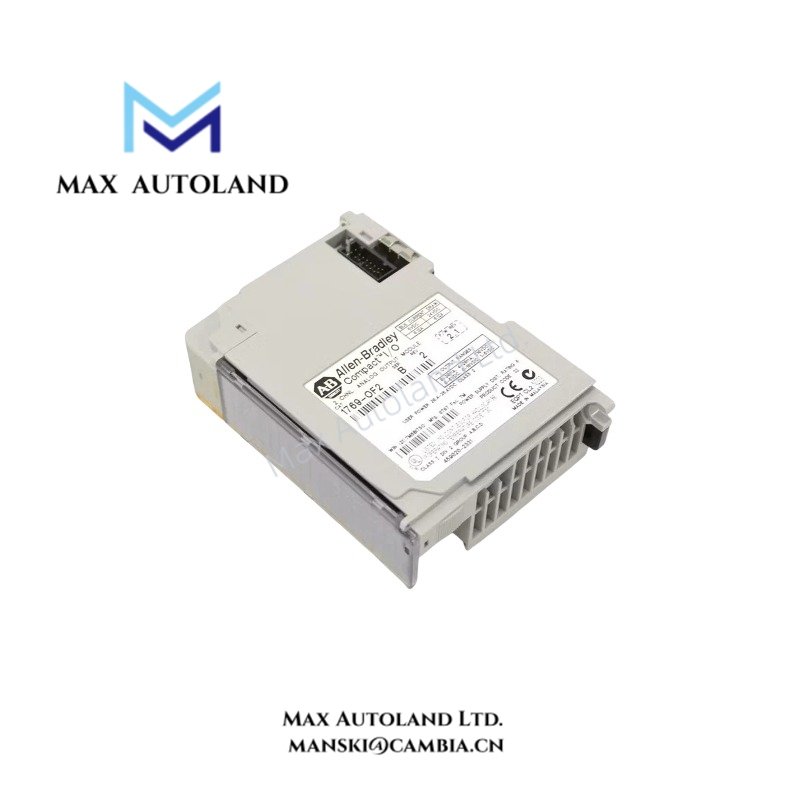

Protection and Module Identification
The module includes open-circuit, short-circuit, and output overvoltage protection. These features address specific electrical fault conditions, but they do not eliminate the need to verify wiring, load requirements, and permitted operating conditions.
The status LED supports visual identification of module status. The locking bus lever and nameplate label also help with module identification and physical assembly.
Frequently Asked Questions
Q: What output signals does the 1769-OF2 support?
A: The module supports voltage outputs of -10 to 10 VDC, 0 to 10 VDC, 0 to 5 VDC, and 1 to 5 VDC. It also supports current outputs of 0 to 20 mA and 4 to 20 mA.
Q: How many analog output channels are available?
A: The 1769-OF2 provides two analog output channels. Confirm the required signal type, output range, and receiving-device specifications before selecting the configuration.
Q: What protection features are included?
A: The module includes open-circuit, short-circuit, and output overvoltage protection. These features do not replace proper wiring practices or verification of electrical operating limits.
