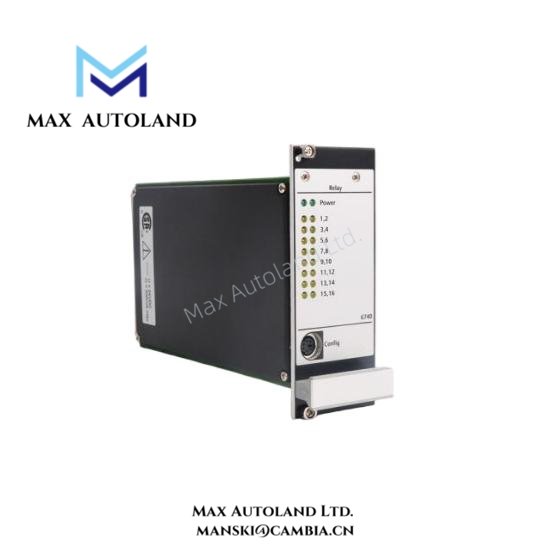

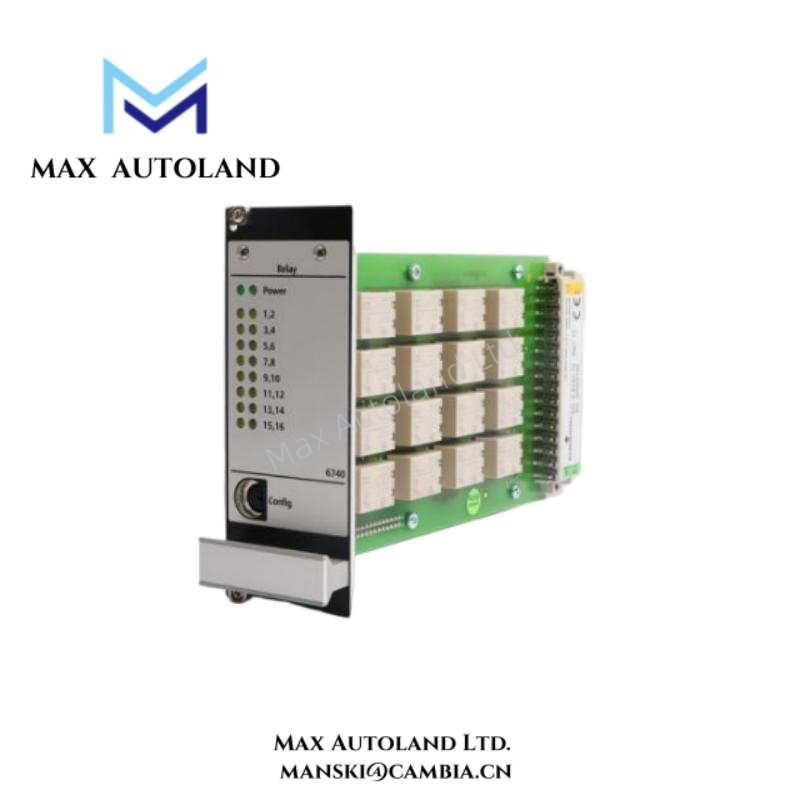

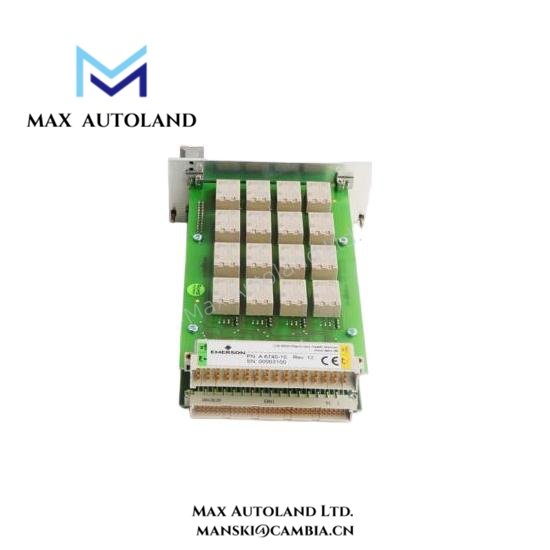

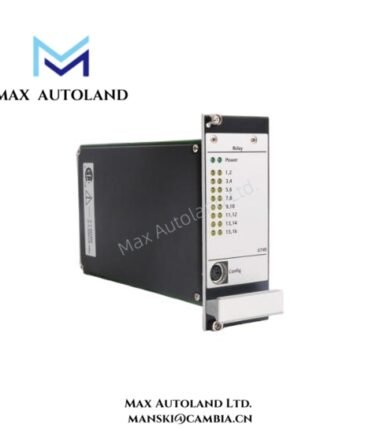

Overview
Specification
| Parameter | Specification / Description |
|---|---|
| Number of Channels | 16 relay outputs |
| Relay Type | Single Pole Double Throw (SPDT), mechanical, API 670 compliant |
| Contact Load | 48 V, 1 A |
| Control Voltage | 13–32 V DC |
| Logic Expressions | Up to 30 definable per module; AND, OR, 2 out of 3, AND-OR supported |
| Inputs | 60 inputs (Channel Clear, Alert, Danger, slot 1 and 2) |
| Time Delay | 0–30 seconds |
| Module Width | 10 TE (A6740-10), 12 TE (A6740) |
| Module Height | 3 HE (128.4 mm) |
| Module Length | 160 mm |
| Net Weight | 320 g |
| Gross Weight | 450 g |
| Operating Temperature | 0–65 °C |
| Storage / Transport Temperature | -40–70 °C |
| Relative Humidity | 5–95%, non-condensing |
| Vibration | IEC 68-2 part 6, 10–55 Hz: 0.15 mm, 55–150 Hz: 19.6 m/s² |
| Shock | IEC 68-2 part 29, 16 ms, 9.98 g peak |
| EMC Compliance | EN50081-1 / EN50082-2 |
| Power Consumption | Max. 6 W |
| Configuration | Password protected |
FAQ
A1: Yes, it integrates fully with AMS 6500 systems to provide real-time machinery protection monitoring.Q2: How many logic expressions can the module handle?
A2: The module supports up to 30 definable Boolean logic expressions per module.
Q3: Is the module hot-swappable during operation?
A3: Yes, the 2-slot module can be replaced without shutting down the system, reducing downtime.
Q4: What type of relays does the module use?
A4: It uses SPDT mechanical relays, fully compliant with API 670 standards for critical machinery protection.
Q5: What is the maximum contact load for each relay?
A5: Each relay can handle a maximum load of 48 V DC at 1 A.
Q6: What are the environmental operating conditions?
A6: The module operates reliably between 0–65 °C, with 5–95% non-condensing humidity, and withstands vibration and shock.
