Overview

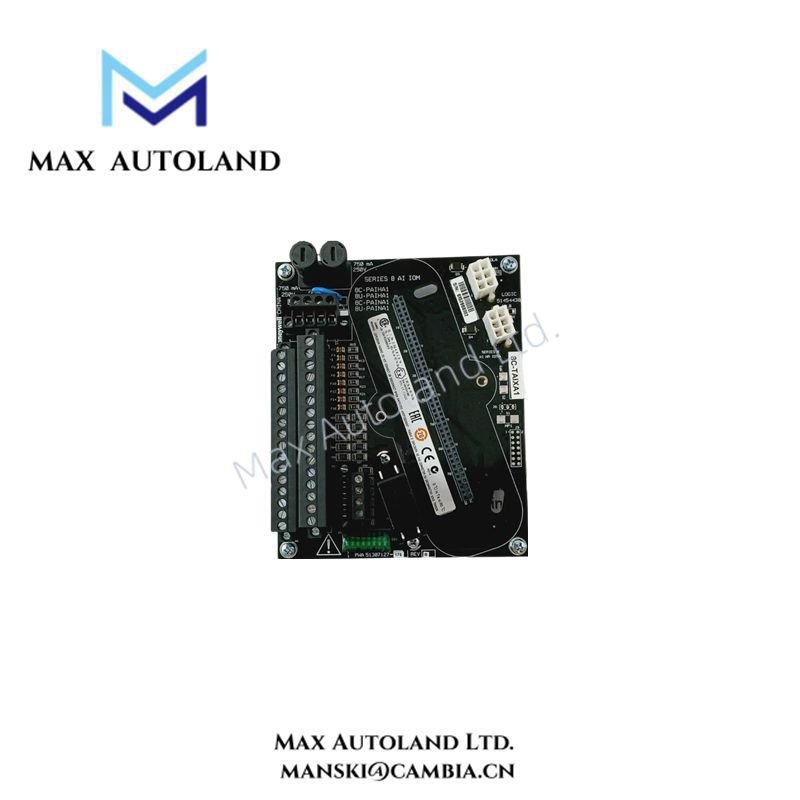

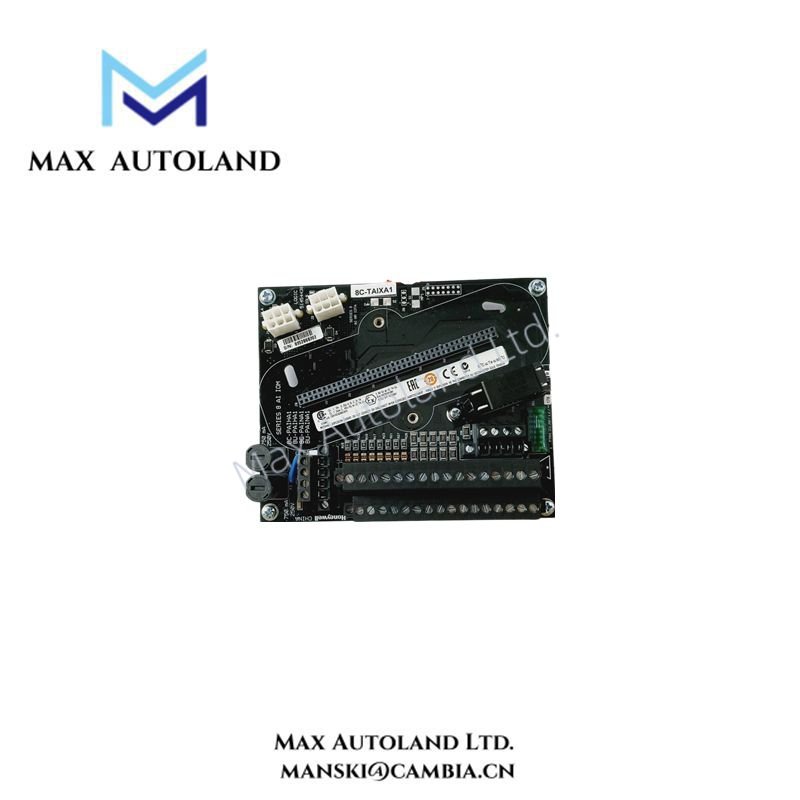

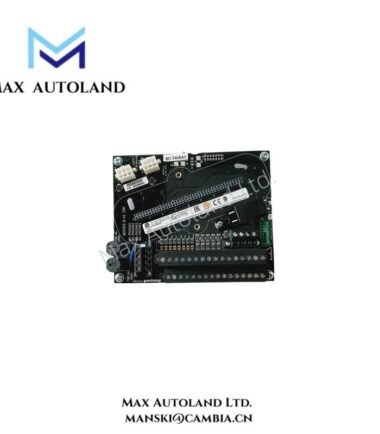

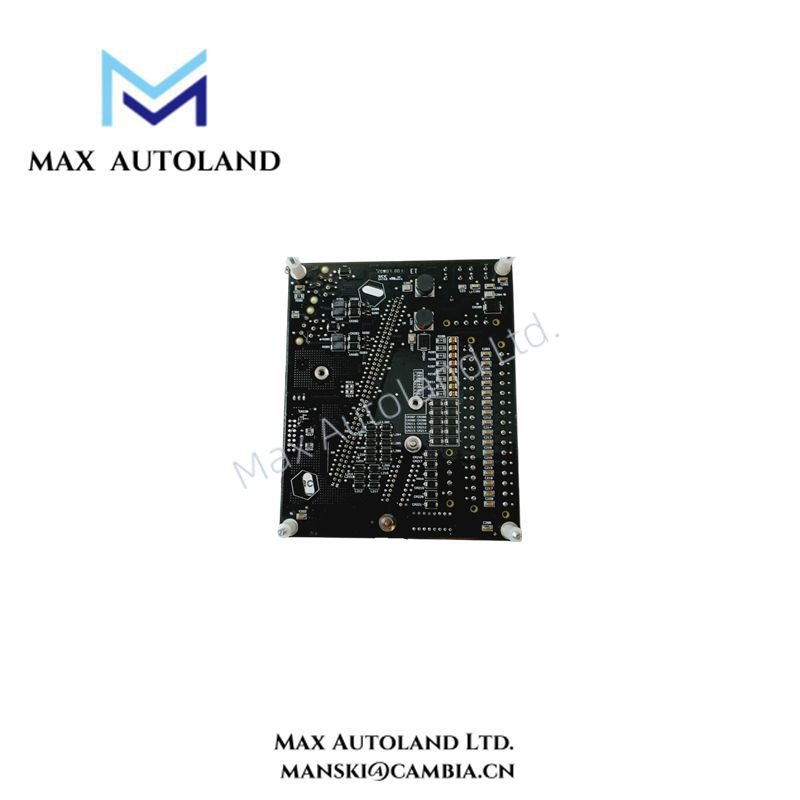

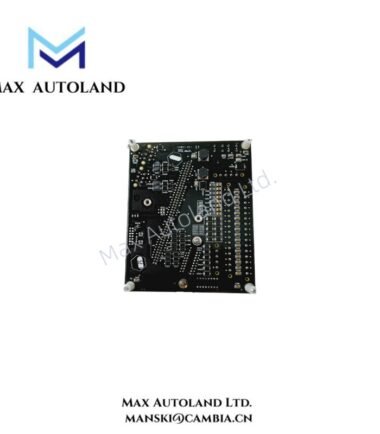

The Honeywell 8U-TAOXA1 is a C300 Analog Output IOTA designed for the Experion LX and Experion PKS platforms. It delivers reliable analog signal transmission to field devices, ensuring stable system integration and precise process control. This module optimizes performance by supporting multiple output channels and maintaining high accuracy under industrial operating conditions.
Series 8 AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel to either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOM device electronics fails.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 8U-TAOXA1 |
| Manufacturer | Honeywell |
| Series | C300 / Experion LX |
| Module Type | Analog Output IOTA |
| Supported Controllers | Honeywell C300 Controller |
| Output Channels | 8 independent analog output channels |
| Signal Type | 4–20 mA or 0–20 mA DC |
| Load Resistance | Up to 750 Ohms |
| Power Supply | 24 V DC nominal |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Dimensions (L × W × H) | 160 mm × 25 mm × 120 mm |
| Weight | 0.42 kg (0.93 lb) |
| Operating Temperature | –20°C to +70°C |
| Humidity Range | Up to 95% RH, non-condensing |
| Compliance | CE, UL, CSA, RoHS |
| Core Function | Provides accurate and stable analog output to field instruments |
