Overview

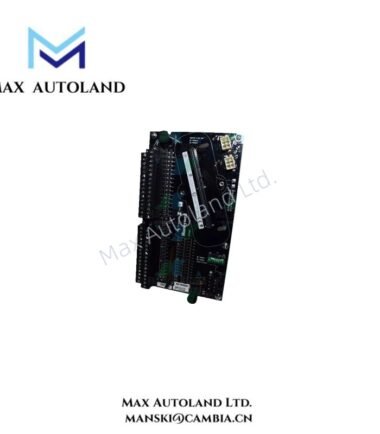

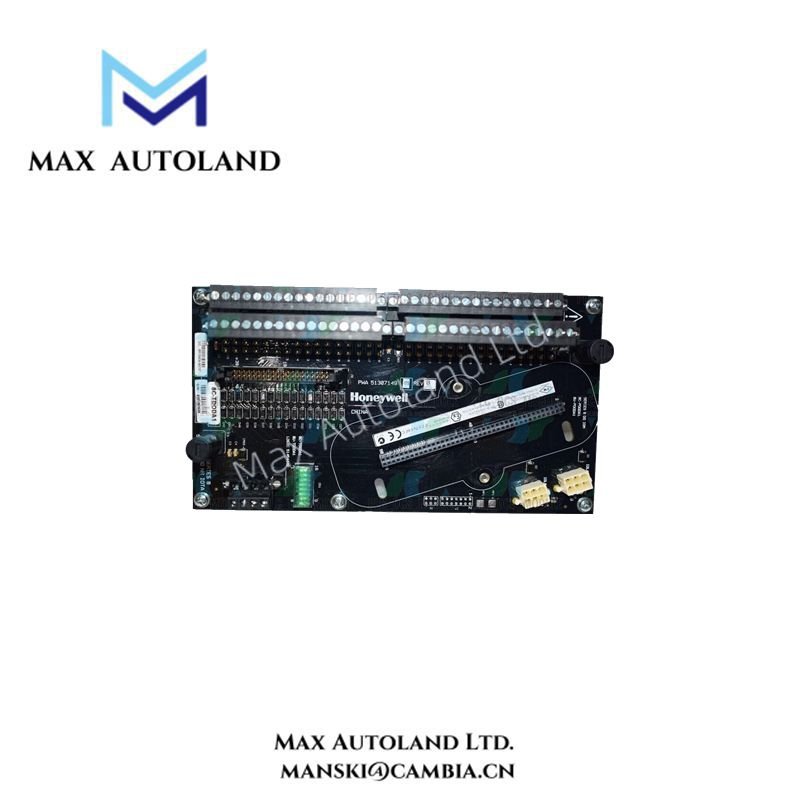

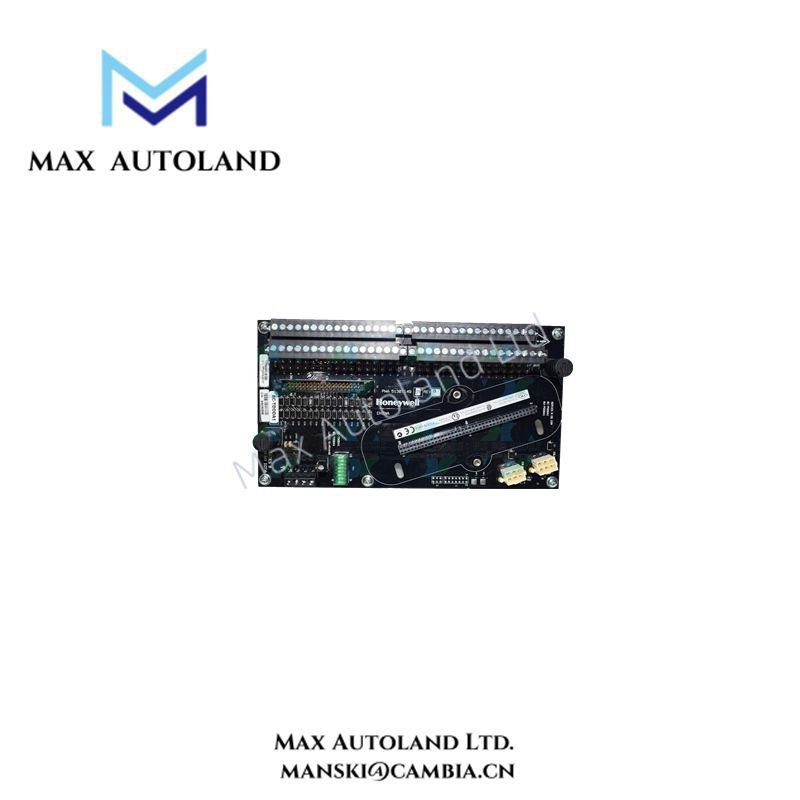

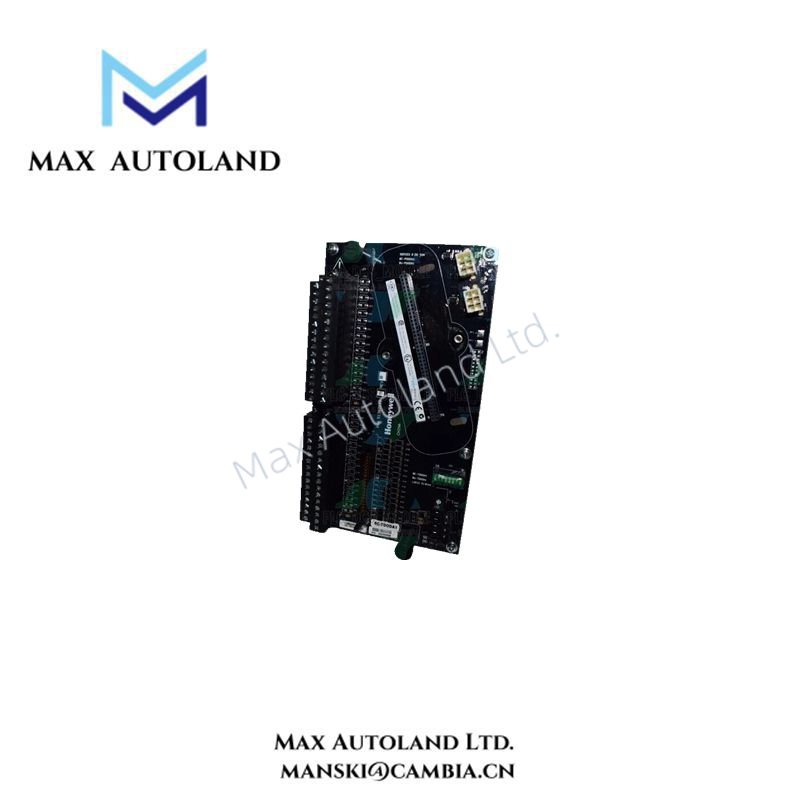

The Honeywell 8C-TDODA1 51307149-175 is a 32-channel, 24V DC digital output module designed for the Honeywell C300 Controller, part of the Series 8 I/O family. This module efficiently converts digital control signals from the controller into reliable on/off outputs for industrial automation applications, ensuring seamless integration and operation within process control systems.
The Digital Output Bussed 24VDC has provisions for both internal and external field power excitation. As a bussed output device, all of the outputs share a common return (ground). All outputs get their power from the same source,
which can be either the system power supply or an externally connected 24V power supply. When selection is from an external source, outputs can be galvanically isolated from the Series 8 power system.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 8C-TDODA1 51307149-175 |
| Manufacturer | Honeywell |
| Input Voltage | 24V DC (nominal) |
| Number of Outputs | 32 discrete outputs |
| Output Type | Source (sourcing outputs) |
| Output Voltage Range | 24V DC |
| Load Voltage | Up to 30V DC |
| Load Current | 100 mA per output (max), 3.2 A per module (max) |
| Module Current Rating | 105 mA |
| Galvanic Isolation | 1000 VAC RMS |
| Turn-On/Turn-Off Time | 10 ms (maximum) |
| Mounting | 9-inch IOTA base |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –55°C to +85°C |
| Humidity | 0–95% RH, non-condensing |
| Weight | Approximately 0.3 kg |
Manual/Datasheet PDF
Honeywell Series 8 Controller and IO Specification
