Overview

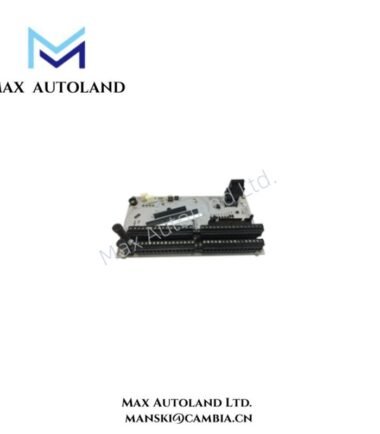

The Honeywell CC-TCNT01 is an Input/Output Termination Assembly (IOTA) designed for the Honeywell C300 Controller. This module serves as the critical interface between the controller and field devices, ensuring reliable signal transmission and power distribution. It is integral to the Experion PKS and Series 8 control systems, facilitating seamless integration with various I/O modules.
Specification
| Parameter | Specification |
|---|
| Model Number | CC-TCNT01 |
| Manufacturer | Honeywell |
| Dimensions (L×W×H) | 120 mm × 80 mm × 40 mm |
| Weight | 0.22 kg |
| Operating Voltage | 12–36 V DC |
| Power Consumption | 24 V DC, 0.311 A |
| Signal Types | Analog (4–20 mA, 0–10 V), Discrete (24 V AC/DC) |
| Isolation | 2500 V AC |
| Operating Temperature | -40°C to 85°C |
| Mounting | DIN rail |
| Redundancy Support | Yes |
| Certification | CE, UL |
