Overview

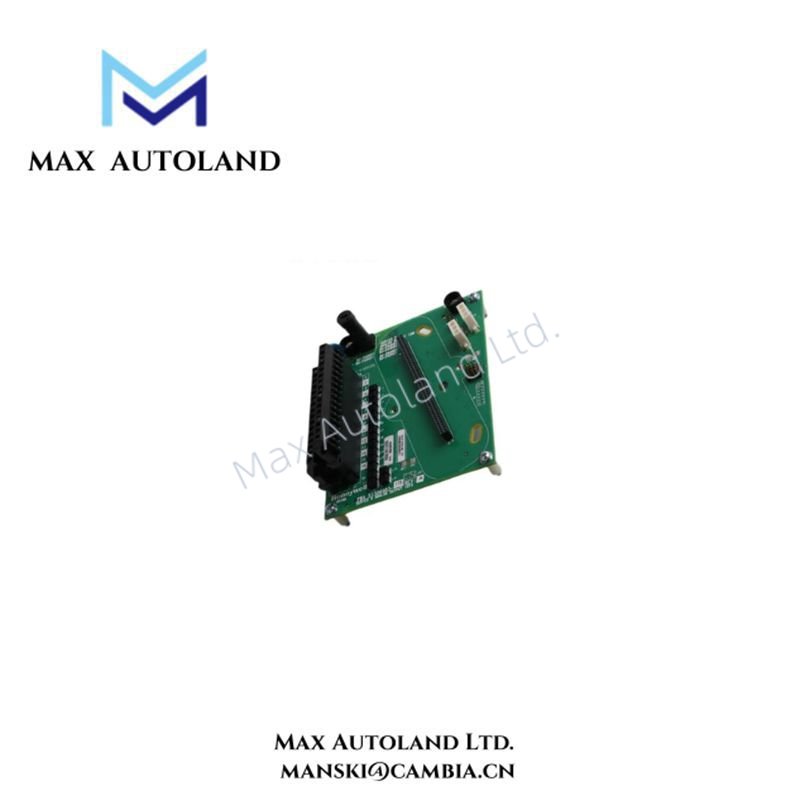

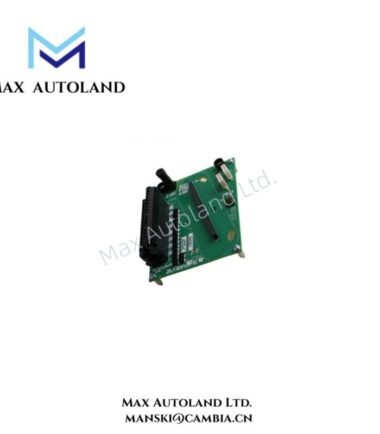

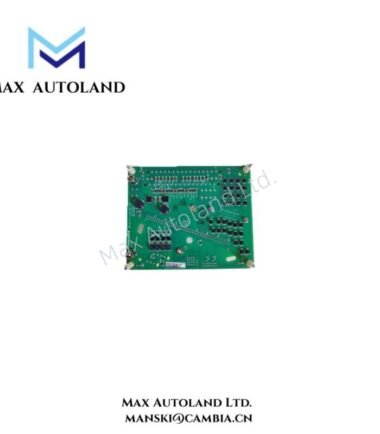

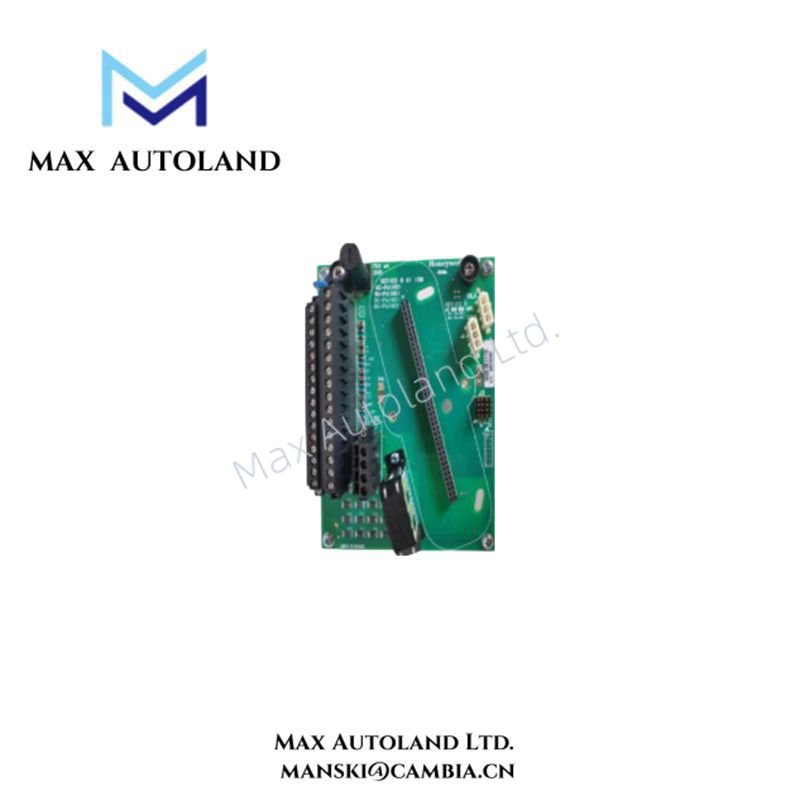

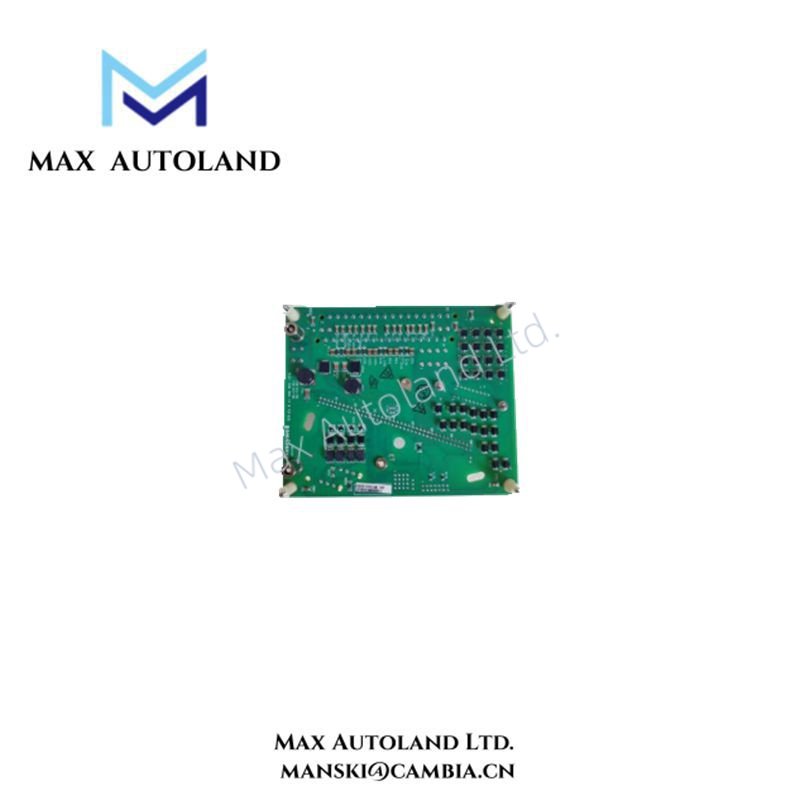

The Honeywell 8C-TAOX51 is a coated Analog Output I/O Termination Assembly (IOTA) designed for the Experion C300 controller within the Series 8 platform. This module provides 16 channels of analog output, supporting HART communication, and is suitable for applications requiring precise analog signal control in industrial automation systems.
In virtually all configurations, the C300 controller and Series 8 I/O provides useful, maintainable process equipment connections in a smaller footprint than competitor systems. Installing Series 8 I/O modules contributes to overall total installed cost savings.
Specification
| Attribute | Specification |
|---|---|
| Model Number | 8C-TAOX51 |
| Manufacturer | Honeywell |
| Series | Experion Series 8 |
| Module Type | Analog Output IOTA (Coated) |
| Channels | 16 |
| Output Type | 0–22.5 mA (including HART modulated signal) |
| HART Communication | Yes |
| Coating | Conformal Coating Applied |
| Power Supply | 24V DC nominal (20–30 V DC range) |
| Power Consumption | Maximum 2.4 W |
| Mounting Type | DIN Rail or Panel via IOTA Base |
| Dimensions (L × W × H) | 14.5 × 12 × 6.5 cm |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –55°C to +85°C |
| Weight | Approximately 0.5 kg |
Manual/Datasheet PDF
