Overview

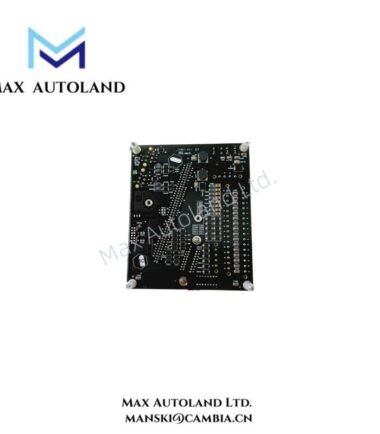

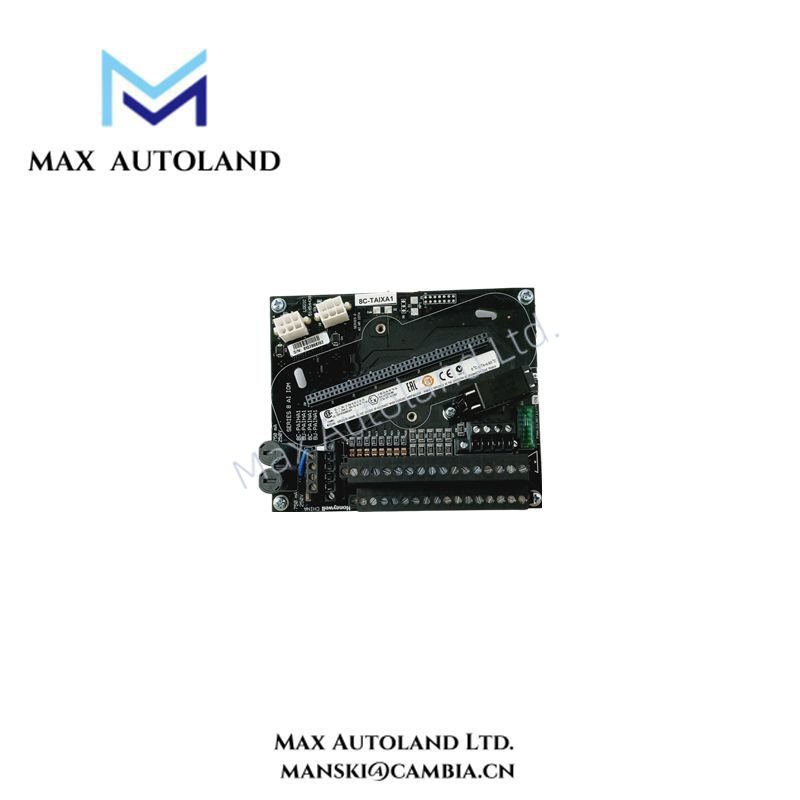

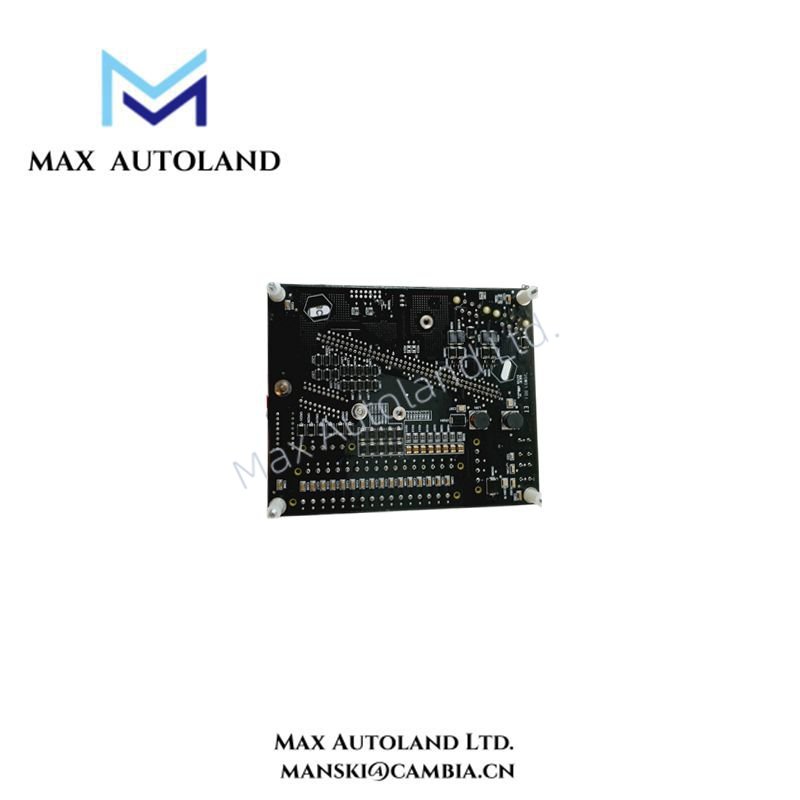

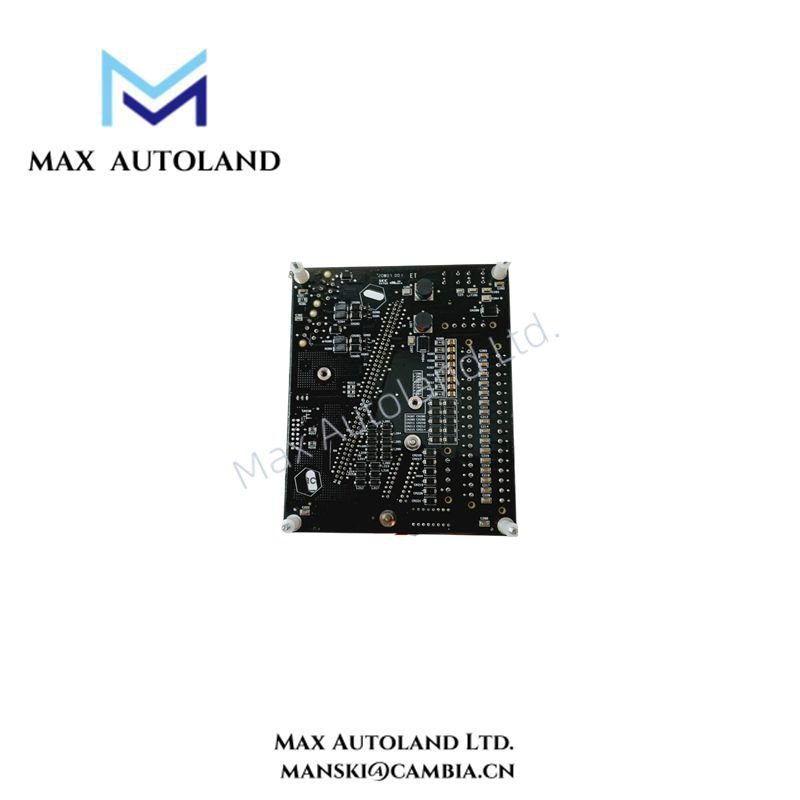

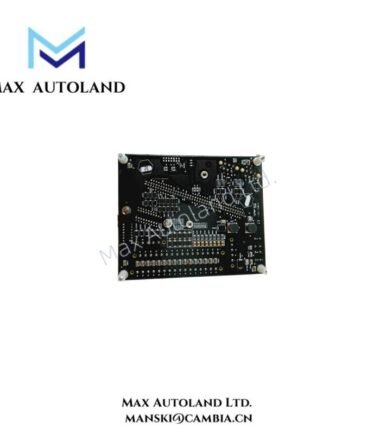

The Honeywell 8C-TAIXA1 51307127-175 serves as an Input/Output Termination Assembly (IOTA) module for the Experion C300 Series 8 platform. It supports up to 16 single-ended analog inputs with 16-bit precision. Moreover, it enables hot-swap insertion and removal, enhancing uptime during maintenance. The compact, coated 6-inch form factor ensures efficient integration into industrial automation racks.
The Analog Input Module accepts high level current inputs from transmitters and sensing devices.
Specification
| Feature | Specification |
|---|---|
| Model Number | 8C-TAIXA1 (Part No. 51307127-175) |
| Manufacturer | Honeywell |
| Series | C300 Series 8 I/O |
| Module Type | Analog Input IOTA (Non-Redundant, Coated, 6″) |
| Input Channels | 16 single-ended analog inputs |
| Resolution | 16-bit ADC precision |
| Input Range | 4–20 mA (via 250-Ω resistor) |
| Power Supply | 24 VDC nominal, module current ~110 mA |
| Scan Rate | 50 ms per channel |
| Accuracy | ±0.075% FS at 23 °C; ±0.15% FS across 0–60 °C |
| Input Voltage Tolerance | ±30 V without damage |
| Isolation | Galvanic isolation, system-to-field safety |
| Hot-Swap Capability | Yes—supports module replacement under power |
| Mounting Size | 6-inch IOTA carrier |
