Overview

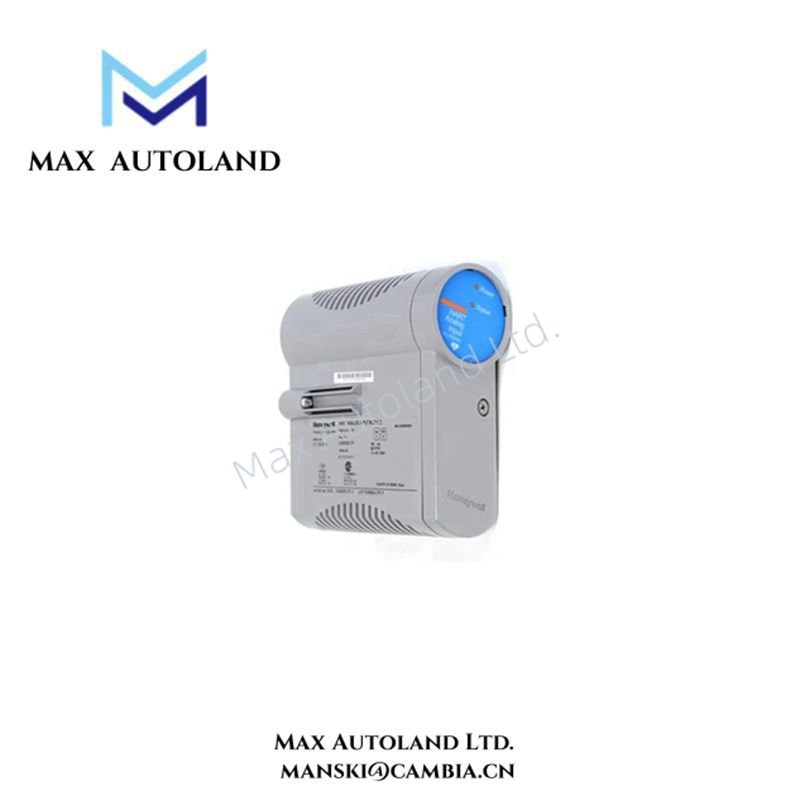

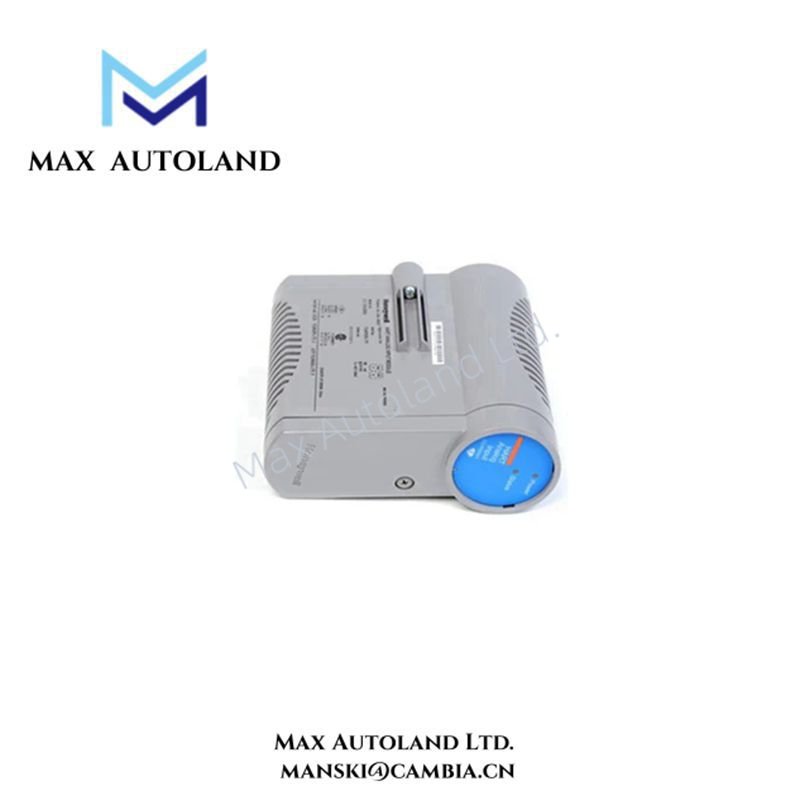

The Honeywell 8C-PDILA1 51454471-175 is a high-performance digital input module that integrates seamlessly with the Honeywell C300 Controller. It delivers precise and reliable digital input functionality, which enhances efficiency in industrial automation systems.
Moreover, the Digital Input 24VDC directly accepts 24VDC signals as discrete inputs, enabling immediate and accurate signal processing. In addition, the Digital Input Pulse Accumulation handles 24VDC signals as discrete inputs, while allowing the first 16 channels to configure either as Digital Input or Pulse Accumulation. This flexibility supports both pulse accumulation and frequency measurement on a per-channel basis, improving overall system monitoring and control.
Specification
| Parameter | Specification | ||
| Input/Output Module | 8C-PDILA1-Digital Input 24VDC,Coated | ||
| IOTA Modules | 8C-TDILA1 | Non Redundant,Coated | 9″ |
| 8C-TDILB1 | Redundant,Coated | 12″ | |
| Input Channels | 32 | ||
| Galvanic Isolation(any input terminal voltage referenced to common)1 | 1000 VAC RMS or±1500 VDC for System | ||
| Isolation Technique | Optical (In IOM) | ||
| Voltage Rating | 24 VDC | ||
| DI Power Voltage Range | 18-30 VDC | ||
| Module current rating | 95 mA | ||
| DI Power Voltage Range | 18 to 30 VDC(For user supplied field power) | ||
| ON Sense Voltage/Current | 13 VDC(min)or 3 mA(min) | ||
| OFF Sense Voltage/Current | 5 VDC(max)or 1.2mA(max) | ||
| Input Impedance | 4.2 KQ | ||
| Absolute Delay Across Input Filter and Isolation | 5ms±20% | ||
| Field Resistance for Guaranteed ON Condition | 3000max@15VDC | ||
| Field Resistance for Guaranteed OFF Condition | 30 KQ min @30 VDC | ||
| Module Removal and Insertion Under Power | Supported | ||
| Note 1-System to Field type isolation,option available only with external user supplied power | |||
Manual/Datasheet PDF
Honeywell Series 8 Controller and IO Specification
