Overview

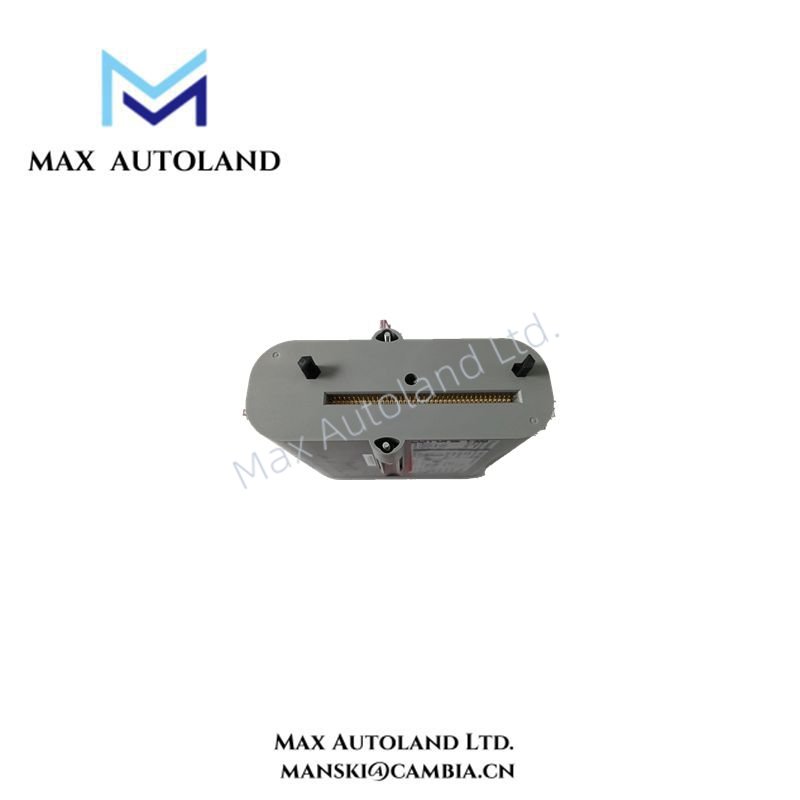

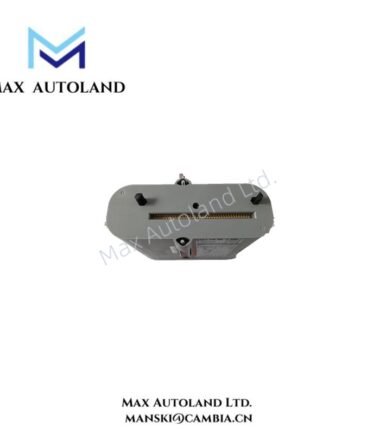

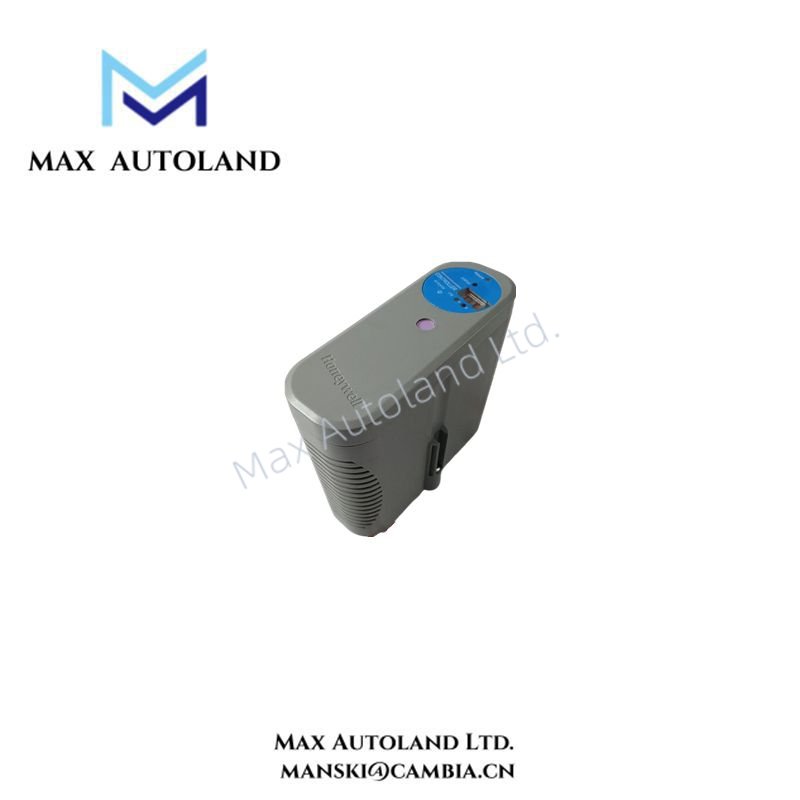

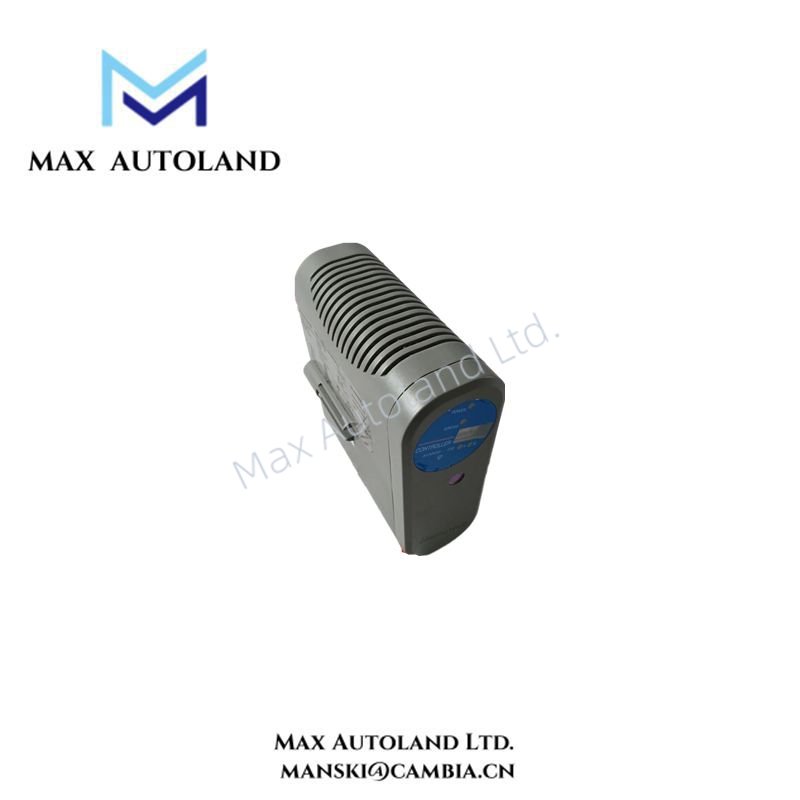

The Honeywell 8C-PCNT03 is a coated, non-redundant Processor Controller designed for the Experion PKS Series 8 C300 system. It serves as the central processing unit, executing control strategies and managing communication between I/O modules. The controller operates within the deterministic Control Execution Environment (CEE), ensuring reliable and timely execution of control tasks.
The Experion Series 8 C300 controller is the central component of the Experion control system. It executes control strategies with deterministic performance, manages batch operations, interfaces with both local and remote I/O, and directly runs custom programmable applications. Its compact design eliminates the need for additional interface or communication modules, as all control execution and communication are built into the controller itself.
The C300 controller operates on the proven Control Execution Environment (CEE), which ensures reliable and deterministic control for the distributed control system (DCS). Engineers configure and load control strategies into the controller using Control Builder, an intuitive and user-friendly engineering tool.
Specification
| Attribute | Specification |
|---|---|
| Model Number | 8C-PCNT03 |
| Manufacturer | Honeywell |
| Series | Experion Series 8 |
| Module Type | Processor Controller (Coated, Non-Redundant) |
| Processor | Dual ARM Cortex-A9 |
| Memory | 512MB RAM, 1GB Flash Memory |
| I/O Link Interfaces | 2 Redundant |
| Mounting Type | DIN Rail or Panel |
| Operating Voltage | 24V DC nominal (20–30 V DC range) |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –55°C to +85°C |
| Dimensions (L × W × H) | 9 inches (22.9 cm) length |
| Weight | Approximately 1 kg |
