5464-552 Woodward Discrete Output Module

Overview

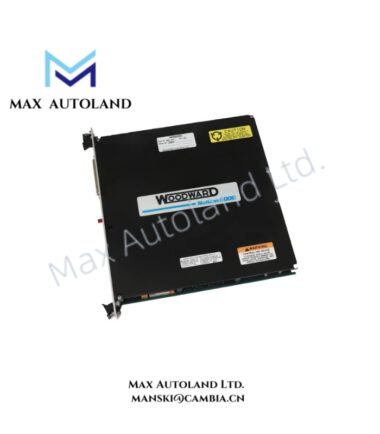

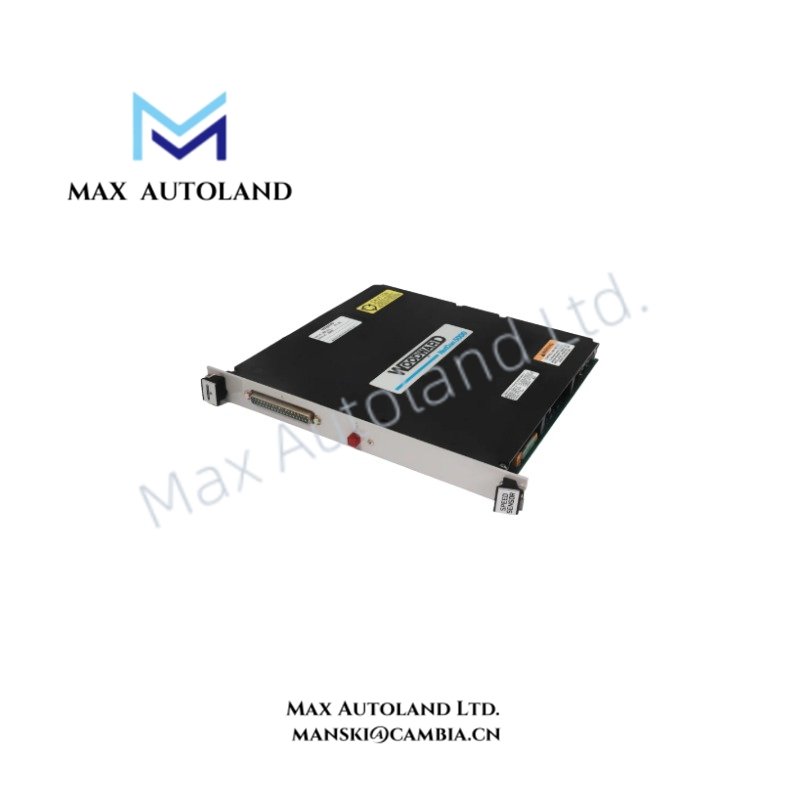

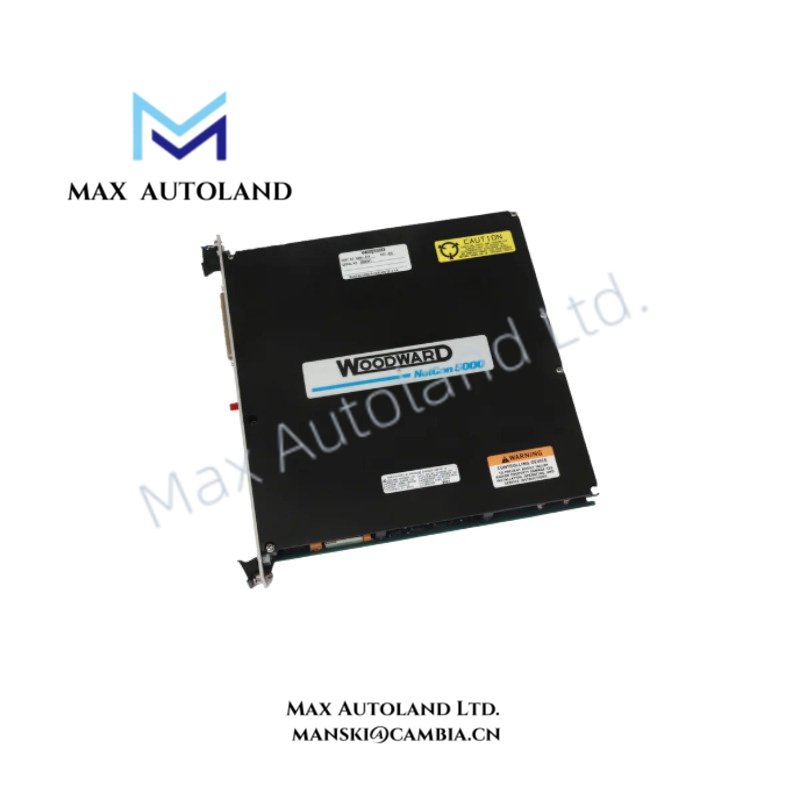

Configured for discrete signal execution in the Woodward Netcon 5000 control platform, the Woodward 5464-552 (5464-552 Discrete Output Module) provides direct electrical switching control between the system processor and field output devices.

Hardware Specifications

Actuator Loop Feedback Response and Output Control Characteristics

The Woodward 5464-552 operates as a digital output interface module within governor and industrial control architectures. It receives command data from the controller through the Netcon 5000 backplane bus and converts logical states into electrical ON/OFF output signals.

The module supports deterministic output response for connected field devices, including solenoid valves, relays, motor starters, and alarm circuits. In addition, the module monitors communication integrity and output status through onboard diagnostic functions.

Woodward control platforms typically apply actuator loop feedback response principles to maintain accurate command execution between the controller and mechanical actuators. The 5464-552 design supports controlled switching behavior, fault detection, and safe-state output handling during communication interruptions.

The module also incorporates electrical isolation between the field output circuits and internal control electronics. Therefore, it reduces the impact of electrical noise, voltage transients, and grounding differences on the control system backplane.

Frequently Asked Questions

Q: Does the Woodward 5464-552 support hot-swapping during system operation?
A: The available documentation does not specify hot-swap capability. Installation and removal should follow the approved Netcon 5000 chassis maintenance procedure.

Q: How does the module respond when communication with the processor is lost?
A: The module monitors processor communication status and can transition outputs to a predefined safe condition according to the configured control logic.

Q: What type of field devices can connect to the 5464-552 output channels?
A: The module interfaces with discrete electrical loads such as solenoids, relays, motor starters, and alarm indicators within supported system configurations.

Field Installation Guidelines

• Install the 5464-552 module in the designated Woodward Netcon 5000 chassis slot according to system configuration requirements.
• Verify backplane connector alignment before insertion to prevent mechanical damage to the module interface.
• Separate output wiring from high-voltage power cables to reduce electromagnetic interference.
• Use appropriate shielding and grounding methods for field wiring based on the installation environment.
• Confirm field device voltage and current requirements before connecting external loads.
• Check LED diagnostic indicators after installation to verify module communication and output status.
• Follow Woodward system manuals for grounding, cabinet layout, and maintenance procedures.
