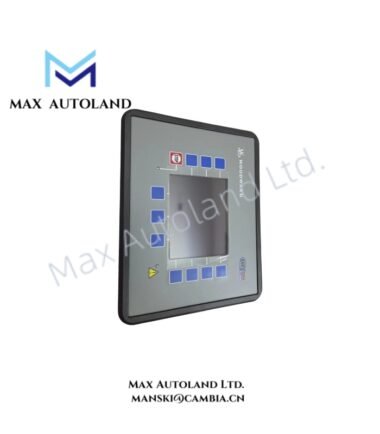

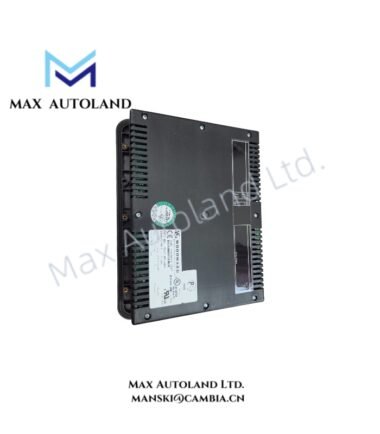

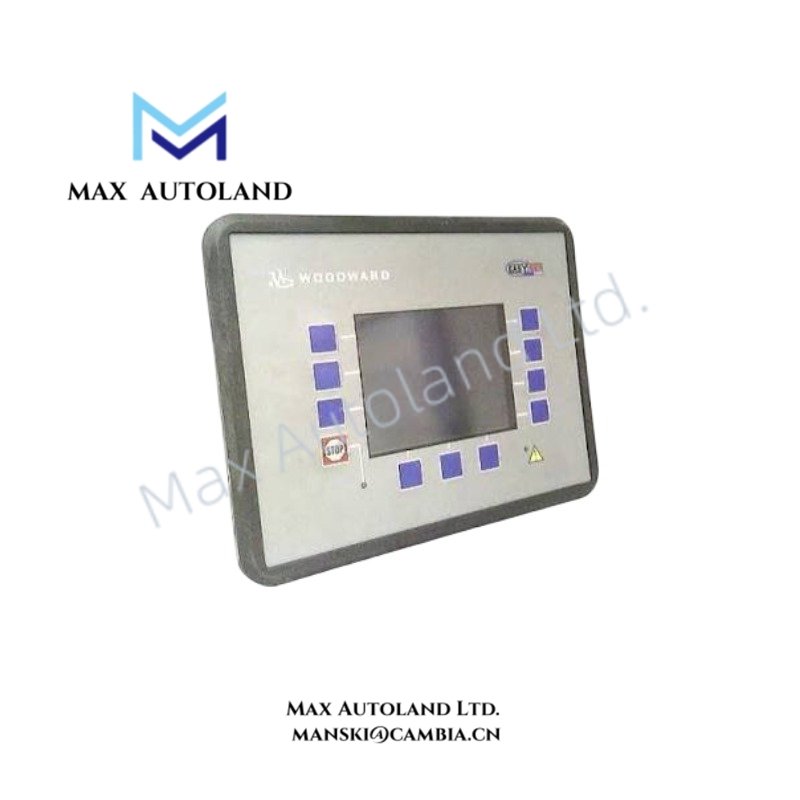

Woodward 8446-1048 Remote Control and Annunciation Panel

Overview

Configured for remote generator status monitoring and operator interface execution in Woodward easYgen-3000 Series systems, the Woodward 8446-1048 (8446-1048 Remote Control and Annunciation Panel) provides direct physical operator access and communication functions.

Hardware Specifications

Actuator Loop Feedback Response and Generator Control Interface

The Woodward 8446-1048 operates as a remote human-machine interface for easYgen generator controllers. It transfers operator commands and receives system status data through the controller communication interface.

The panel supports remote access to generator operating information, alarm states, and annunciation signals. In addition, it allows operators to monitor generator conditions without direct access to the main control cabinet.

For Woodward generator control architectures, the remote panel works with controller logic to display operating states and provide control interaction. The device does not perform primary generator regulation functions; instead, it provides external operator access to configured controller functions.

The panel installation supports distributed control layouts where the generator controller remains inside the equipment enclosure while the operator interface is positioned at a separate control location.

Frequently Asked Questions

Q: Does the Woodward 8446-1048 perform generator speed or voltage regulation?
A: No. The 8446-1048 provides remote operator interface, status indication, and annunciation functions. Generator regulation remains controlled by the connected easYgen controller.

Q: Can the 8446-1048 operate independently without an easYgen controller?
A: No. The panel requires communication with a compatible Woodward easYgen-3000 Series controller to display data and execute remote functions.

Q: Is the 8446-1048 installed inside the generator cabinet?
A: The panel is designed for remote mounting. Installation location depends on system layout, operator access requirements, and approved wiring practices.

Field Installation Guidelines

• Verify compatibility between the 8446-1048 panel and the installed easYgen controller model before commissioning.
• Mount the panel on a stable surface with sufficient mechanical clearance.
• Route communication wiring separately from high-current power cables to reduce electrical interference.
• Connect cable shields according to Woodward grounding recommendations and site electrical standards.
• Confirm communication status, alarm indication, and operator functions after installation.
• Record controller configuration parameters before replacing or modifying the remote panel.
