Overview
Moreover, its robust industrial-grade design guarantees long-term reliability in demanding environments where vibration, temperature, and electrical interference can compromise system performance. The terminal base simplifies installation and maintenance while maintaining compliance with IEC 61508 SIL 3 and API 670 standards.
Specification
| Parameter | Specification |
|---|---|

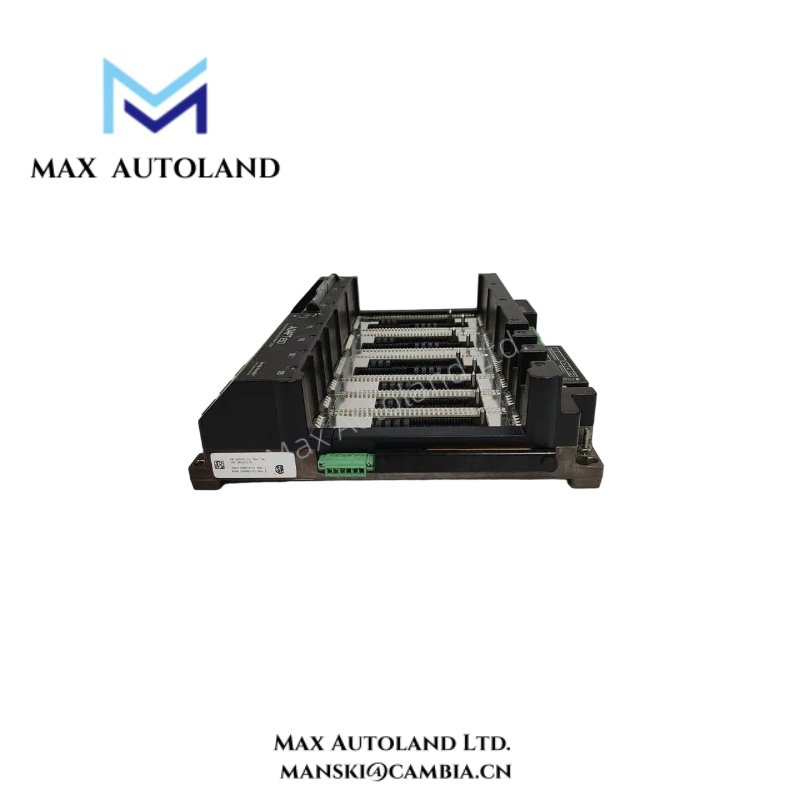

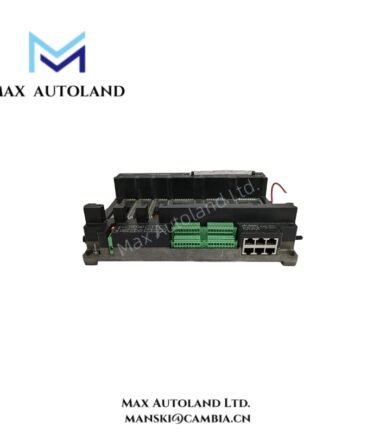

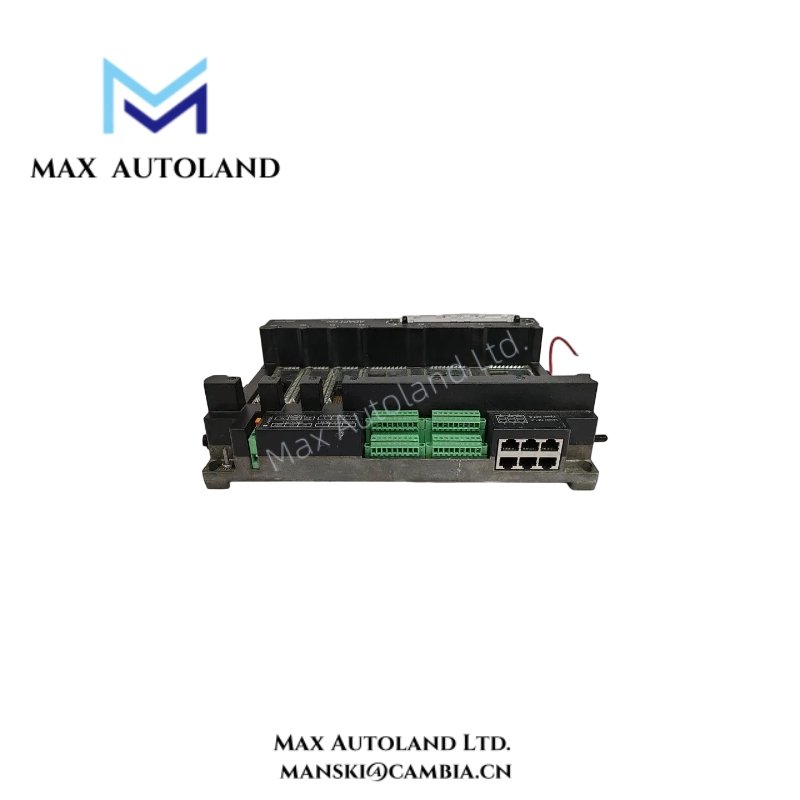

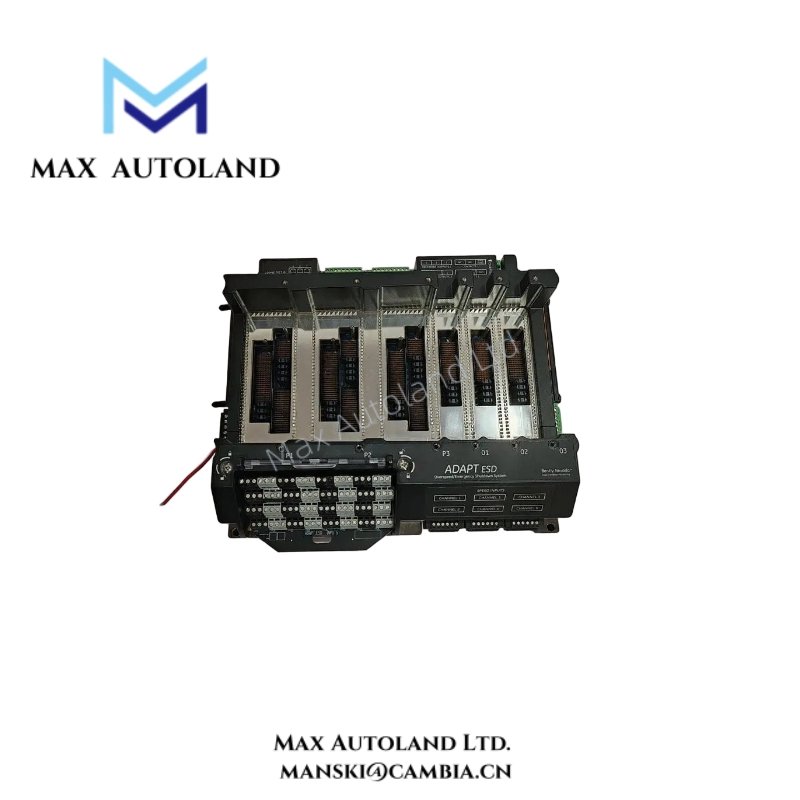

| Model | Bently Nevada 3701/55 ADAPT Overspeed ES Terminal Base Assembly |
| Part Number | 289761-01 |
| System Compatibility | ADAPT ESD (Emergency Shutdown Device) |
| Architecture | Triple Modular Redundant (TMR) |
| Function | Provides base and terminal connections for ESD modules |
| Channels Supported | Up to 6 speed inputs, 32 DI, 12 AI shared |
| Power Distribution | 24 VDC nominal |
| Communication Support | Ethernet / Modbus TCP |
| Mounting Type | Panel mount |
| Material Construction | Industrial-grade metal chassis |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Certifications | SIL 3 (IEC 61508), API 670 compliant |
| Maintenance | Hot-swappable modules and field-serviceable components |
| Weight | Approx. 1.5 kg (3.3 lb) |
FAQ
Q1: What is the main role of the 3701/55 289761-01 Terminal Base Assembly?
A1: It provides mechanical and electrical connections for ADAPT ESD modules, ensuring stable power and signal integrity.
Q2: Can it be used as a standalone unit?
A2: No, it functions as part of the 3701/55 ADAPT ESD system to support overspeed detection and shutdown control.
Q3: What makes it suitable for critical applications?
A3: Its TMR architecture, robust design, and compliance with SIL 3 and API 670 make it ideal for safety-critical operations.
Q4: How does it simplify maintenance?
A4: The base allows for quick module replacement and tool-free access, reducing downtime and improving reliability.
