Overview
Specification
| Parameter | Specification |
|---|---|

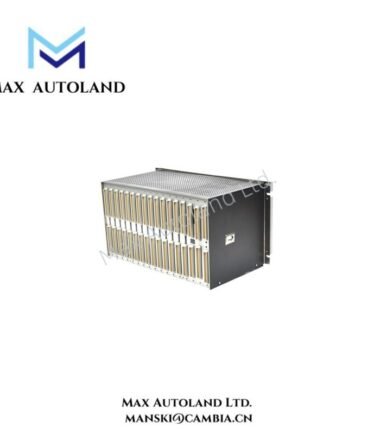

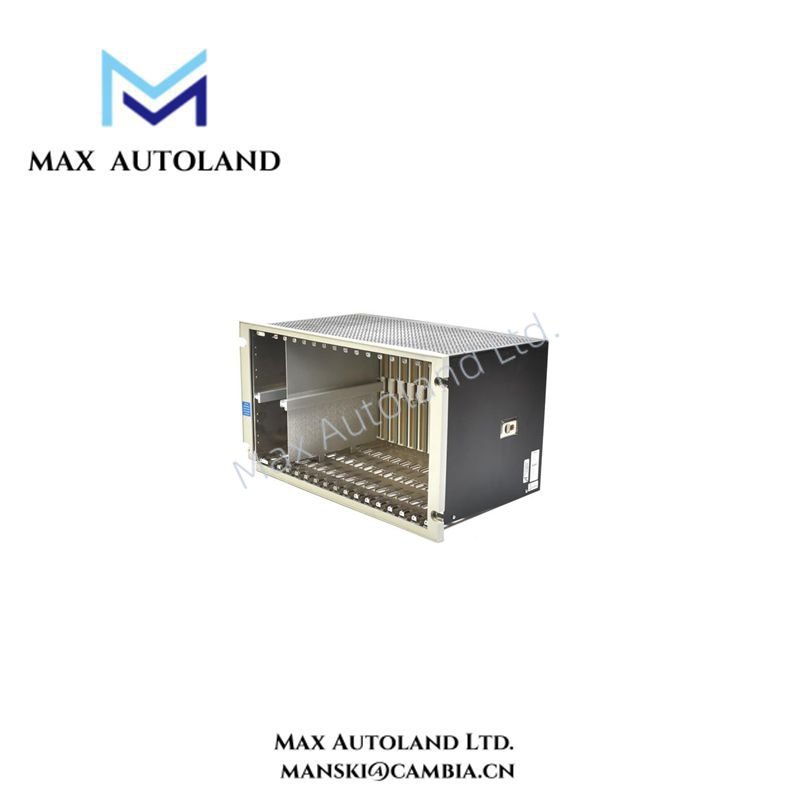

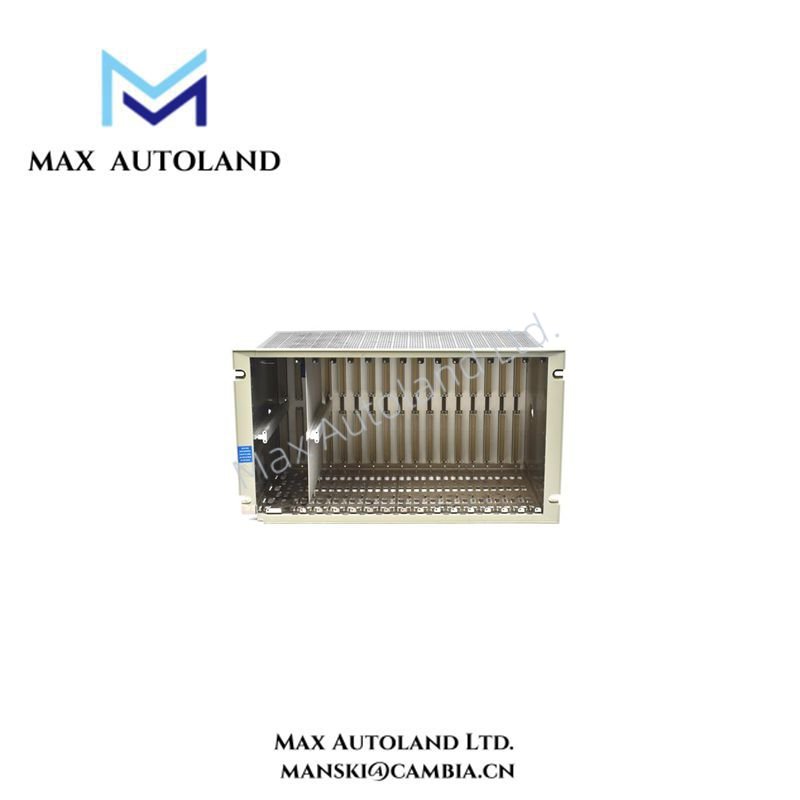

| Part Number | 3500/05 |
| Product Type | System Rack Mount Option Half-height module Internal Chassis (qty 1) |
| Compatible Systems | Bently Nevada 3500 Series Modules |
| Mounting | 19-inch standard rack mounting |
| Module Capacity | Up to 8 3500 monitoring modules |
| Material | Steel, powder-coated for durability |
| Dimensions (HxWxD) | 7U x 19″ x 12″ (custom sizes available) |
| Weight | Approx. 15 kg |
| Cooling | Ventilated with airflow for optimal temperature |
| Environmental Rating | Industrial operating conditions |
| Installation | Tool-less module installation supported |
| Cable Management | Integrated channels and tie points |
FAQ
A: 3500/05 accommodates monitor, display, relay, Keyphasor, and communications modules.Q: How many slots are available in each rack size?
A: Full-size racks have 14 slots, and mini-racks have seven slots.Q: Can the rack be mounted in standard EIA racks?
A: Yes, rack-mount options fit 19-inch EIA rails.Q: Does the rack support hazardous area approvals?
A: Yes, options include CSA/NRTL/C and ATEX/IECEx approvals.
Q: How fast can orders ship?
A: All items are full factory original; shipping occurs in 3 days–2 weeks depending on order size, using DHL or similar services. Returns accepted within 30 days for quality issues.
