Overview

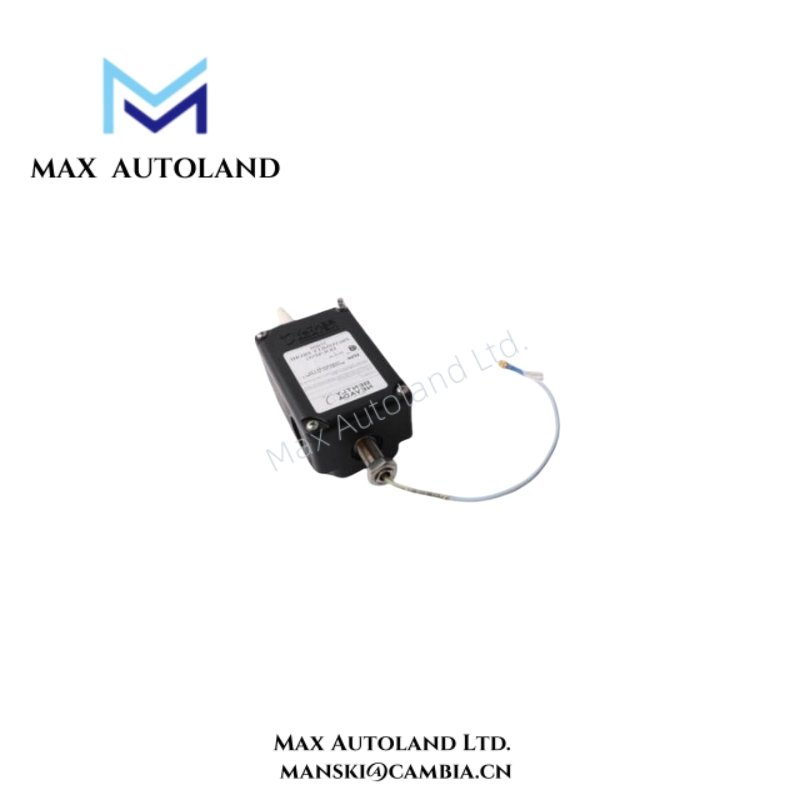

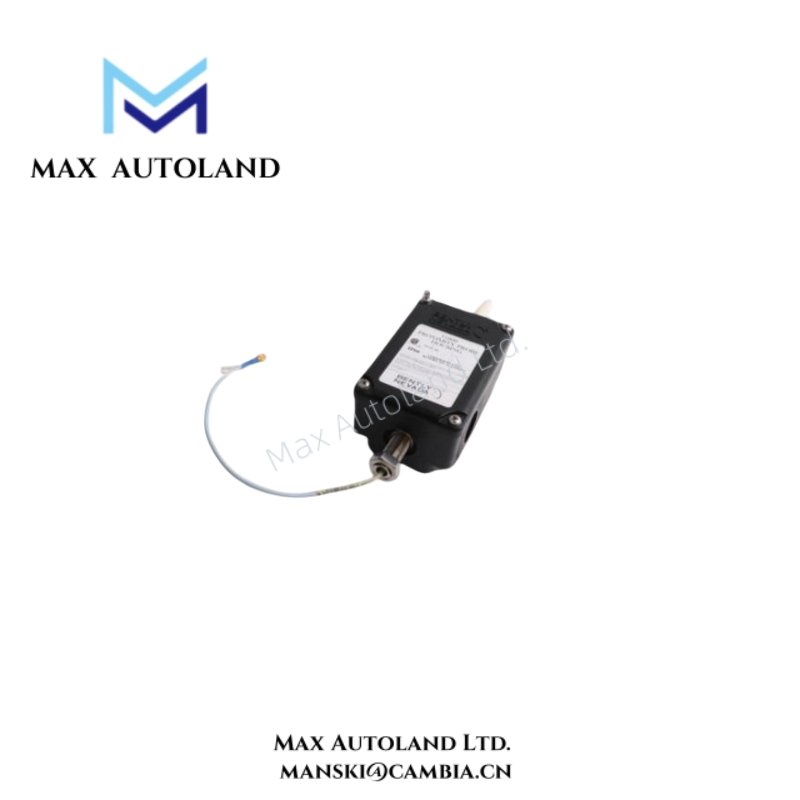

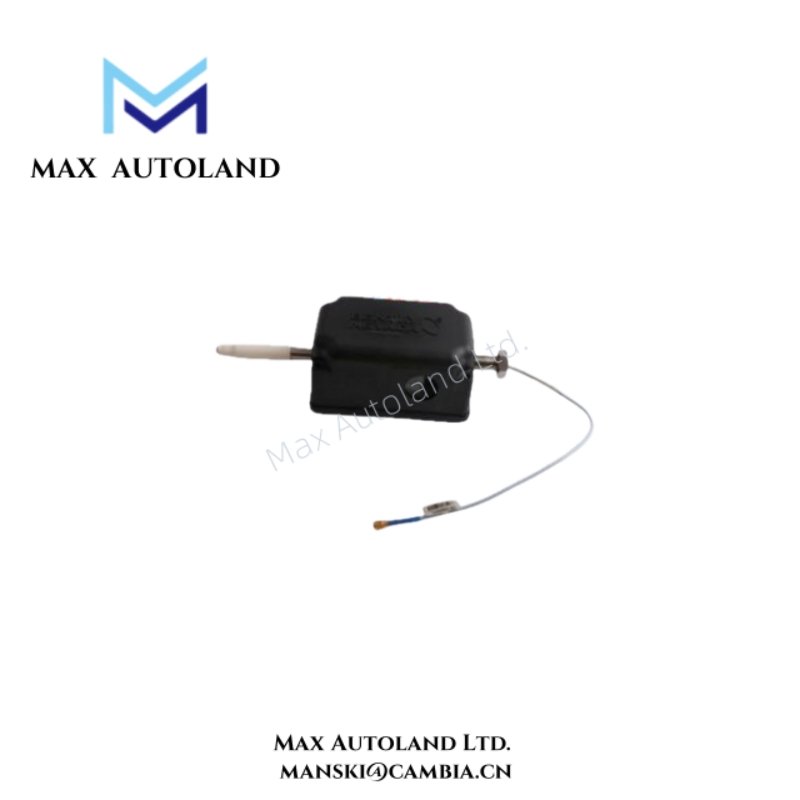

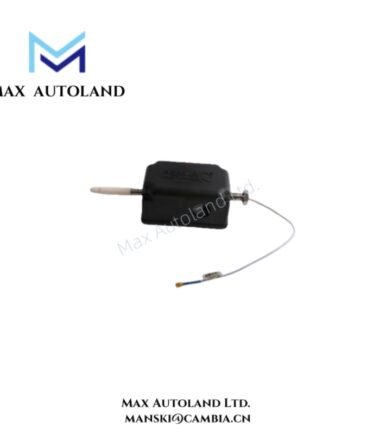

Constructed from glass-reinforced polyphenylene sulfide (PPS) thermoplastic, this housing delivers excellent corrosion resistance and long-term durability. In addition, stainless steel sleeves and Neoprene O-rings enhance mechanical strength and environmental protection. Therefore, engineers can deploy this assembly confidently in turbines, compressors, and other critical rotating machinery.
Its design meets CSA Type 4X, IP66/NEMA 4X, and EN50014 standards, ensuring resistance to dust, water, and electrostatic discharge. Furthermore, the housing can accommodate 3300 XL 8 mm proximity probes and supports optional conduit fittings for explosion-proof applications.
Specification
| Parameter | Specification |
|---|---|
| Model | 31000-28-10-00-015-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Material | Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic |
| Sleeve Material | AISI 304 stainless steel |
| Outer Sleeve & Screws | AISI 303 stainless steel |
| O-Ring Material | Neoprene |
| Probe Compatibility | 3300 XL 8 mm proximity probes |
| Environmental Rating | CSA Type 4X, IP66/NEMA 4X, EN50014 electrostatic dissipation compliant |
| Temperature Range | -51 °C to +105 °C (-60 °F to +221 °F) |
| Hot Water / Steam Exposure | Up to 1 week at 95 °C (203 °F) without significant strength loss |
| Recommended Torque (Retaining Nut) | 29.4 N·m (260 in·lb) |
| Housing Strength | Supports 912 N (205 lb) at 38 mm (1.5 in) from unsupported end |
| Housing Impact Strength | Certified for 4 Joule impact at -39 °C & 115 °C; 7 Joule at ambient |
| Weight | 1.2 kg (2.6 lb) typical |
| Fittings | Two plugs, one 3/4-14 NPT fitting; 3/4-14 to 1/2-14 NPT SST reducer; cable seal grips with grommets for 1/8–3/16, 1/4–5/16, 5/16–3/8 in cables |
| Mounting Thread Option | 3/4-14 NPT (Required if ordering Standoff Adapter Option) |
| Probe with Connector | 3300 XL 8 mm probe, multiple approvals |
| Probe Cable Length | 1.0 m (39 in) |
FAQ
A1: Yes, it supports both 3300 XL and selected 3500 series probes, depending on configuration.
Q2: Is the housing suitable for steam or hot water exposure?
A2: It tolerates up to one week of contact with hot water or condensing steam without significant degradation.
Q3: What certifications ensure safe industrial use?
A3: It meets CSA Type 4X, IP66/NEMA 4X, and EN50014 standards for environmental and electrostatic protection.
Q4: Can the probe cable be replaced without disassembling the machine?
A4: Yes, external access allows convenient cable replacement and gap adjustment.
Q5: What materials provide durability and impact resistance?
A5: PPS thermoplastic housing, stainless steel sleeves, and Neoprene O-rings ensure long-term reliability.
