Overview

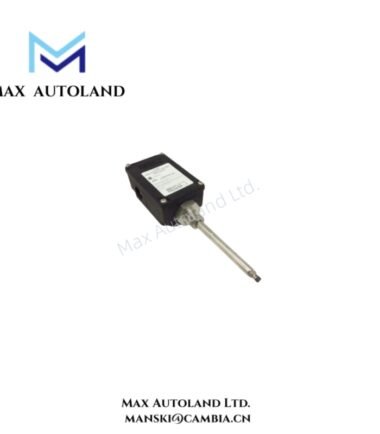

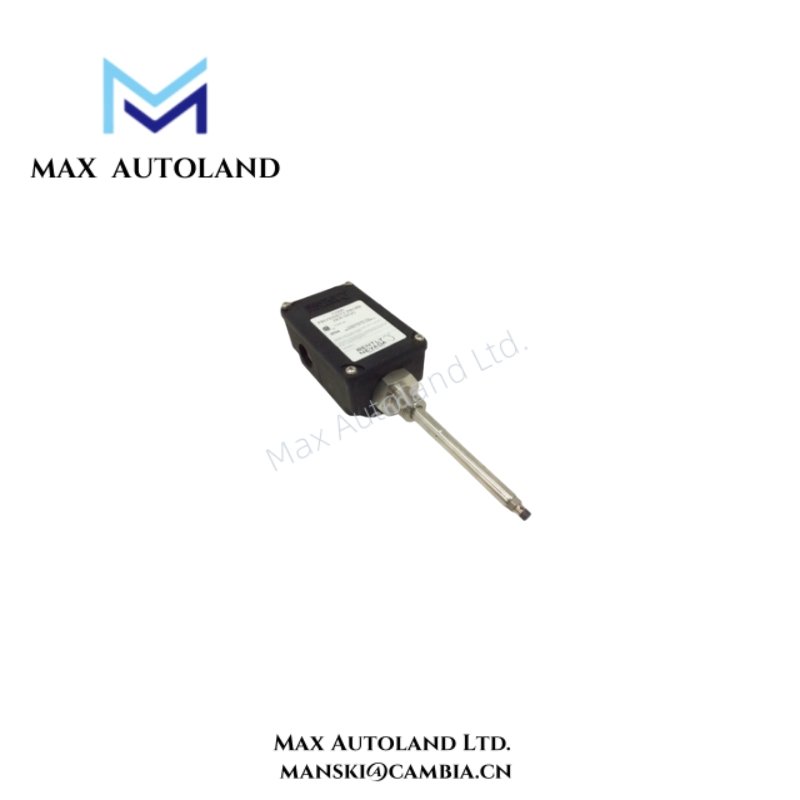

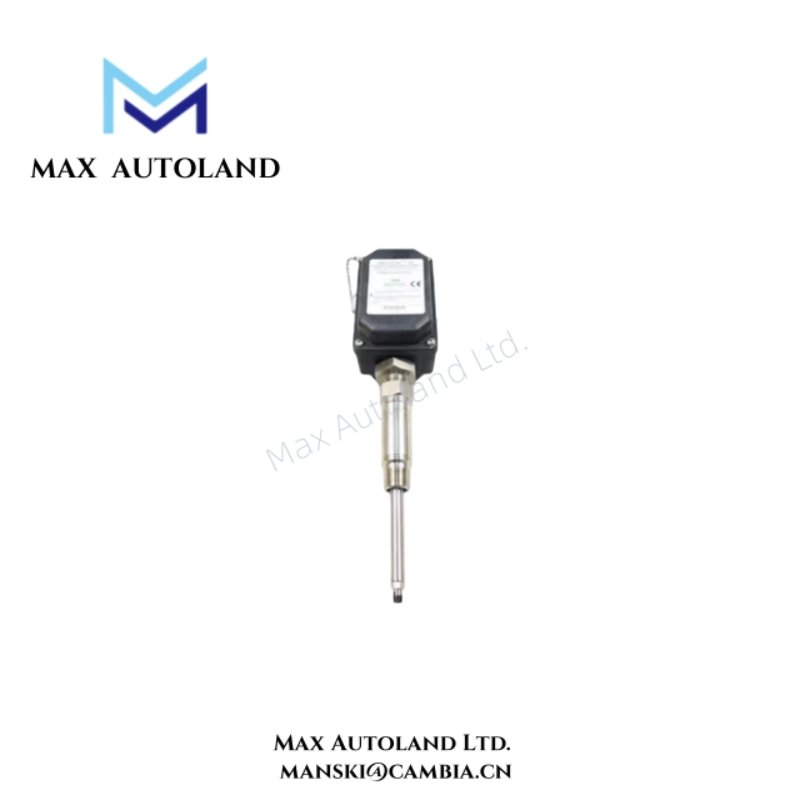

Built from high-strength glass-reinforced PPS thermoplastic, the housing resists corrosion and performs under extreme temperatures. In addition, stainless steel components enhance durability while providing robust mechanical support. The assembly is compatible with 3300 XL 8 mm proximity probes and supports conduit fittings for explosion-proof installations. Therefore, engineers can trust the 32000 series for long-term performance in turbines, compressors, and other rotating equipment.
Specification
| Parameter | Specification |
|---|---|
| Model | 32000-28-05-08-080-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Material | Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic |
| Sleeve Material | AISI 304 stainless steel |
| Outer Sleeve & Screws | AISI 303 stainless steel |
| O-Ring Material | Neoprene |
| Probe Compatibility | 3300 XL 8 mm proximity probes |
| Environmental Rating | CSA Type 4X, IP66/NEMA 4X, EN50014 compliant |
| Temperature Range | -51 °C to +105 °C (-60 °F to +221 °F) |
| Hot Water / Steam Exposure | Up to 1 week at 95 °C (203 °F) without significant strength loss |
| Recommended Torque (Retaining Nut) | 29.4 N·m (260 in·lb) |
| Housing Strength | Supports 912 N (205 lb) at 38 mm (1.5 in) from unsupported end |
| Housing Impact Strength | Certified for 4 Joule impact at -39 °C & 115 °C; 7 Joule at ambient |
| Weight | 1.2 kg (2.6 lb) typical |
| Fittings | Two plugs, one 3/4-14 NPT fitting; one 3/4-14 to 1/2-14 NPT SST reducer; cable seal grip with grommets |
| Cable Sizes Supported | 1/8–3/16 in, 1/4–5/16 in, 5/16–3/8 in |
| Mounting Thread Option | 3/4-14 NPT (Required if ordering Standoff Adapter Option) |
| Probe with Connector | 3300 XL 8 mm probe, multiple approvals |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter Length (Option C) | Minimum length 1.5 in (38 mm) |
FAQ
A1: Yes, it tolerates brief steam exposure up to one week at 95 °C without significant degradation.
Q2: Is the housing compatible with 3500 series probes?
A2: It supports 3300 XL probes; some 3500 series probes may be compatible depending on configuration.
Q3: What environmental ratings does this assembly meet?
A3: CSA Type 4X, IP66/NEMA 4X, and EN50014 electrostatic dissipation compliant.
Q4: Can I use it in explosion-proof applications?
A4: Yes, optional conduit fittings and standoff adapters allow safe use in hazardous areas.
Q5: How long is the probe cable included?
A5: This configuration comes with a 0.5 m (20 in) 3300 XL probe cable.
