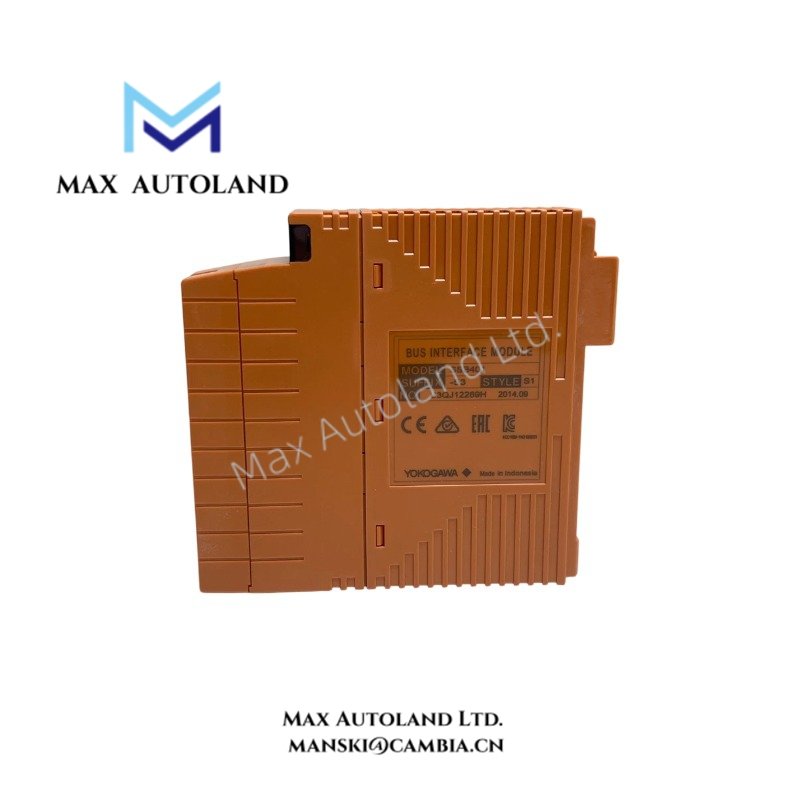

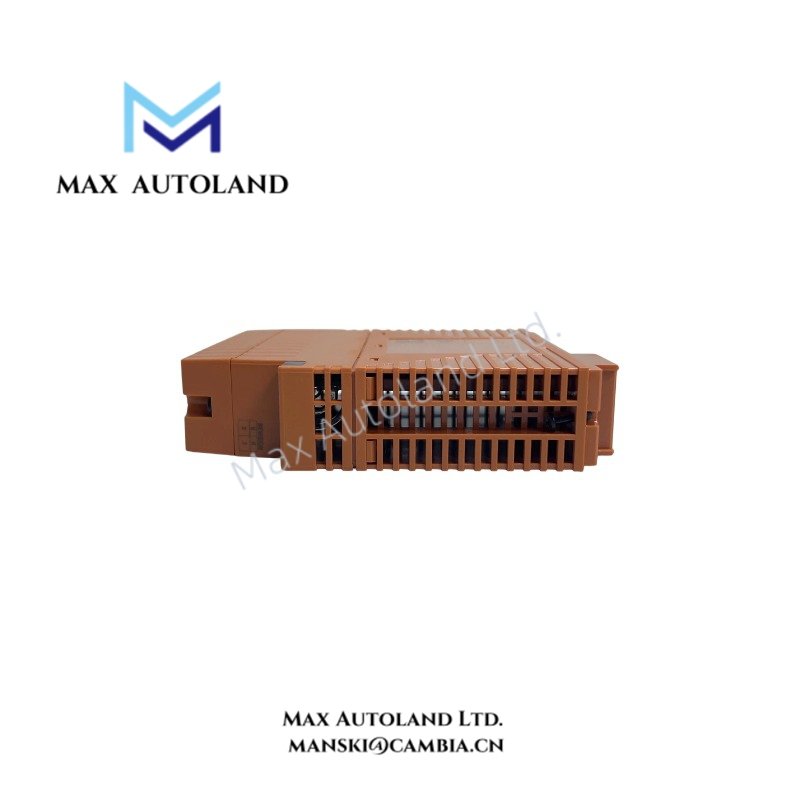

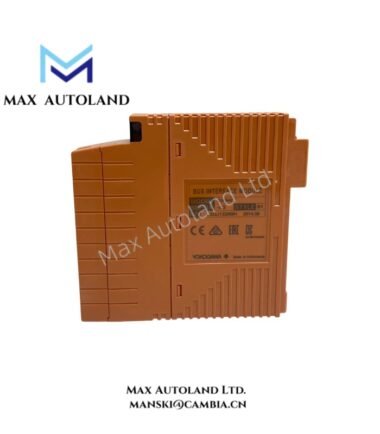

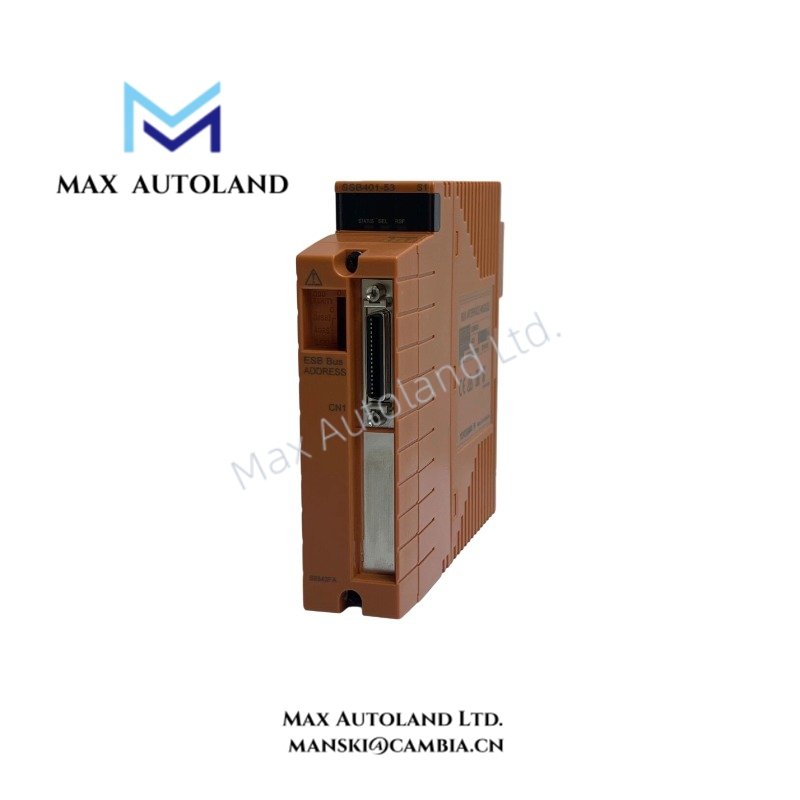

Yokogawa SSB401-53 ESB Bus Interface Slave Module

Suffix Breakdown & Model Matrix

The supplied information identifies SSB401-53 as the complete product model. No additional manufacturer-defined breakdown of the -53 suffix was provided, so no further suffix interpretation is assigned.

Hardware Specifications

ESB Bus Communication

The SSB401-53 provides the slave-side interface for ESB Bus communication. The supplied specification defines a communication speed of 1 Mbps and a maximum ESB Bus cable length of 1,000 m.

The physical connection should follow the applicable Yokogawa ESB Bus wiring arrangement. Cable routing should separate communication wiring from high-current and high-noise conductors where practical. Shield termination and grounding should follow the system installation documentation rather than applying an unsupported termination scheme.

The module accepts a 24 V DC supply and has an approximate power consumption of 10 W. Therefore, the associated power distribution should account for the module load together with the other equipment installed in the same node or rack.

Frequently Asked Questions

Q: What ESB Bus communication speed does the SSB401-53 support?
A: The supplied specification states an ESB Bus communication speed of 1 Mbps.

Q: What power supply does the SSB401-53 require?
A: The supplied specification identifies a 24 V DC power supply and approximately 10 W power consumption.

Q: Can the SSB401-53 be hot-swapped?
A: The supplied data identifies hot-swapping as supported for its rack or node unit slot-mounted configuration. The applicable Yokogawa system maintenance procedure should be followed before module removal or insertion.

Field Installation Guidelines

Install the SSB401-53 in the designated rack or node unit slot and verify mechanical engagement before applying power.

Connect the 24 V DC supply according to the system wiring documentation. Confirm supply polarity and isolation before energizing the module.

Route ESB Bus cables separately from high-current power conductors where the installation allows. Avoid unnecessary parallel routing with sources of electromagnetic interference.

Maintain the specified maximum ESB Bus cable length of 1,000 m. Do not exceed the documented cable-length limit when designing the communication path.

Use the applicable Yokogawa grounding and shielding method for the ESB Bus installation. Do not introduce an unverified shield-ground configuration that could create unwanted ground-current paths.

For hot-swapping, follow the Yokogawa maintenance procedure for the associated node or rack. Verify the permitted maintenance state before removing or inserting the module.

Before commissioning, verify the module model, slot position, DC supply, ESB Bus connection, and physical seating. Record the installed module configuration for subsequent maintenance.
