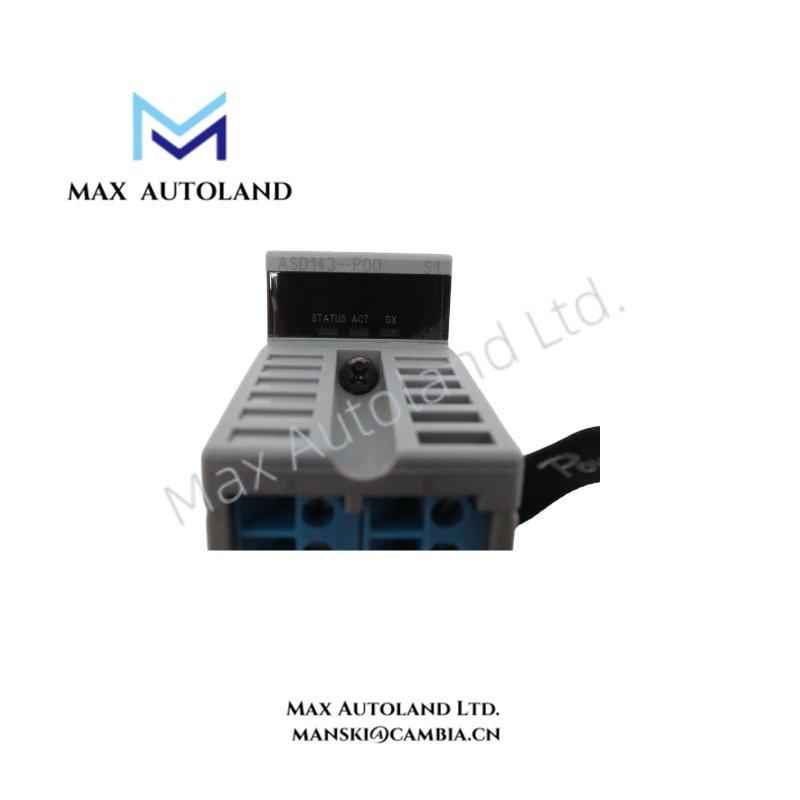

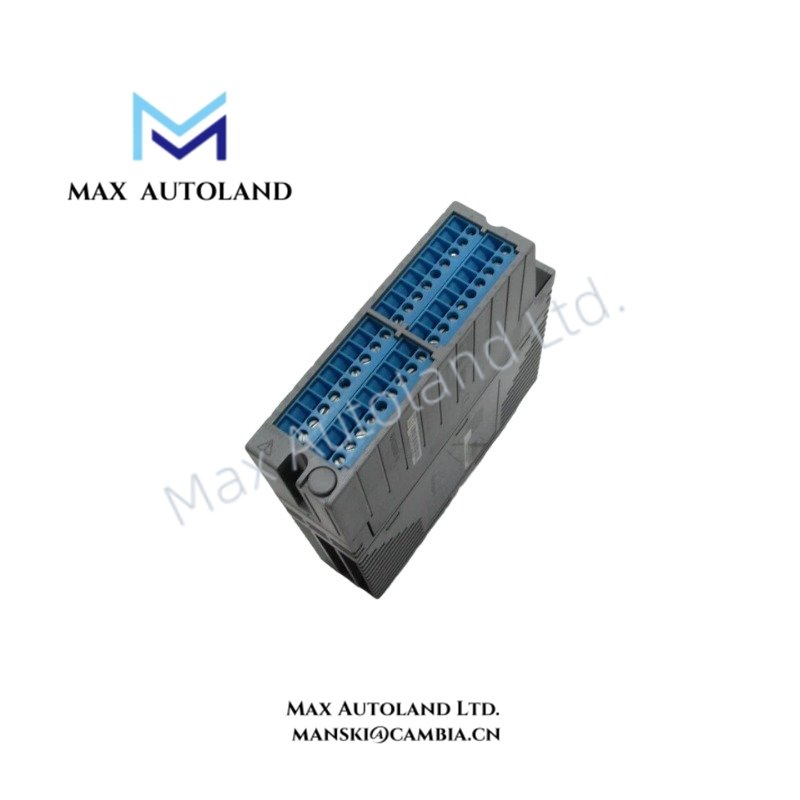

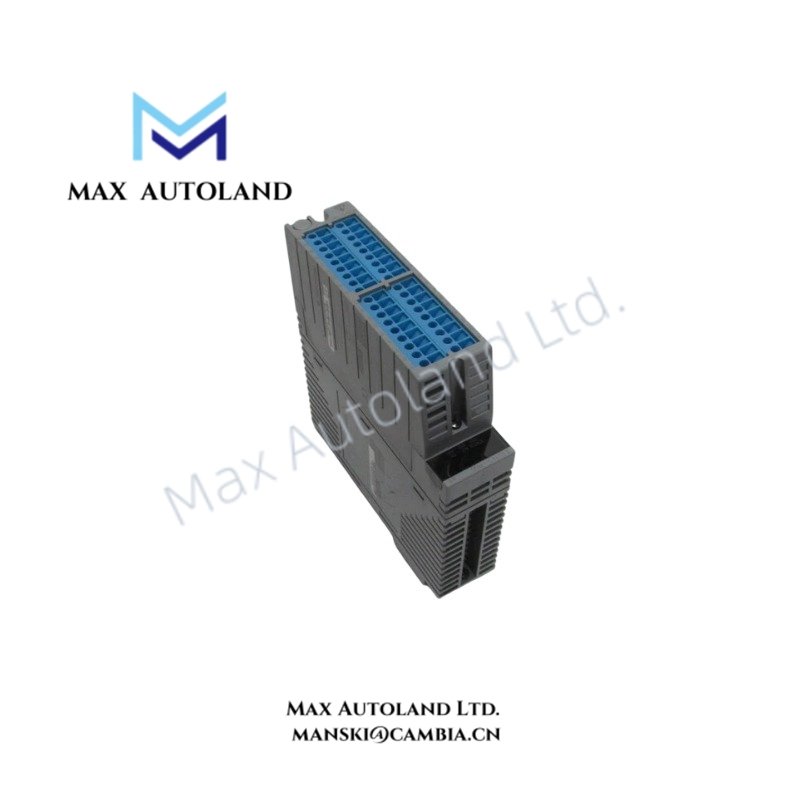

ASD143-P00 Yokogawa Digital Input Module

Hardware Specifications

Channel Isolation and Process Signal Interface

The Yokogawa ASD143-P00 provides 16 isolated digital input channels for NAMUR field device monitoring. The module accepts proximity switch and contact input signals that comply with IEC 60947-5-6 requirements.

Furthermore, the built-in isolation barrier separates field circuits from system-side electronics. The design supports installation in hazardous areas where intrinsic safety interfaces are required. The module also supports pulse counting functions through the -P configuration, allowing frequency-based input monitoring up to 25 Hz.

For Yokogawa CENTUM systems, the module maintains channel-to-channel isolation to reduce electrical interference between field input circuits. The isolated architecture also limits signal disturbances caused by ground potential differences and external electrical noise.

Frequently Asked Questions

Q: Does the ASD143-P00 support NAMUR proximity switches directly?
A: Yes. The ASD143-P00 accepts NAMUR compatible input signals according to IEC 60947-5-6 and processes proximity switch status signals through isolated input channels.

Q: Does the module provide pulse counting functionality?
A: Yes. The ASD143-P00 includes pulse count processing capability indicated by the -P suffix and supports input frequencies up to 25 Hz.

Q: What terminal blocks are compatible with the ASD143-P00?
A: The module supports ATSB4S single terminal block and ATSB4D dual-redundant terminal block configurations for external field connections.

Field Installation Guidelines

• Install the ASD143-P00 in the designated Yokogawa I/O subsystem location according to the applicable CENTUM hardware configuration manual.
• Use shielded field wiring where required by the plant grounding design and connect cable shields according to site electrical standards.
• Separate low-level digital input wiring from high-power cables to reduce electromagnetic interference.
• Verify NAMUR field device compatibility before connecting external proximity switches or contact sensors.
• Confirm terminal block configuration before field wiring because ATSB4S and ATSB4D assemblies provide different connection arrangements.
• Check grounding and isolation conditions before commissioning the input channels.
• Apply corrosion protection practices consistent with ISA S71.04 G3 environmental requirements.
