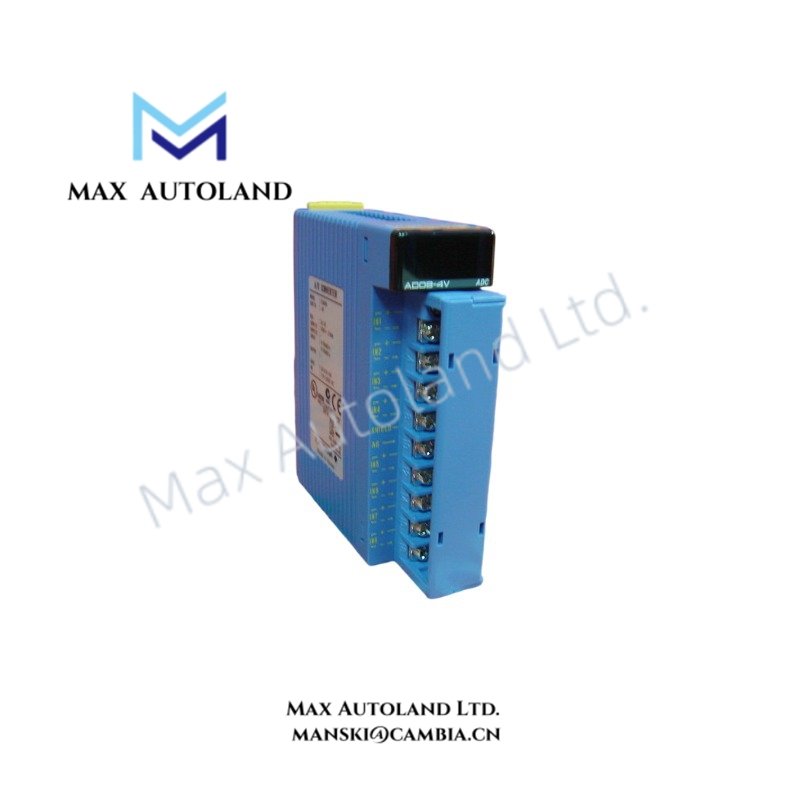

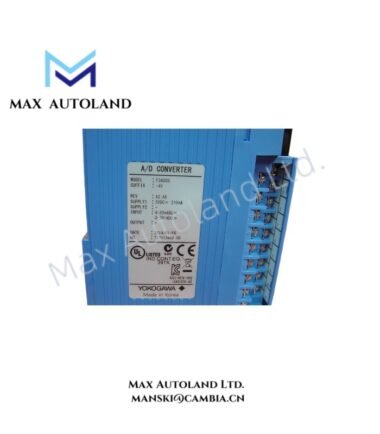

Yokogawa F3AD08-4V High-Speed Analog Input Module

Hardware Specifications

Yokogawa FA-M3 Analog Signal Processing Characteristics

The F3AD08-4V processes field voltage signals through independent differential input channels and transfers converted digital values to the FA-M3 controller backplane. The module supports multiple voltage ranges, therefore allowing direct connection to various analog transmitters, sensors, and transducers.

The module provides configurable digital processing functions, including scaling correction, input filtering, and value retention functions. In addition, photocoupler isolation separates external signal circuits from internal control electronics, which reduces electrical interference during signal acquisition.

Frequently Asked Questions

Q: How many analog input channels does the Yokogawa F3AD08-4V provide?
A: The F3AD08-4V provides 8 differential voltage input channels for analog signal measurement.

Q: Does the F3AD08-4V support bipolar voltage input signals?
A: Yes. The module supports -10 to +10 VDC bipolar voltage input range in addition to unipolar ranges such as 0 to 5 VDC and 0 to 10 VDC.

Q: What isolation method does the F3AD08-4V use?
A: The module uses photocoupler isolation between input terminals and internal control circuitry to separate field wiring signals from controller electronics.

Field Installation Guidelines

Install the F3AD08-4V according to Yokogawa FA-M3 hardware installation procedures and verify module compatibility with the controller base unit before operation.

Connect analog signal wiring using properly shielded cables when the installation environment contains electrical noise sources. Ground cable shields according to the site grounding design and avoid routing analog signal cables together with high-current power lines.

Confirm input signal polarity before wiring. Incorrect terminal connection may cause inaccurate voltage measurement or abnormal input values. Configure the selected input range to match the connected field device output before commissioning.

Maintain proper terminal screw tightening and inspect wiring conditions during maintenance activities. Follow Yokogawa recommended handling procedures when removing or installing the module from the controller system.
