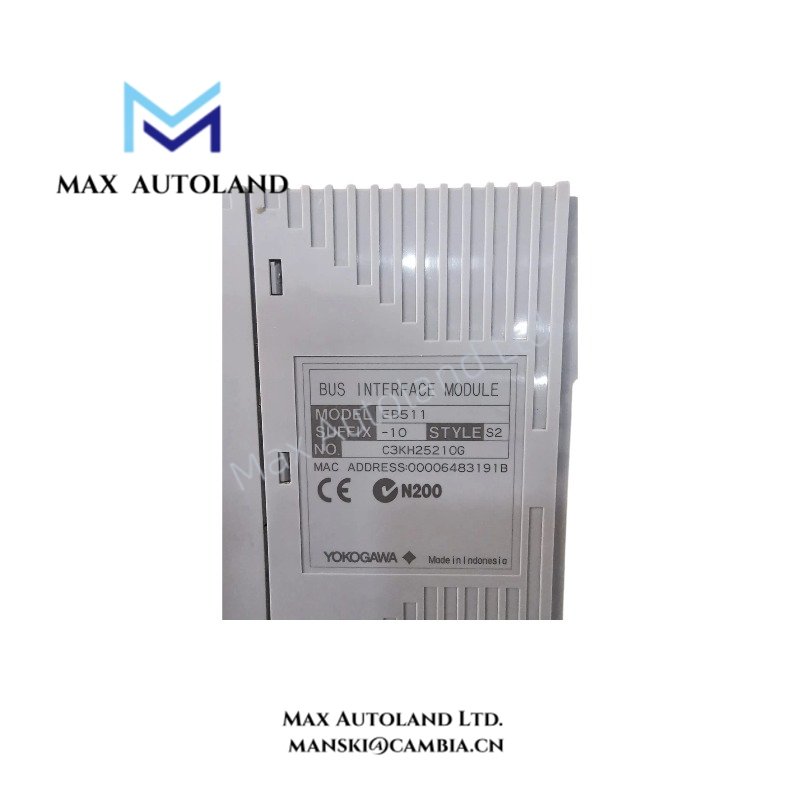

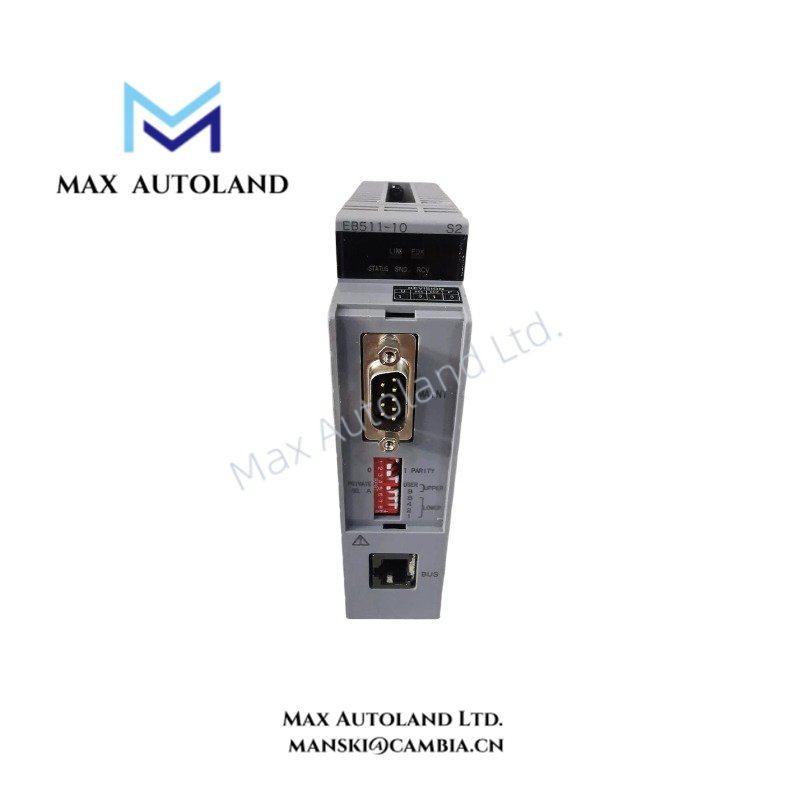

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | EB511-10 |
| Spare Model | EB511-10S2 |
| Brand | Yokogawa |
| Product Type | Bus Interface Module |
| Module Classification | ER Bus Module |
| Origin | Not specified |
| Communication Interface | IEEE 802.3 10BASE-2 |
| Number of Ports | 1 |
| Communication Speed | 10 Mbps |
| Connector | BNC / ER Bus Connector |
| Power Supply | System backplane / Internal bus |
| Operating Temp | 0 to 50 deg C |
| Storage Temp | -20 to +70 deg C |
| Weight | 0.3 kg |
| Dimensions | 2.5 x 12.7 x 12.7 cm |
| System Compatibility | Yokogawa CENTUM CS 3000, CENTUM VP, and related DCS platforms |
DCS Bus Communication and Interface Characteristics
The EB511-10 handles physical communication between connected system components through its specified 10BASE-2 interface. Consequently, installation must account for the bus topology, connector compatibility, and cable routing.
The module receives power through the system backplane or internal bus. Therefore, its electrical installation depends on the compatible system hardware rather than a separately specified external power input.
For process-control integration, distinguish this module’s network communication function from analog instrument interfaces. The supplied specifications do not identify 4-20 mA HART channels, FOUNDATION Fieldbus ports, or channel-to-channel isolation.
Frequently Asked Questions (FAQ)
Q: What communication interface does the Yokogawa EB511-10 support?
A: The specified interface is IEEE 802.3 10BASE-2, with one port operating at 10 Mbps.
Q: Does the EB511-10 require a separate external power supply?
A: The supplied specifications identify system backplane or internal bus power. They do not specify an external power input.
Q: Can the EB511-10 be installed in any Yokogawa DCS chassis?
A: Compatibility must be confirmed against the target system’s hardware configuration. The supplied information identifies CENTUM CS 3000, CENTUM VP, and related DCS platforms but does not specify individual chassis or slot requirements.
Field Installation Guidelines
- Verify the module label and confirm the complete EB511-10S2 model designation before installation.
- Confirm that the target system supports the EB511-10 hardware configuration and corresponding bus interface.
- Inspect the module connector and mating system interface for physical damage or contamination.
- Follow the system manufacturer’s power-isolation procedure before inserting or removing the module.
- Connect the specified bus cable using compatible connectors and maintain the designated network topology.
- Route communication cables separately from high-voltage power conductors where practical to reduce electrical interference.
- Avoid excessive cable bending, connector strain, and unsupported cable loads.
- Restore system power according to the applicable maintenance procedure and verify communication status through the system diagnostic interface.
