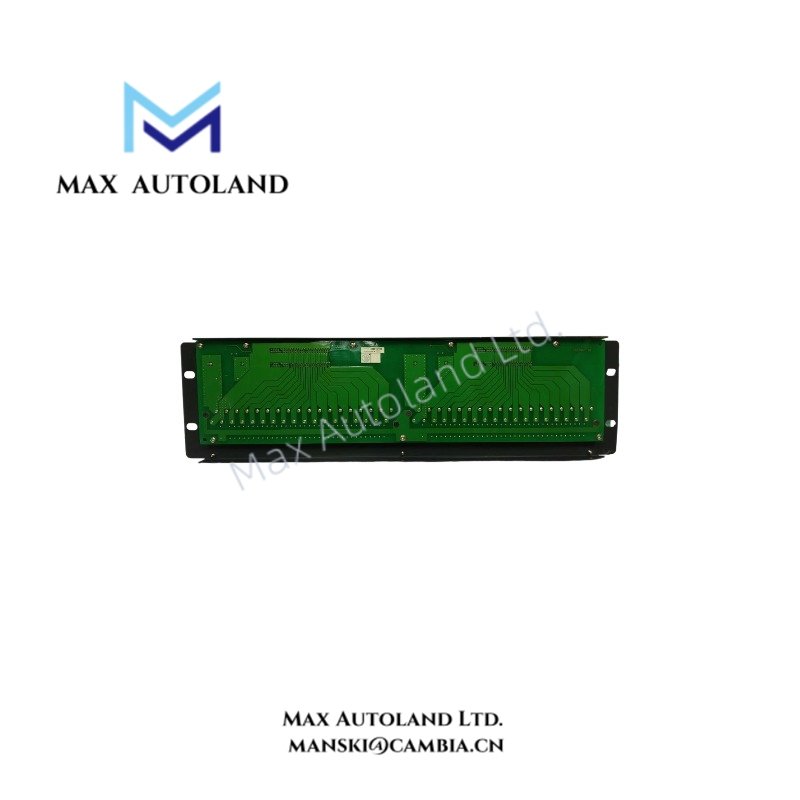

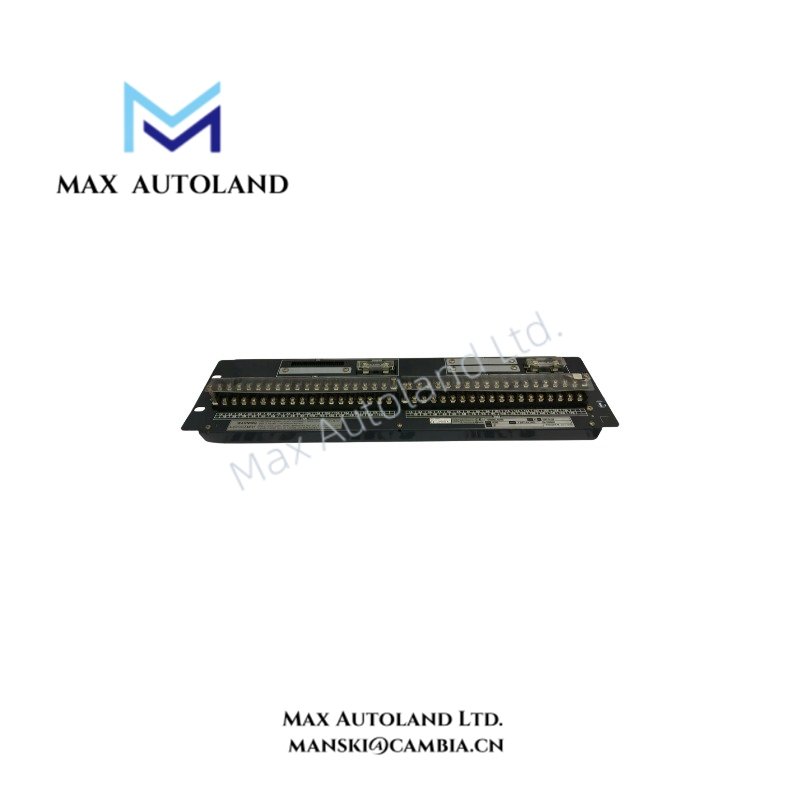

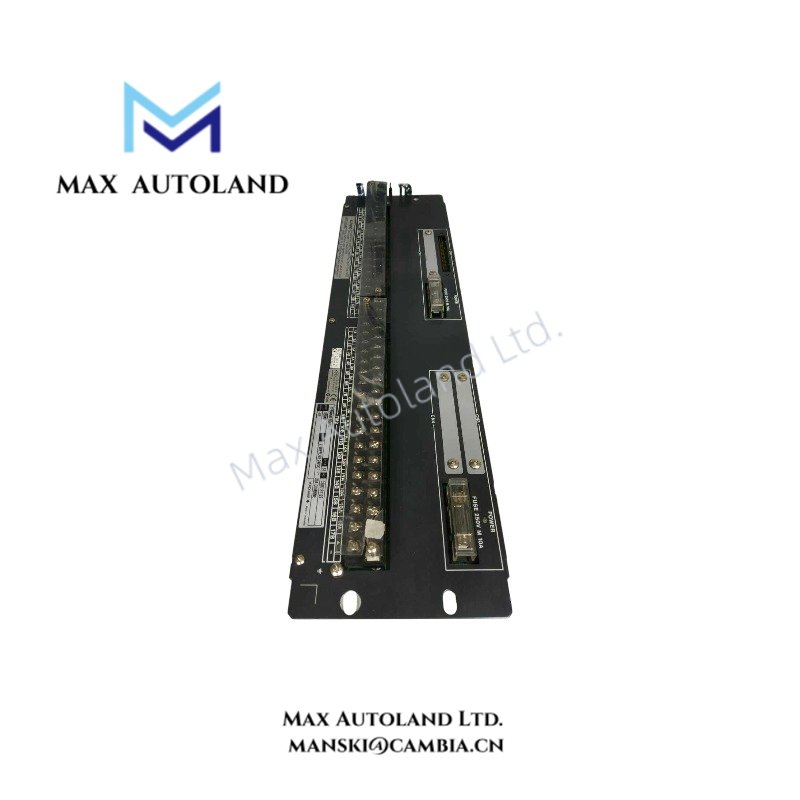

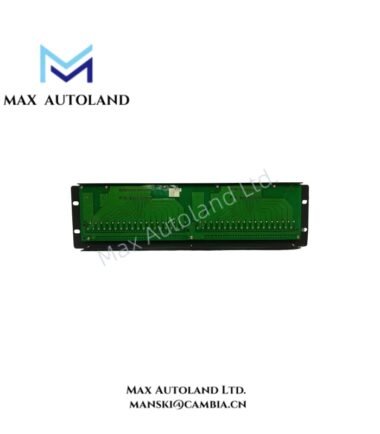

Yokogawa SED4D-01 Digital Terminal Board

Hardware Specifications

ProSafe-RS Digital Signal Termination and Surge Protection

The SED4D-01 terminates field wiring through M4 screw terminals and connects to compatible digital I/O modules using the AKB331 cable. Its integrated surge absorber provides electrical surge protection at the terminal board.

For redundant configurations, the board supports the specified 16-channel x 2 arrangement. However, the exact channel allocation and redundancy wiring depend on the associated system configuration.

The supplied specifications identify SDV144, SDV531, and SDV541 as compatible I/O modules. Verify the applicable system hardware configuration before replacing or integrating the terminal board.

Frequently Asked Questions (FAQ)

Q: Which cable connects the SED4D-01 to the I/O system?

A: The dedicated connection cable is AKB331. Confirm the cable configuration against the installed I/O module and system wiring documentation.

Q: Does the SED4D-01 include surge protection?

A: Yes. The SED4D-01 includes an integrated surge absorber.

Q: Can the SED4D-01 operate in a redundant configuration?

A: The specified hardware supports single and dual-redundant configurations with a 16-channel x 2 arrangement. Confirm the required wiring and module compatibility before installation.

Field Installation Guidelines

1. Verify the terminal board model and inspect the assembly for physical damage before installation.
2. Confirm compatibility with the installed ProSafe-RS I/O modules.
3. Mount the board securely in the designated 19-inch rack or marshalling panel.
4. Connect the AKB331 cable according to the applicable system wiring documentation.
5. Terminate field conductors at the designated M4 screw terminals.
6. Route signal wiring separately from high-voltage and high-current power conductors to reduce electrical interference.
7. Apply the specified shielding and grounding arrangement from the system installation manual.
8. Verify terminal connections, cable routing, and insulation condition before energizing the associated system.

Replacement Note: Yokogawa SED4D-01 is discontinued. The identified replacement model is SED4D-06. Confirm mechanical dimensions, terminal assignments, cable compatibility, and system configuration before substitution.
