Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

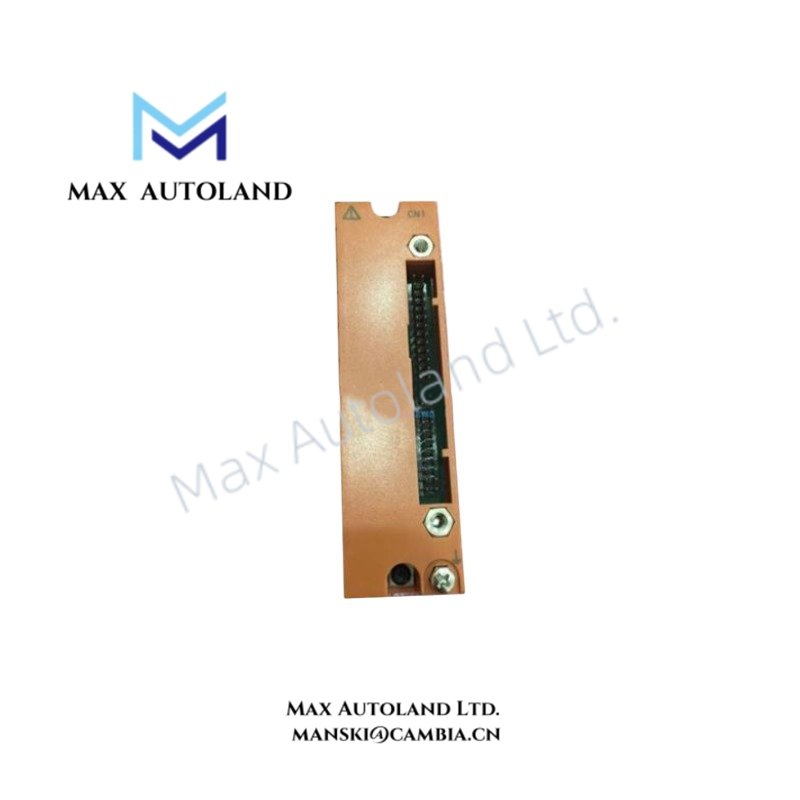

| Model | ATI3S-001 |
| Brand | Yokogawa Electric Corporation |
| Origin | Japan |
| Product Type | Pressure Clamp Terminal Block |
| System Compatibility | Yokogawa CENTUM VP / CS 3000 DCS Systems |
| Compatible Modules | AAI135, AAI835, AAP135 and related I/O interface modules |
| Terminal Connection Type | Pressure clamp terminal connection |
| Wiring Capability | Standard industrial field signal wiring |
| Mounting Type | DIN rail mounting or panel attachment |
| Enclosure Protection | IP20 |
| Operating Temp | -20 deg C to +60 deg C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Power Consumption | Passive terminal interface, no external power consumption |
Yokogawa DCS Signal Termination and Isolation Interface
The ATI3S-001 provides a termination point between field devices and Yokogawa CENTUM VP I/O modules. It supports analog and pulse signal routing through a pressure clamp connection structure. Therefore, technicians can complete field wiring without dedicated crimping tools.
The terminal block design maintains stable conductor contact under cabinet vibration and thermal cycling conditions. In addition, the module supports organized signal routing inside control cabinets and reduces wiring complexity for Yokogawa isolated I/O configurations.
For Yokogawa process control applications, the ATI3S-001 installation method follows standard DCS field interface practices. Signal wiring should maintain separation between low-level analog circuits and high-voltage power conductors to reduce electrical interference.
Frequently Asked Questions
Q: Does the Yokogawa ATI3S-001 require external power supply?
A: No. The ATI3S-001 is a passive pressure clamp terminal interface and does not require external power input.
Q: Which Yokogawa I/O modules can connect with the ATI3S-001?
A: The ATI3S-001 is designed for connection with compatible CENTUM VP and CS 3000 I/O modules, including AAI135, AAI835, and AAP135 series interfaces.
Q: What wiring practice should be used during installation?
A: Field signal cables should be routed separately from power cables, and cable shielding should follow the grounding requirements of the Yokogawa DCS installation design.
Field Installation Guidelines
- Install the ATI3S-001 inside a suitable control cabinet or terminal enclosure with appropriate mechanical support.
- Verify terminal assignment before connecting field signal cables to prevent incorrect loop wiring.
- Use approved conductor sizes compatible with the pressure clamp terminal structure.
- Maintain shielded cable grounding practices according to the Yokogawa CENTUM VP system installation documentation.
- Avoid parallel routing with high-current power lines to reduce electromagnetic interference.
- Check conductor insertion depth and terminal locking condition after wiring completion.
