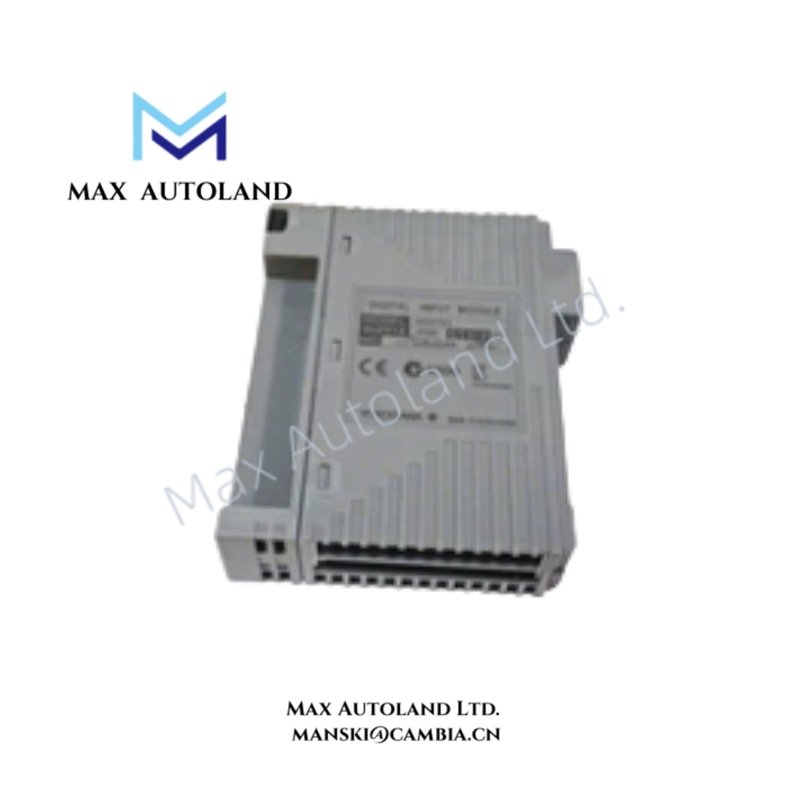

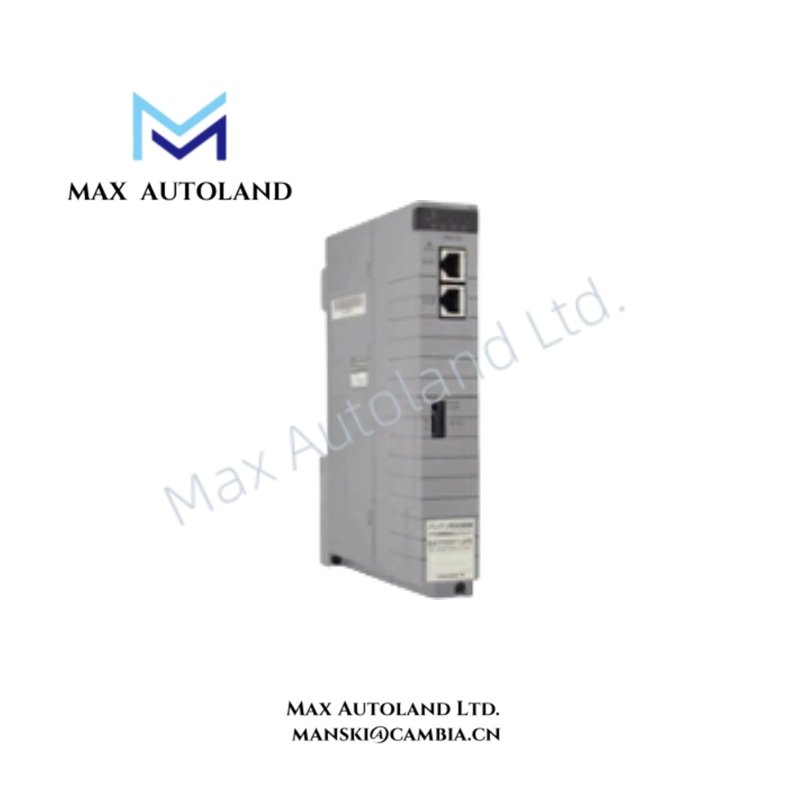

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ASD533-S00 (Base Model: ASD533) |
| Brand | Yokogawa Electric Corporation |
| Origin | Japan |
| Module Type | Digital Output Module with Built-in Barrier |
| System Compatibility | CENTUM VP / CENTUM CS 3000 FIO Systems |
| Output Channels | 8 channels, fully isolated |
| Output Signal | Minimum 12 V at 40 mA load |
| Open Circuit Voltage | Up to 26 V at 0 mA |
| Maximum Output Current | 40 mA per channel |
| Withstanding Voltage | 1500 VAC field-to-system and channel-to-channel |
| Barrier Function | Built-in intrinsic safety isolated interface |
| Output Response Time | <= 10 ms |
| Power Consumption | 150 mA at 5 VDC, 500 mA at 24 VDC |
| Weight | Approx. 0.30 kg |
| Operating Temp | -20 deg C to 70 deg C |
| Storage Temp | -40 deg C to 85 deg C |
| Ambient Humidity | 5% to 95% RH, non-condensing |
| Terminal Block Compatibility | ATSD3S for single configuration; ATSD3D for dual-redundant configuration |
| Coating Option | /G3 conformal coating option for corrosive environments |
Yokogawa DCS Signal Isolation and Field Interface Characteristics
The ASD533-S00 provides direct execution of digital output commands from the Yokogawa FIO subsystem to field devices. The module integrates an intrinsic safety barrier, which limits electrical energy transferred to hazardous-area circuits.
Furthermore, the built-in isolation design separates field-side circuits from system-side circuits. This configuration reduces ground loop effects and limits electrical interference between output channels.
The module supports Yokogawa process control architectures that require isolated discrete output handling. It applies channel-to-channel isolation to maintain signal separation during switching operations. In addition, the module design supports field interface requirements where isolated digital contacts, actuators, and valve control elements require controlled output energy.
Frequently Asked Questions
Q: Does the ASD533-S00 require an external intrinsic safety barrier?
A: No. The module integrates a built-in barrier function, allowing direct connection to compatible field circuits within the specified system configuration.
Q: Can the ASD533-S00 operate in a redundant configuration?
A: Yes. The module supports dual-redundant installation when used with the compatible ATSD3D terminal block configuration.
Q: What maintenance function does the module support during system operation?
A: The ASD533-S00 supports hot-swappable maintenance within the applicable Yokogawa FIO configuration, allowing module replacement without complete system shutdown when system procedures permit.
Field Installation Guidelines
- Install the ASD533-S00 only in the designated Yokogawa FIO subsystem slot and verify the hardware configuration before applying power.
- Confirm terminal block selection according to the required single or dual-redundant arrangement.
- Separate field signal wiring from high-voltage power cables to reduce electrical interference.
- Connect cable shields according to the plant grounding standard and avoid creating additional ground loops.
- Verify field device voltage and current requirements before connecting output channels.
- Check barrier-related wiring requirements before commissioning circuits located in hazardous areas.
- Inspect terminal connections and module seating condition during preventive maintenance activities.
