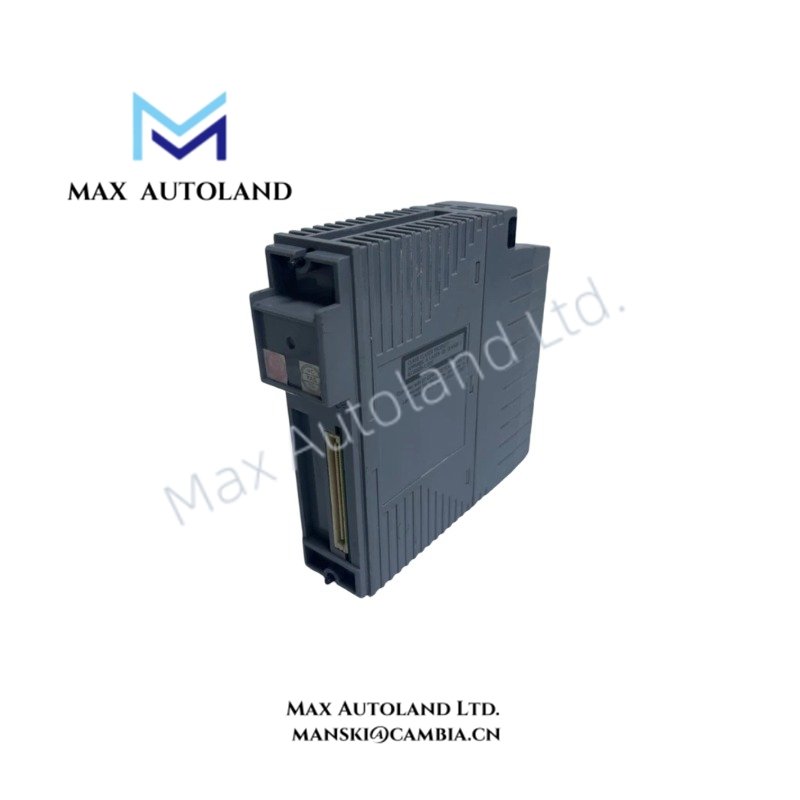

Overview
Suffix Breakdown & Model Matrix
| Model Code | Specification |
|---|---|

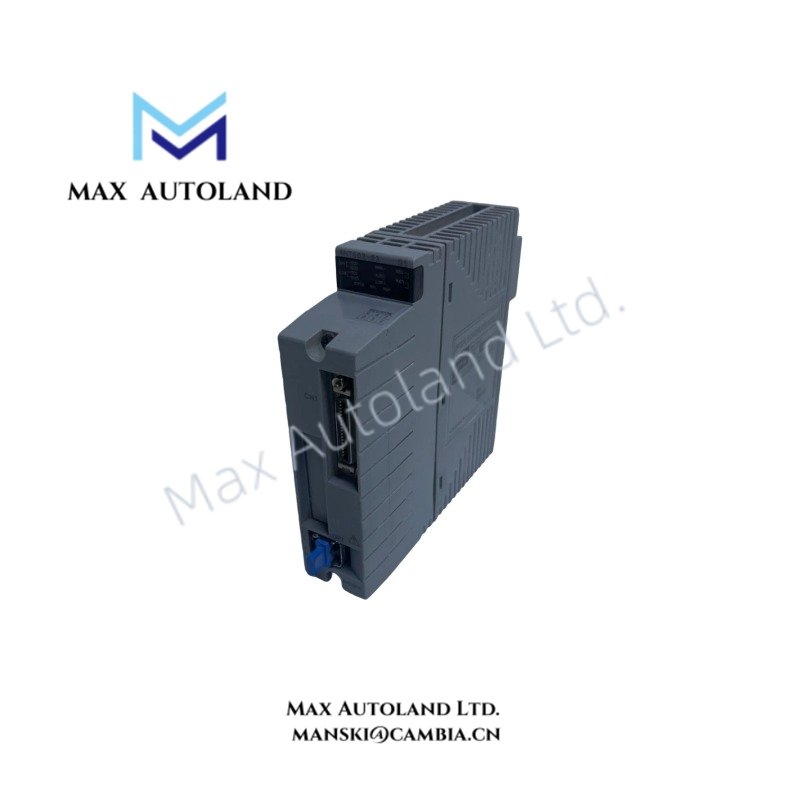

| ASD533-S00 | Digital Output Module with Built-in Barrier |
| ASD533 | Base model: 8-channel isolated digital output module |
| -S | Standard type |
| 00 | Fixed suffix designation |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ASD533-S00 |
| Brand | Yokogawa |
| Origin | Japan |
| Module Type | Digital Output Module with Built-in Barrier |
| System Compatibility | CENTUM VP / CENTUM CS 3000 FIO System |
| Number of Channels | 8 isolated digital output channels |
| Output Type | Digital voltage/current output |
| Output Voltage | Greater than 12 V at 40 mA |
| Output Current | Up to 40 mA per channel |
| Isolation | Field-to-system and channel-to-channel galvanic isolation |
| Redundancy Support | Dual-redundant configuration supported |
| Compatible Terminal Blocks | ATSD3S single configuration, ATSD3D dual-redundant configuration |
| Hot Swap Capability | Supported for online module replacement |
| Operating Temp | -20 deg C to 70 deg C |
| Storage Temp | -40 deg C to 85 deg C |
| Ambient Humidity | 5% to 95% RH, non-condensing |
| Optional Coating | /G3 conformal coating for corrosive environments |
| Weight | Approx. 0.5 kg |
DCS Process Control Signal Isolation
The Yokogawa ASD533-S00 integrates output switching and intrinsic safety barrier functions within one FIO module structure. Therefore, it reduces additional barrier hardware requirements between the control system and field devices.
The module provides channel-to-channel isolation to separate individual output circuits. In addition, the design supports protection against field-side electrical disturbances while maintaining digital output execution from CENTUM VP and CENTUM CS 3000 controllers.
For Yokogawa process control applications, the module follows DCS I/O engineering practices that include isolated signal routing, field cable separation, and controlled grounding methods. Furthermore, the built-in barrier structure supports connection to field equipment requiring controlled energy transfer.
Frequently Asked Questions
Q: Does the ASD533-S00 support online replacement during system operation?
A: Yes. The module supports hot swap operation, allowing replacement procedures without shutting down the complete FIO subsystem. Field wiring and terminal block conditions must be checked before removal.
Q: What terminal blocks are compatible with the ASD533-S00?
A: The module supports ATSD3S for single configuration and ATSD3D for dual-redundant configuration.
Q: Does the ASD533-S00 provide electrical isolation between output channels?
A: Yes. The module provides channel-to-channel and field-to-system galvanic isolation for digital output circuits.
Field Installation Guidelines
- Install the ASD533-S00 inside the designated Yokogawa FIO node according to CENTUM VP or CENTUM CS 3000 hardware configuration requirements.
- Verify terminal block compatibility before connecting field wiring.
- Separate digital output cables from high-voltage power cables to reduce electromagnetic interference.
- Apply proper cable shielding and grounding practices according to plant electrical standards.
- Confirm field device operating voltage and current requirements before energizing output channels.
- Check barrier-related wiring conditions before connecting devices installed in hazardous areas.
- Maintain correct module insertion and locking procedures during installation or replacement operations.
