Overview

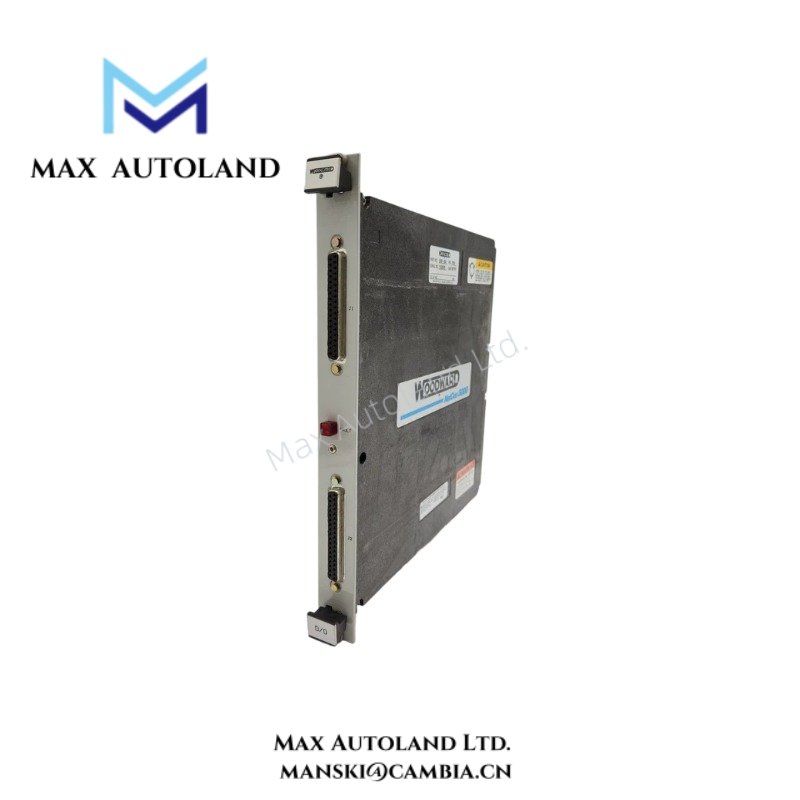

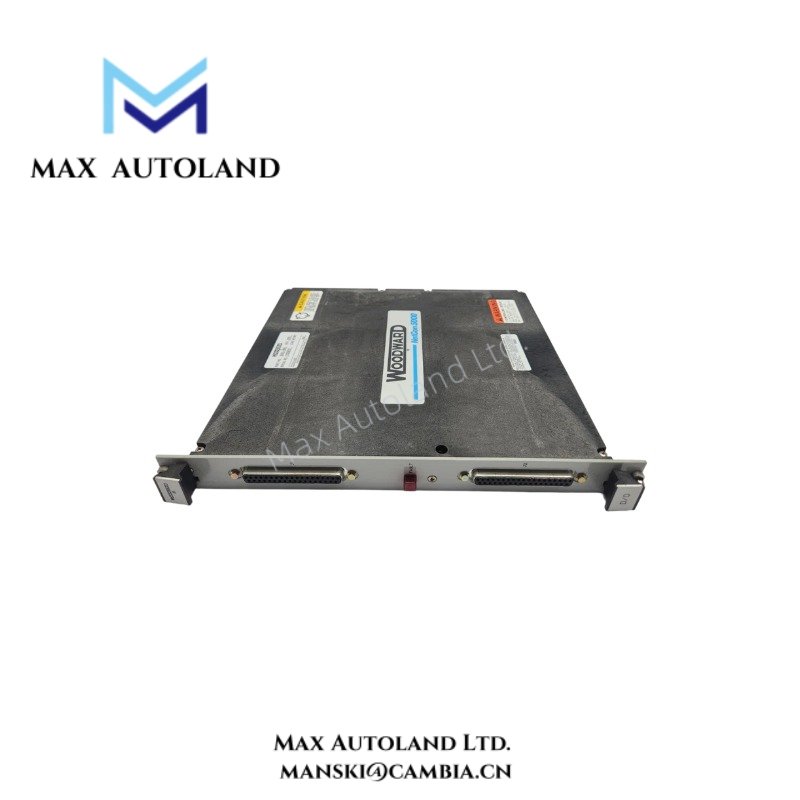

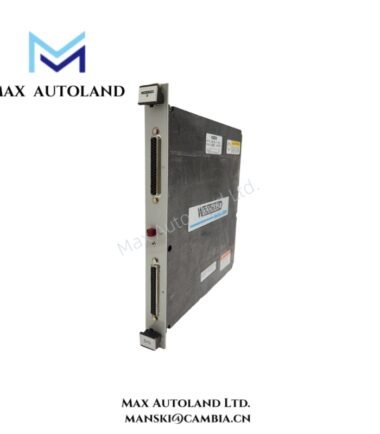

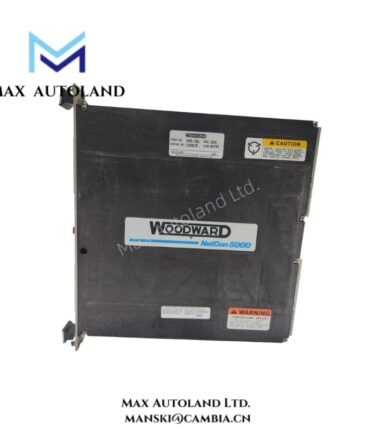

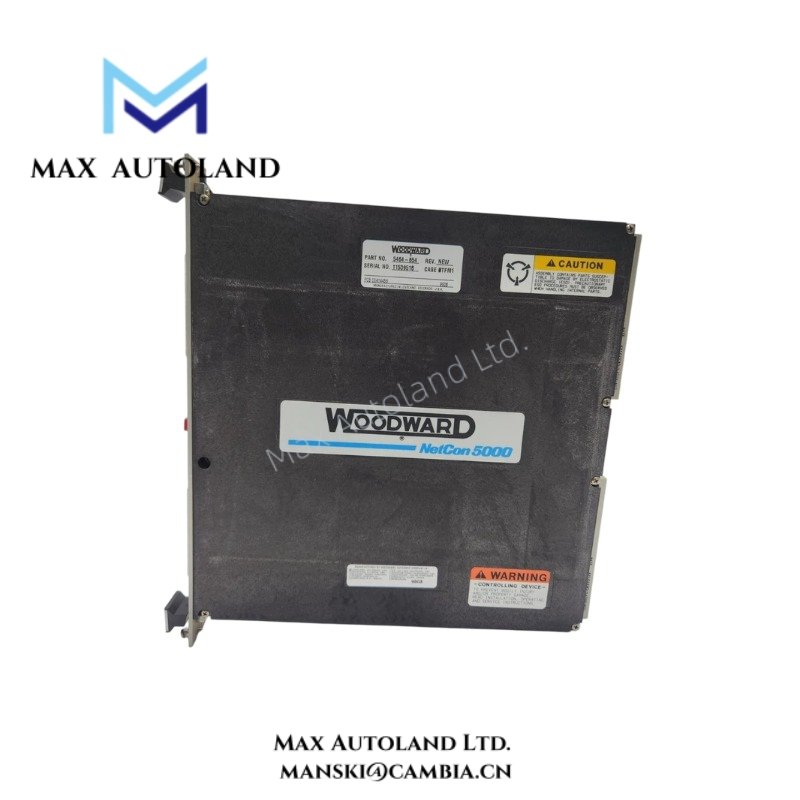

The 5464-654 is a Woodward discrete output module designed for high-density industrial control applications.
It provides sixty-four independent output channels for precise actuator and system switching control.
Moreover, the module ensures stable signal distribution across large-scale automation systems.
Engineers use 5464-654 to achieve efficient multi-point control in turbine and process environments.
Specification
| Parameter | Specification |
|---|---|
| Model | 5464-654 |
| Manufacturer | Woodward |
| Series | Discrete Output Module Series |
| Module Type | 64-Channel Discrete Output Module |
| Output Channels | 64 independent digital output channels |
| Output Type | Discrete switching output signals |
| Load Capacity | Industrial-grade output load handling capability |
| Switching Function | High-speed ON/OFF control switching |
| Output Isolation | Channel-to-channel electrical isolation |
| Response Time | Fast real-time switching response |
| Control Interface | Woodward system backplane interface |
| Input Control Signal | System-level digital control commands |
| Power Supply | 24 V DC nominal |
| Operating Voltage Range | 18–32 V DC |
| Power Consumption | Low-power optimized industrial design |
| Diagnostics | Built-in channel and system fault detection |
| LED Indicators | Per-channel status and system fault LEDs |
| Protection Features | Overload, short-circuit, and thermal protection |
| Dimensions | Approx. 180 × 140 × 50 mm |
| Weight | Approx. 1.2–1.8 kg |
| Mounting Type | Rack-mounted industrial module |
| Housing Material | Industrial-grade protective enclosure |
| Cooling Method | Passive convection cooling design |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Vibration Resistance | Designed for industrial and turbine environments |
| Application | Turbine control, process automation, industrial I/O systems |
FAQ
Q1: Is the product new and original?
Yes, the 5464-654 is brand new, original, and factory sealed.
Q2: Do you have stock available?
Yes, we maintain 5464-654 in stock for fast delivery processing.
Q3: What is the delivery time?
We ship within 3 days to 2 weeks depending on order size and logistics.
Q4: Which logistics do you use?
We commonly use DHL and other reliable international shipping carriers.
Q5: What if there is a quality issue?
We support 30-day returns if the 5464-654 module has any quality problems.
Q6: How many output channels does it support?
The 5464-654 supports 64 independent discrete output channels.
