Overview

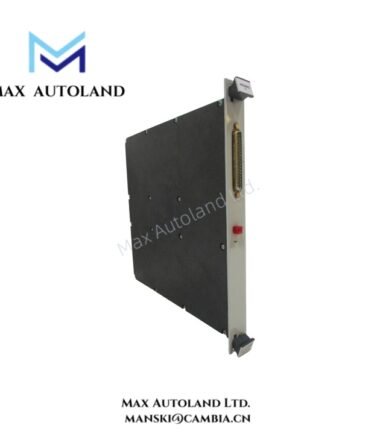

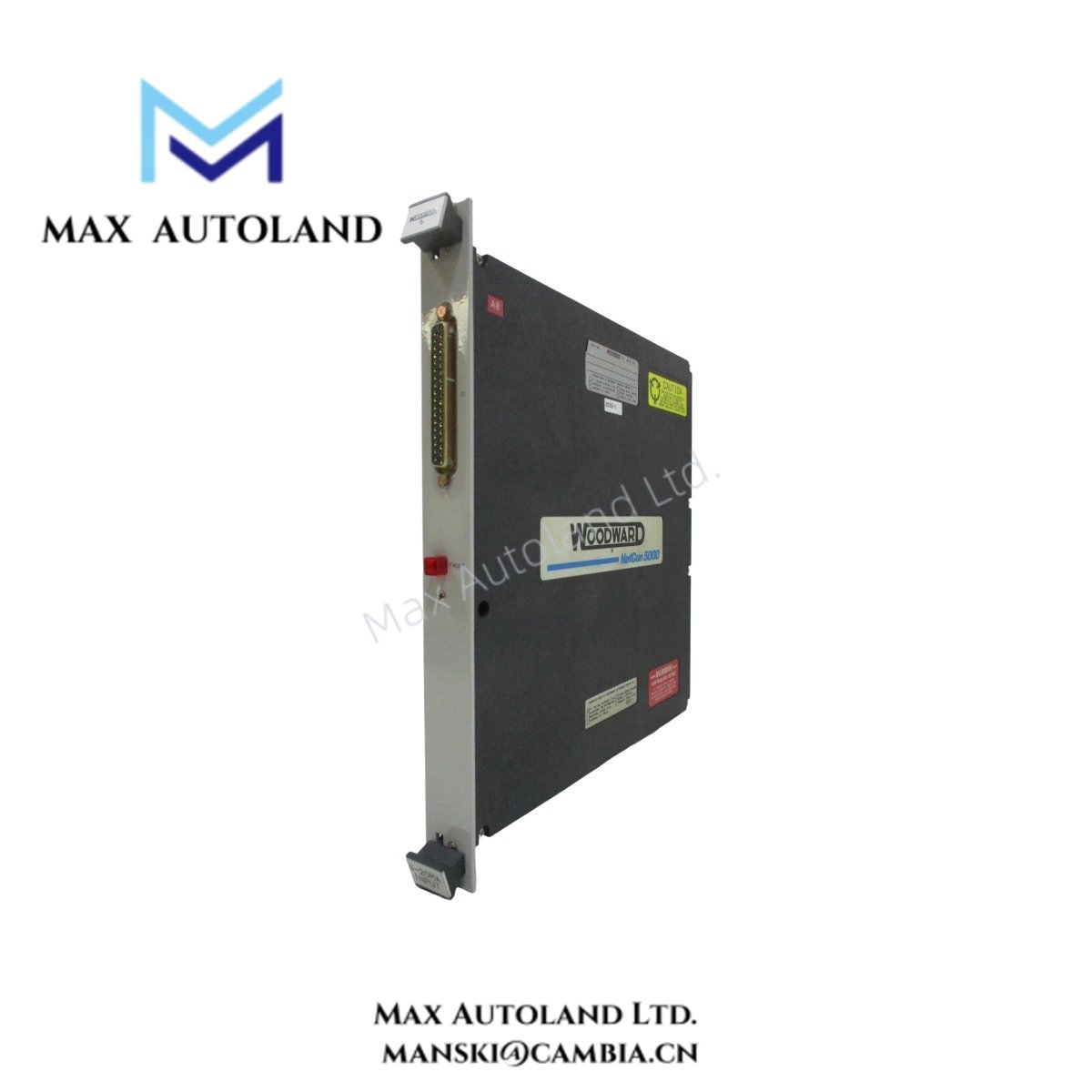

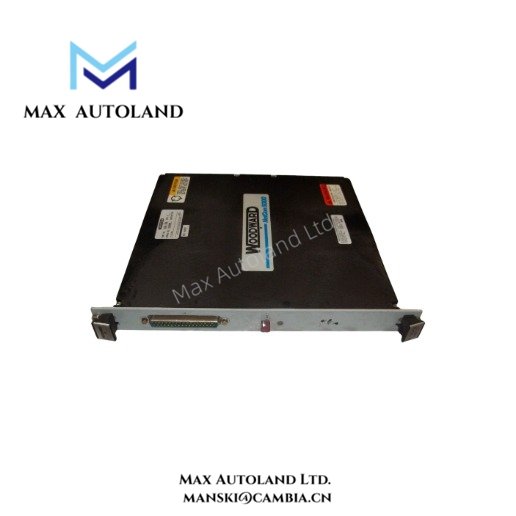

The Woodward 5463-785 Isolated Analog Input Module provides precise signal acquisition for industrial digital control systems. It supports multiple isolated analog inputs, ensuring accurate measurement without interference between channels. The module integrates seamlessly into Netcon networks, delivering reliable data for advanced control applications.
Designed for harsh industrial environments, the 5463-785 module features robust construction and high-voltage isolation to maintain stability under electrical noise and environmental stress. Its compact form factor allows easy panel mounting and efficient wiring.
Key Features
- Provides isolated analog inputs for accurate signal measurement
- Compatible with Woodward Netcon digital control networks
- Reduces interference between channels with high-voltage isolation
- Compact design simplifies installation in control panels
- Industrial-grade durability ensures stable operation in demanding conditions
Specification
| Category | Parameter | Specification |
|---|---|---|
| General | Manufacturer | Woodward |
| Series | Netcon 5000 | |
| Model | 5463-785 | |
| Product Type | Isolated Analog Input Module | |
| Application | Digital control signal acquisition | |
| Electrical | Input Channels | Multiple isolated analog channels |
| Input Range | ±10 V, ±5 V, 0–20 mA | |
| Isolation | ≥1500 V channel-to-channel | |
| Power Supply | 24 V DC nominal | |
| Power Consumption | ≤8 W | |
| Interfaces | Field Wiring | Terminal block connectors |
| Communication | Netcon digital network compatible | |
| Mechanical | Mounting | Panel or rack-mounted |
| Dimensions (W × H × D) | 160 × 120 × 50 mm | |
| Weight | 1.2 kg | |
| Construction | Industrial-grade PCB with protective housing | |
| Environmental | Operating Temperature | 0–60 °C |
| Storage Temperature | -40–85 °C | |
| Humidity | 5–95% non-condensing | |
| Vibration Resistance | 1.0 g (10–500 Hz) | |
| Compliance | Certifications | CE, UL |
| EMC | IEC compliant |
FAQ
Q1: Is the Woodward 5463-785 module original and brand new?
A1: Yes, the 5463-785 module is fully original and sourced directly from certified Woodward distributors.
Q2: How quickly can the module be shipped?
A2: Shipping usually occurs within 3 days to 2 weeks depending on order size, using DHL or similar carriers.
Q3: Which networks is the 5463-785 compatible with?
A3: It works seamlessly with Woodward Netcon digital control systems for analog signal acquisition.
Q4: Can it operate in industrial environments with electrical noise?
A4: Yes, the module has high-voltage isolation and robust construction for reliable performance under harsh conditions.
