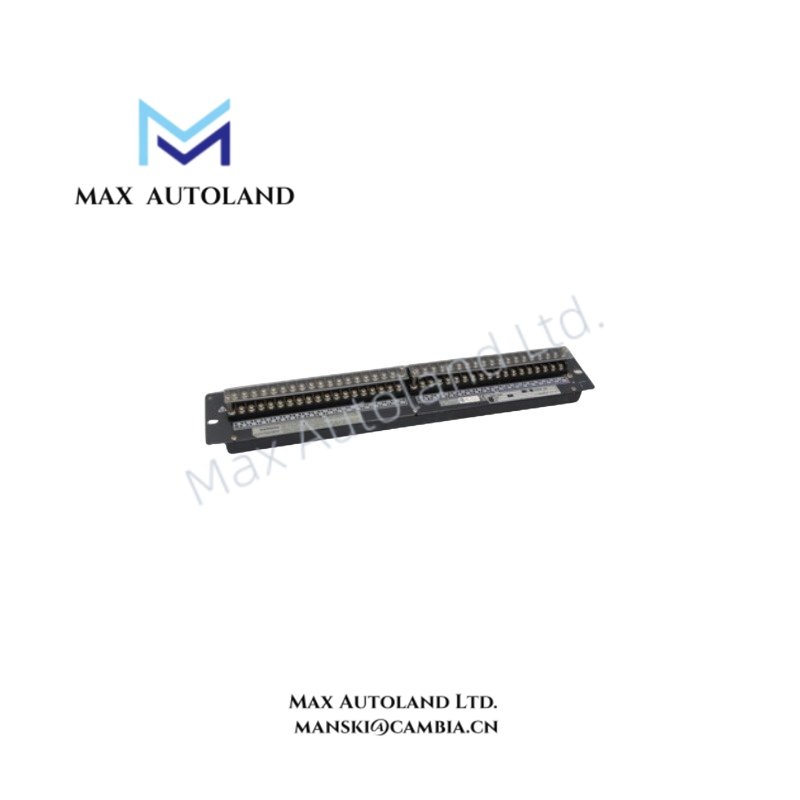

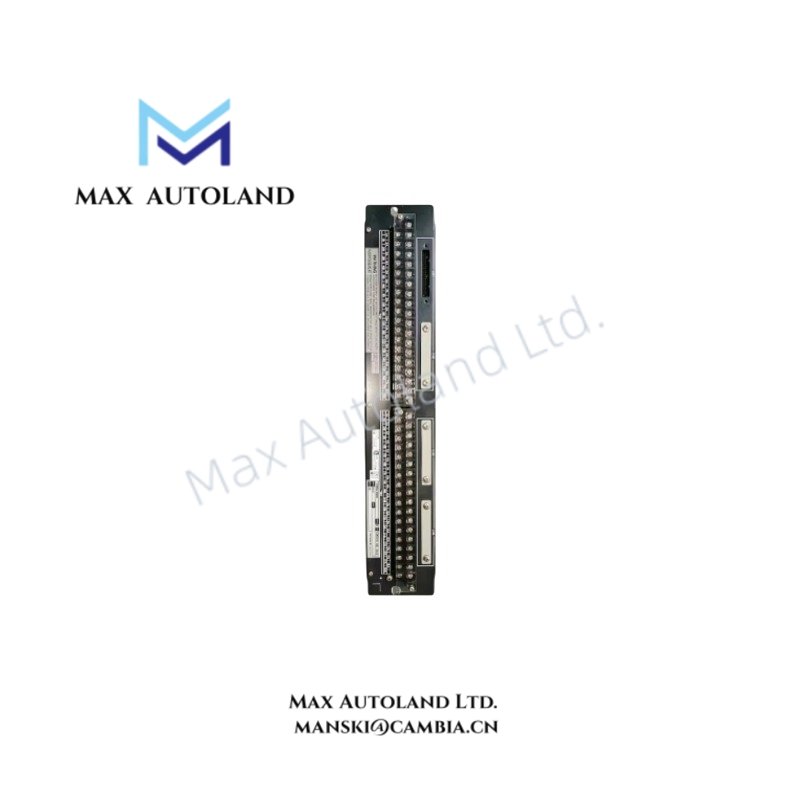

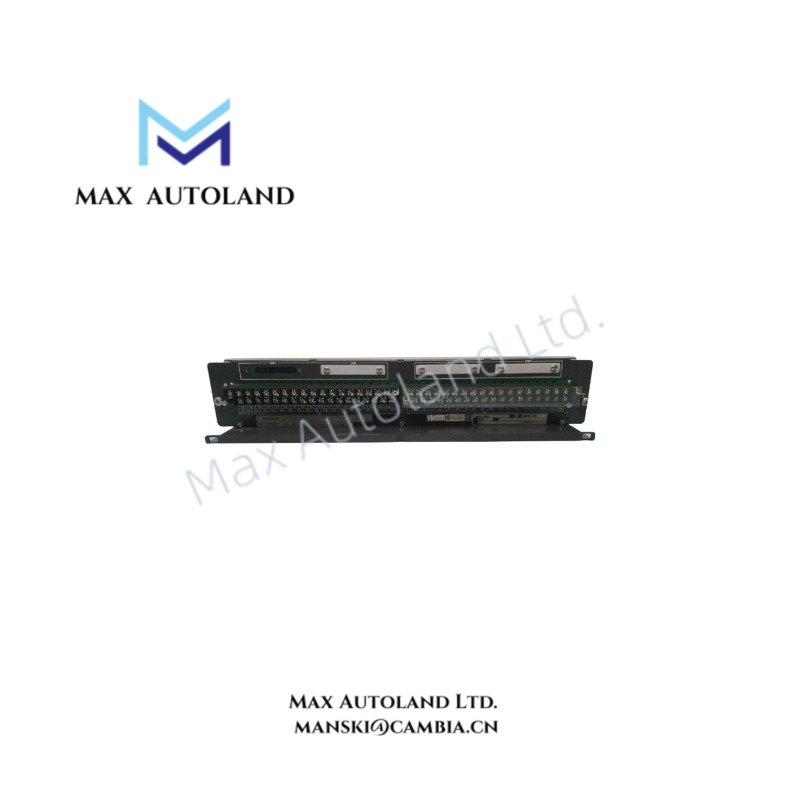

Terminal Board Yokogawa AEA4D-01

Technical Summary

The AEA4D-01 functions as a passive field termination assembly used to interface Yokogawa analog I/O modules such as AAI135, AAI141, AAI143, AAI841, AAV141, AAV142, and related variants. It provides structured screw-terminal field wiring distribution for up to 16 points per channel set, supporting both single and redundant I/O configurations. The board is designed for rack or enclosure mounting using M4 hardware, enabling structured marshalling between field instrumentation and I/O modules in CENTUM CS / VP architectures.

Signal paths are routed through fixed terminal groups to corresponding module channels, maintaining deterministic wiring topology between field devices and DCS input/output cards. No active signal conditioning or conversion is performed at the board level.

Suffix Breakdown & Model Matrix

No validated suffix segmentation or functional sub-variant definition is provided in Yokogawa standard documentation for AEA4D-01. Model designation is treated as a single fixed hardware identifier without documented modular suffix decomposition.

Hardware Specifications

Process Control I/O Termination Characteristics

Within Yokogawa analog I/O architecture, the AEA4D-01 serves as a fixed termination interface supporting 4-20 mA loop wiring distribution and field signal aggregation toward I/O modules. Channel routing is mechanically defined via terminal grouping aligned with CENTUM I/O module pin mapping. Redundant module configurations utilize paired channel mapping (16 points x 2) for dual-redundant input structures. No field protocol conversion (HART / Fieldbus) is performed at the termination level; such processing resides in the associated I/O module layer.

Frequently Asked Questions

Q: Does the AEA4D-01 perform signal conditioning or A/D conversion?
A: No. The AEA4D-01 is a passive terminal board. All signal conversion and processing is handled by the connected Yokogawa analog I/O modules.

Q: Can the board be used in redundant I/O configurations?
A: Yes. It supports single and dual-redundant module wiring layouts, typically used with redundant AAI/AAV module pairs.

Q: Is hot-swap of field wiring supported?
A: Field wiring is screw-terminal based and not designed for live reconnection under energized loop conditions. System procedures require loop isolation before maintenance.

Field Installation Guidelines

• Ensure all field wiring is de-energized prior to terminal connection.
• Maintain shield continuity and ground termination at designated grounding points per DCS cabinet design rules.
• Use M4 mounting hardware with controlled torque to avoid PCB or terminal stress.
• Route analog signal cables separately from high-voltage or switching conductors to minimize inductive coupling.
• Verify channel mapping against Yokogawa I/O assignment drawings for AAI/AAV module compatibility before commissioning.
