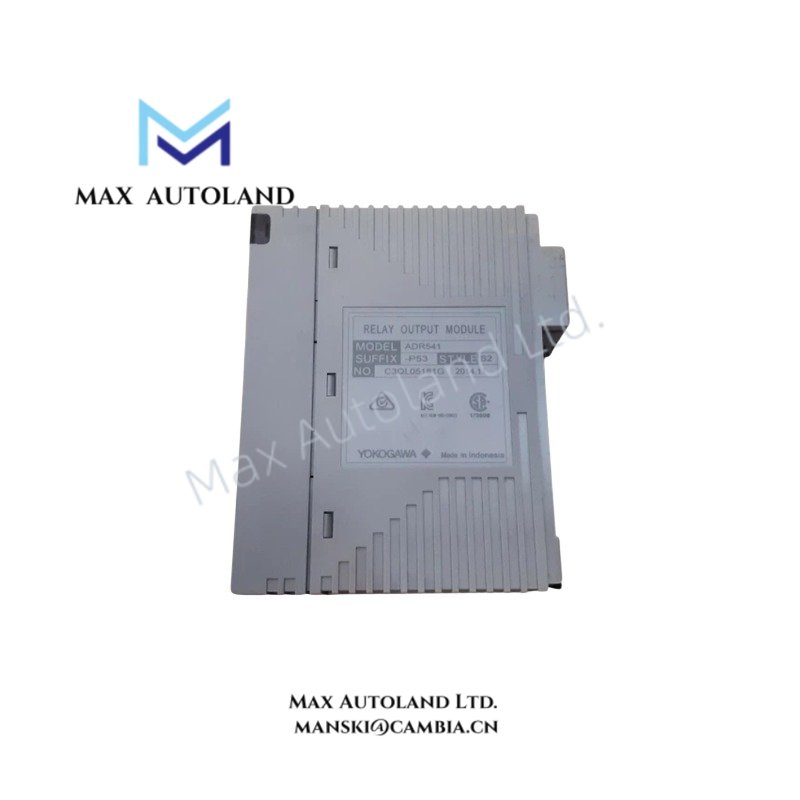

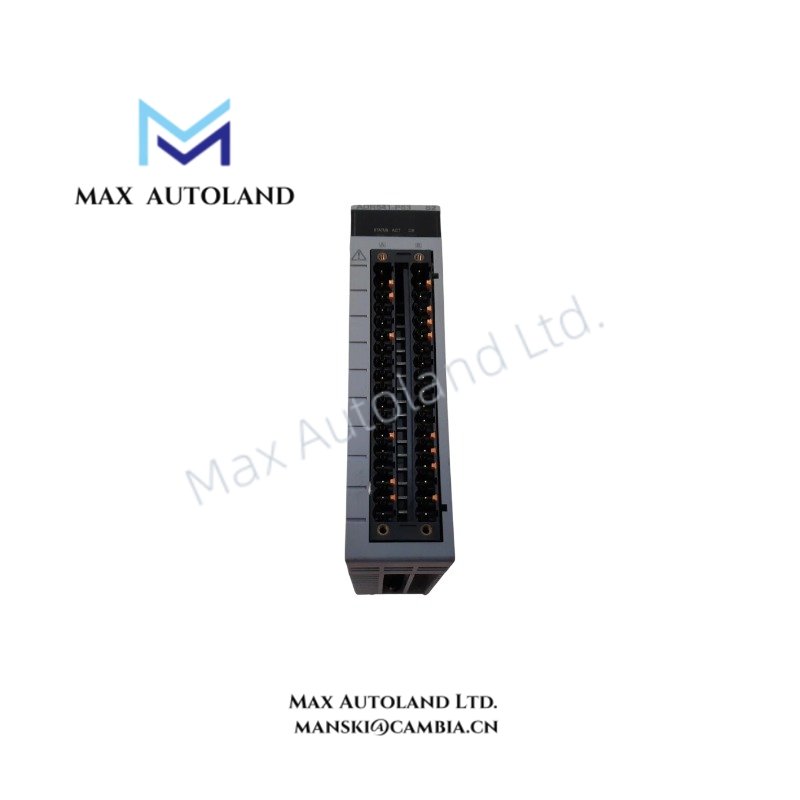

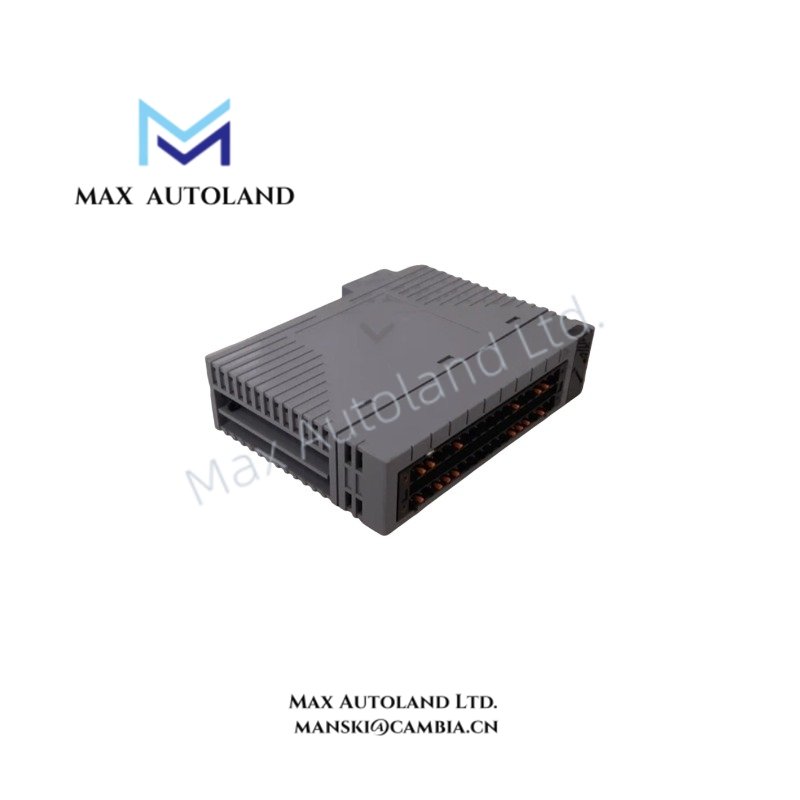

Relay Output Module Yokogawa ADR541-PE0/CAS70

Hardware Specifications

ESB Bus Integrated Relay Execution Characteristics

Configured for distributed output execution in Yokogawa ESB Bus architecture, the ADR541 series relay module performs channel-level switching with deterministic backplane synchronization. In ESB Bus Node Unit configurations, relay actuation signals are transmitted through internal bus communication without direct field wiring exposure to logic layers.

Channel-to-channel electrical separation is implemented to maintain isolation between relay groups and system-side circuitry. The module supports mixed output modes including ON/OFF status, pulse width generation, and time-proportioning control, allowing deterministic actuation of field loads under DCS command structures.

Redundant deployment is supported at system architecture level, enabling parallel relay output paths under dual-node configurations for continuity of switching operation.

Frequently Asked Questions

Q: Can the ADR541-PE0/CAS70 be hot-swapped under ESB Bus Node Unit operation?
A: Hot-swap behavior depends on node unit configuration. Electrical isolation of ESB backplane is required prior to module insertion or removal to avoid relay contact disturbance.

Q: Does each relay channel support independent isolation from adjacent channels?
A: The module implements grouped common-side architecture with channel segmentation; isolation is defined between system and output sections rather than full per-channel galvanic separation.

Q: What is the behavior during redundant system switching?
A: In dual-redundant configurations, output state synchronization is maintained at bus level; relay transition timing is governed by ESB bus update cycle and module response time (<= 12 ms typical).

Field Installation Guidelines

Relay output wiring shall be executed using pressure clamp terminals with AKB334 dedicated cabling. Shield termination shall be referenced to cabinet ground at a single-point grounding structure to avoid circulating currents.

Maintain separation between relay output wiring and low-level signal or communication lines to prevent electromagnetic coupling. Inductive loads must include appropriate suppression elements (flyback diode or RC snubber) to limit contact wear and voltage transients.

Insertion into ESB Bus Node Unit shall be performed with system power isolated. Mechanical seating must ensure full backplane connector engagement before energization.
