Overview

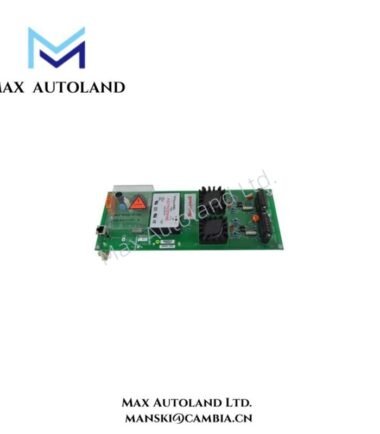

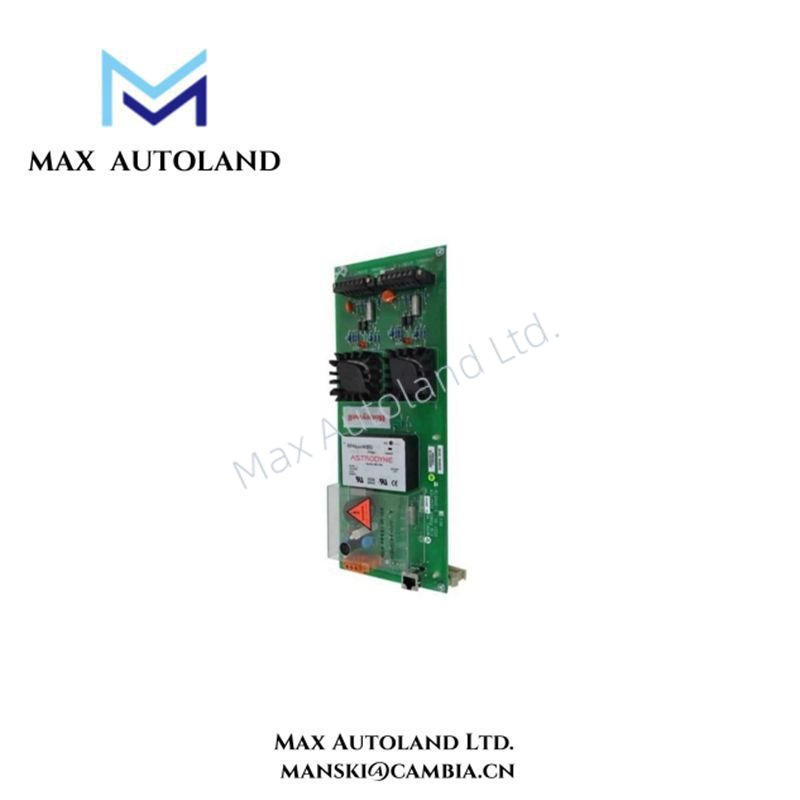

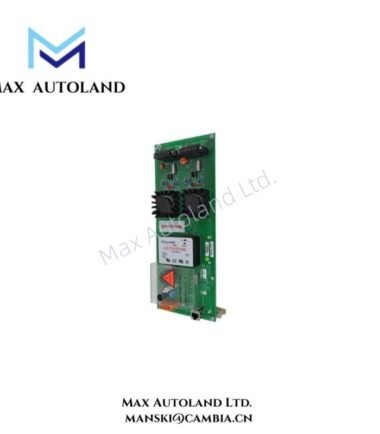

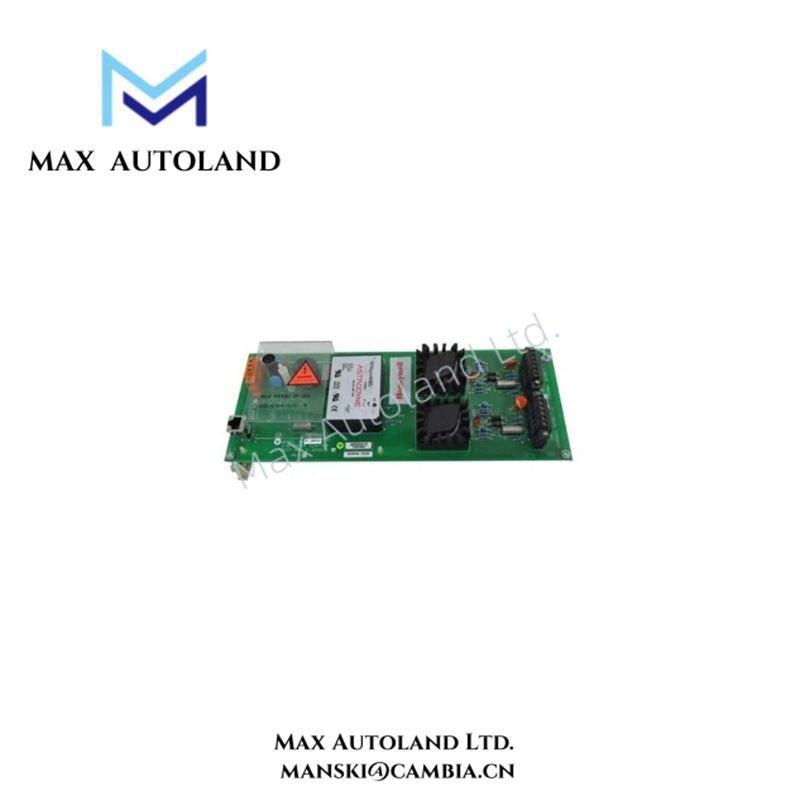

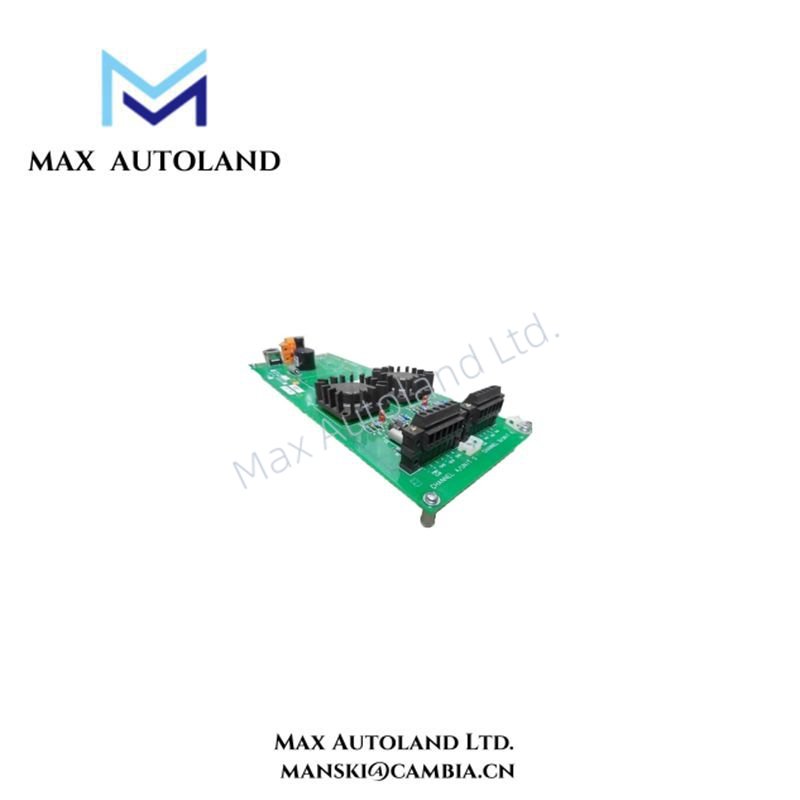

The Honeywell TC-SMPD01, also identified as the TC-SMPD01 SIM FTA Power Adapter, handles power adaptation and distribution for SIM Field Termination Assembly (FTA) hardware. The supplied description identifies a 24 VDC power interface. However, the exact output configuration and electrical ratings require confirmation against the manufacturer’s documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TC-SMPD01 |
| Brand | Honeywell |
| Product Type | SIM FTA Power Adapter |
| Origin | USA |
| Input Voltage | 20-30 VDC |
| Output Voltage | 12 VDC or 24 VDC |
| Output Current | Up to 2 A |
| Conversion Efficiency | Up to 95% |
| Overvoltage Protection | Approx. 14.5 VDC threshold stated |
| Overcurrent Protection | Approx. 2.5 A stated; unverified |
| Operating Temp | -20 to 70 deg C |
| Storage Temp | -40 to 85 deg C |
| Dimensions | Approx. 70 x 40 x 25 mm |
Power Distribution and Electrical Interface
The TC-SMPD01 serves as a power interface for compatible SIM FTA hardware. Therefore, installation requires a check of the supply voltage, output requirements, and connected load current. The supplied data does not confirm channel-to-channel isolation or direct support for 4-20 mA HART communication.
In addition, technicians should verify the adapter’s electrical ratings and connector layout against the relevant Honeywell documentation. This check helps prevent incorrect wiring and incompatible power connections.
Frequently Asked Questions
Q: What input voltage does the TC-SMPD01 support?
A: The supplied description identifies a 24 VDC power interface and lists an input range of 20-30 VDC. However, the manufacturer must confirm this range before installation.
Q: Does the adapter provide both 12 VDC and 24 VDC outputs?
A: The supplied data lists both output options but does not explain how the system selects them. Therefore, check the module documentation and the connected FTA requirements before applying power.
Q: What should technicians check before replacing the adapter?
A: First, compare the complete model number and connector layout. Next, verify supply polarity, output voltage, current demand, and FTA compatibility. Finally, inspect the wiring before restoring power.
Field Installation Guidelines
- First, isolate the power source and follow the site’s electrical safety procedures.
- Next, check the module label, terminal assignments, and wiring diagram.
- Then, confirm that the supply voltage and connected load match the manufacturer’s specifications.
- Keep power cables separate from sensitive analog and communication wiring where the cabinet design requires it.
- Also, follow the system’s grounding and shield termination rules. Do not assume that the adapter provides galvanic isolation.
- Finally, inspect all connections and verify the supply voltage before returning the circuit to service.
