Overview

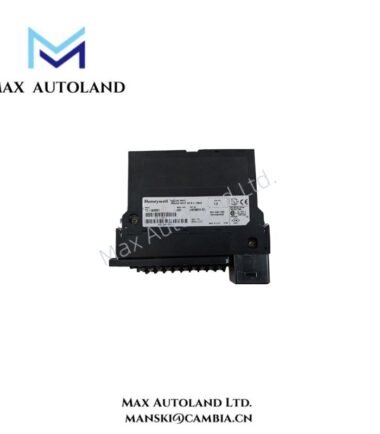

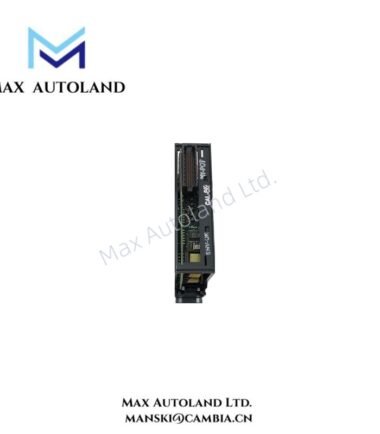

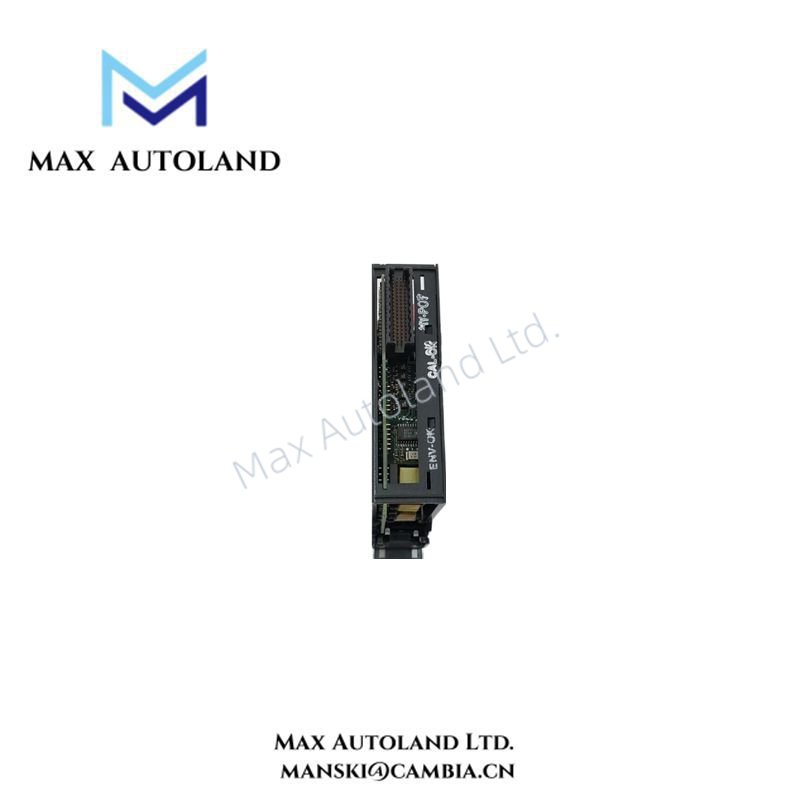

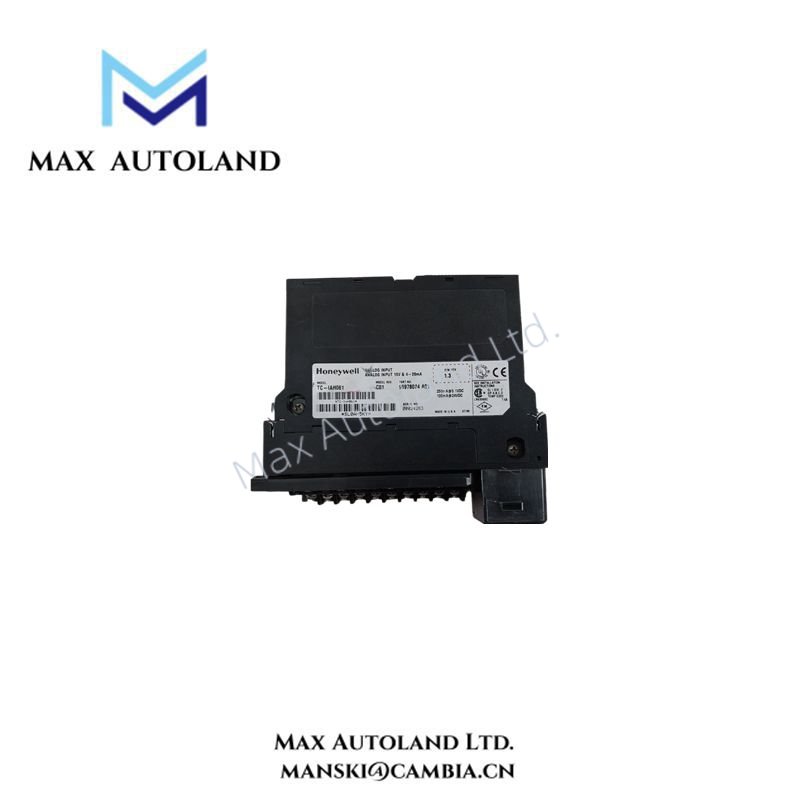

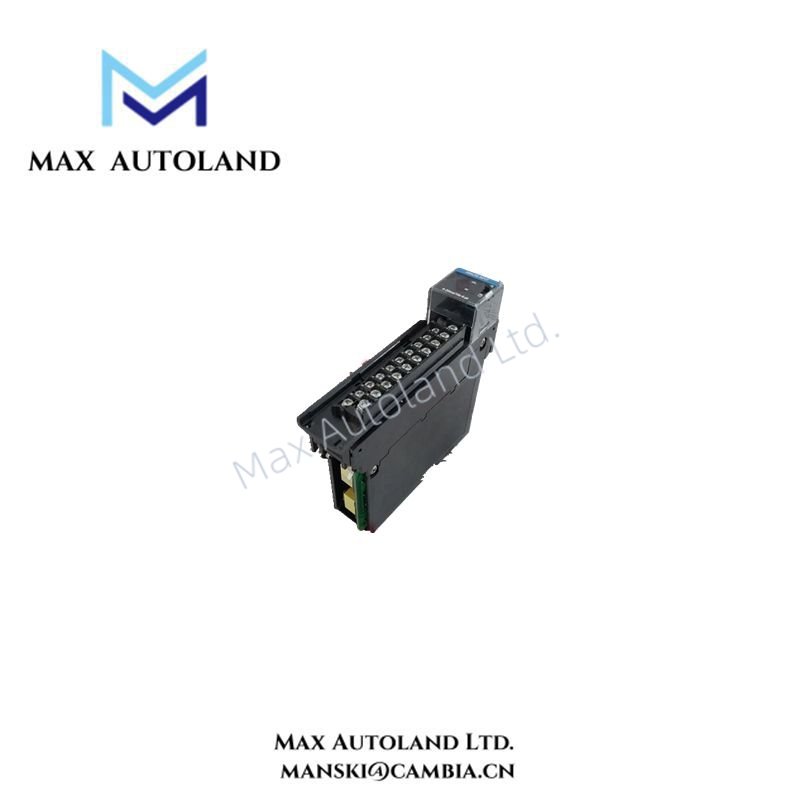

The Honeywell TC-IAH061 (part number 96978074-A01) is a high-performance analog input module engineered for the C200 series Distributed Control System (DCS). It provides six galvanically isolated input channels, each accepting 4–20 mA signals from sensors, transmitters, or other field devices.
Its 13-bit resolution ensures precise signal acquisition across the 0–21 mA range, while the module’s fast 25 ms update rate guarantees timely data for real-time control. The TC-IAH061 features robust overvoltage protection up to 24 VAC/VDC and maintains signal accuracy under RFI conditions.
Designed for industrial environments, this module delivers excellent reliability. Its 2546 VDC isolation between channels and between the user and the system prevents ground loops and interference, ensuring continuous and safe operation.
Specification
| Parameter | Specification |
|---|---|
| Model Number | TC-IAH061 |
| Part Number | 96978074-A01 |
| Product Type | Analog Input Module |
| Number of Channels | 6 galvanically isolated |
| Input Current Range | 0–21 mA |
| Input Resolution | 13 bits |
| Overvoltage Protection | 24 VAC/VDC continuous |
| RFI Immunity | Error <2% of range at 10 V/m, 27–1000 MHz |
| Module Update Rate | 25 ms for all channels |
| Isolation Voltage (Channel-to-Channel) | 2546 VDC (tested for 1 second) |
| Isolation Voltage (User-to-System) | 2546 VDC (tested for 1 second) |
| Connection Terminal Blocks | TC-TBNH, 20-position terminal block |
| Dimensions | 96 × 96 × 48 mm |
| Weight | 0.5 kg |
FAQ
Q1: Is the TC-IAH061 brand new and original?
A1: Yes, all Honeywell TC-IAH061 units are full new and original factory products.
Q2: How soon will my order ship?
A2: We have stock available. Shipping occurs within 3 days to 2 weeks depending on order quantity.
Q3: What logistics options are available?
A3: We typically ship via DHL, FedEx, or UPS for secure and timely delivery.
Q4: Can I return the module if there is a quality issue?
A4: Yes, we support returns within 30 days for any product quality concerns.
Q5: What operating conditions can the TC-IAH061 handle?
A5: It operates reliably in industrial environments with temperatures from 0–55 °C and robust protection against electrical interference.
