Overview

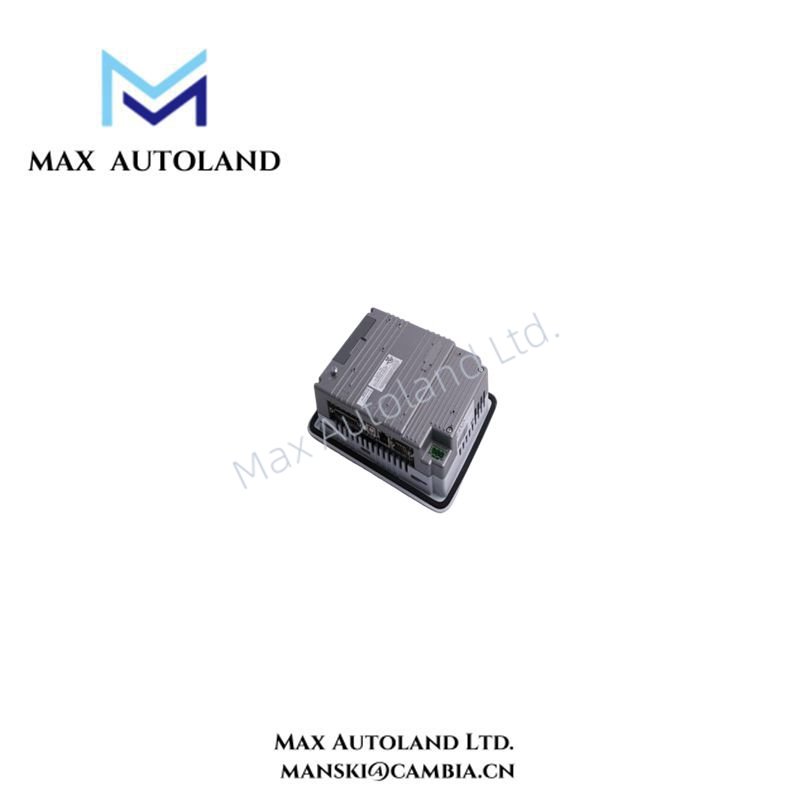

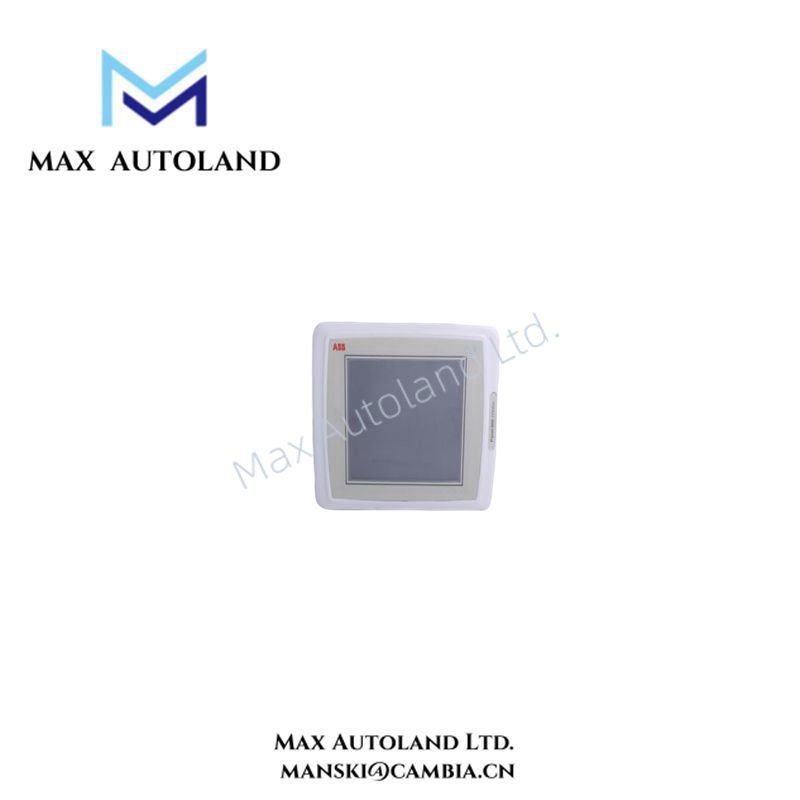

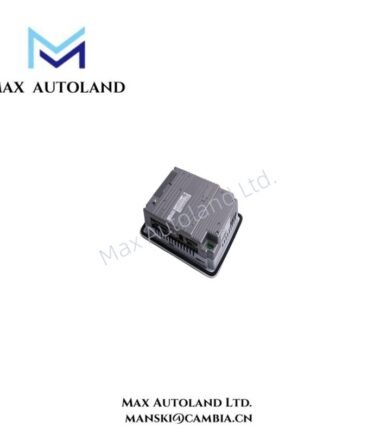

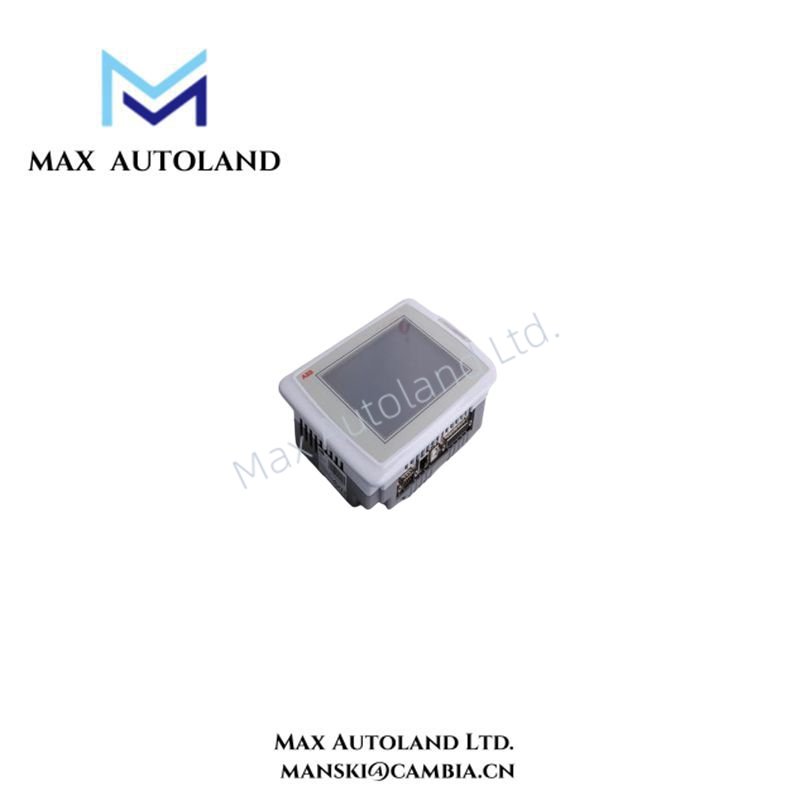

The ABB PP835A 3BSE043446R501 is a high-quality control system accessory designed for seamless integration with the ABB Advant DCS/800xA platform. This module enhances operational flexibility and supports efficient installation and configuration, ensuring smooth communication across the system.
Engineered for durability, the PP835A provides reliable performance in industrial environments. Its compact design simplifies panel integration while maintaining precise system connectivity. Additionally, this accessory is compatible with a wide range of modules within the DCS/800xA architecture, ensuring scalability and operational consistency.
Specification
| Parameter | PP835A | |
| Front panel,WxHxD | 219x154x6mm | |
| Mounting depth | 56 mm(156mm including clearance) | |
| Front panel seal | IP 66 | |
| Rear panel seal | IP 20 | |
| Keyboard material/Front panel | Touch screen:Polyester on glass,1 million finger touch operations. Overlay:Autotex F157/F207*. | |
| Reverse side material | Powder-coated aluminum | |
| Weight | 1.2 kg | |
| Serial port RS422/RS485 | 25-pin D-sub contact,chassis-mounted female with standard locking screws 4-40 UNC. | |
| Serial port RS232C | 9-pin D-sub contact,male with standard locking screws 4-40 UNC. | |
| Ethernet | Shielded RJ45 | |
| USB | Host type A(USB 1.1),max output current 500mA Device type B(USB 1.1) | |
| CF-slot | Compact flash,type land Il | |
| Flash memory for application | 12 MB(incl.fonts) | |
| Real time clock | ±20 PPM+error because of ambient temperature and supply voltage.Total maximum error:1 min/month at 25℃ Temperature coefficient:-0.034±0.006 ppm/°C² | |
FAQ
Q1: Is the PP835A fully compatible with existing ABB DCS/800xA installations?
A1: Yes, PP835A integrates seamlessly with ABB DCS/800xA panels and modules.
Q2: What is the typical delivery time for this accessory?
A2: Inventory is available. Standard shipping occurs within 3 days to 2 weeks depending on order size.
Q3: Can I return the accessory if it has a defect?
A3: Yes, ABB supports returns within 30 days if the product has a quality issue.
Q4: Does the PP835A require additional power or batteries?
A4: No, the module draws power directly from the DCS/800xA system.
Q5: Can the PP835A be used in harsh industrial environments?
A5: Yes, it is designed for robust industrial operation and meets standard environmental specifications.
Manual/Datasheet PDF
