Overview
Product Function

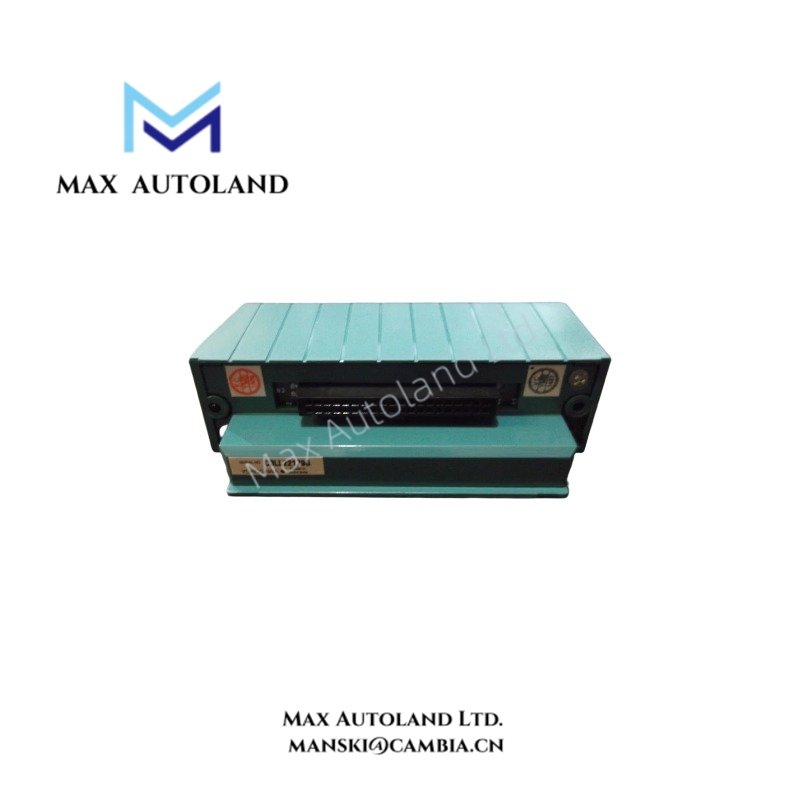

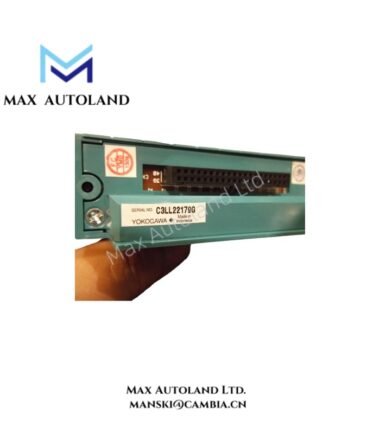

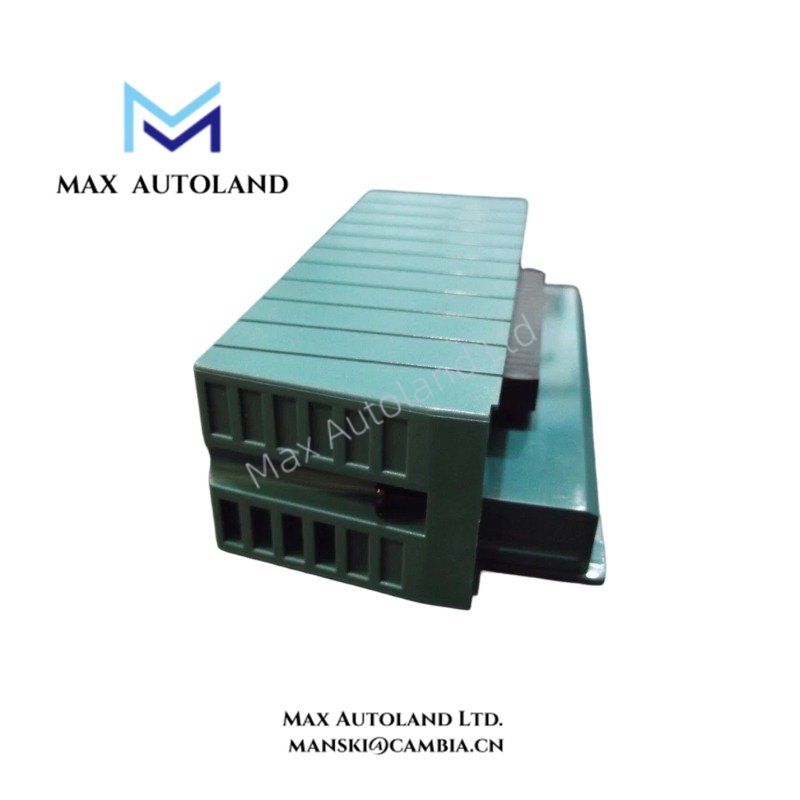

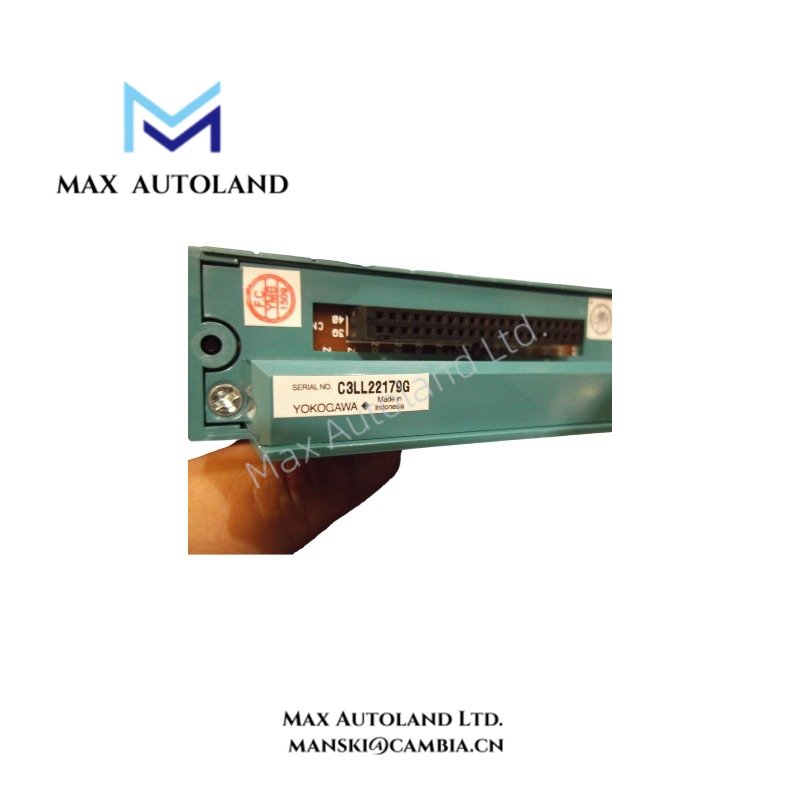

The NFTI3S-00 provides pressure clamp connections for field signals associated with isolated analog and pulse modules. It supports direct wiring between external signal conductors and the I/O module interface.
Its application covers the following module configurations:
- NFAI135: 8-channel isolated analog input.
- NFAF135: 8-channel frequency input.
- NFAP135: 8-channel pulse input.
- NFAI835: 4-channel isolated analog input and 4-channel isolated analog output.
The terminal block must be matched to the corresponding I/O module. It is not a general-purpose 12-channel analog terminal block.
Model and Suffix Codes
The ordering designation identifies the terminal block model and its surge protection configuration.
| Code | Specification |
|---|---|
| NFTI3S | Pressure Clamp Terminal Block for Isolated Analog Module and Pulse Module |
| -0 | Basic Type |
| -1 | With surge absorber |
| 0 | Always 0 |
The NFTI3S-00 designation identifies the basic configuration without a surge absorber. The NFTI3S-10 is the corresponding configuration with a surge absorber.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NFTI3S-00 |
| Spare Model | NFTI3S-00 |
| Brand | Yokogawa |
| Product Type | Pressure Clamp Terminal Block |
| Series | STARDOM |
| Terminal Type | Pressure Clamp |
| Configuration | Basic Type |
| Surge Absorber | No |
| Supported I/O Type | Isolated Analog and Pulse |
| Compatible Modules | NFAI135, NFAI835, NFAP135, NFAF135 |
| Channel Configuration | 8-channel or 4-channel input / 4-channel output, depending on module |
| Country of Origin | Japan |
| Shipping Dimensions | 3.2 x 6 x 11.3 cm |
| Weight | 0.15 kg |
| HS Code | 8537101190 |
Frequently Asked Questions
Q: Which I/O modules are compatible with the NFTI3S-00?
A: It is specified for the NFAI135, NFAI835, NFAP135 and NFAF135 isolated analog and pulse modules. Check the exact I/O module model before selecting the terminal block.
Q: What is the difference between NFTI3S-00 and NFTI3S-10?
A: The NFTI3S-00 is the basic type without a surge absorber, while the NFTI3S-10 includes a surge absorber. Select the configuration according to the required wiring and protection arrangement.
Q: Is the NFTI3S-00 a 12-channel analog terminal block?
A: No. It supports specific isolated analog and pulse modules. The channel configuration depends on the connected module, including 8-channel configurations and 4-channel input / 4-channel output configurations.
