Overview
Function and Application

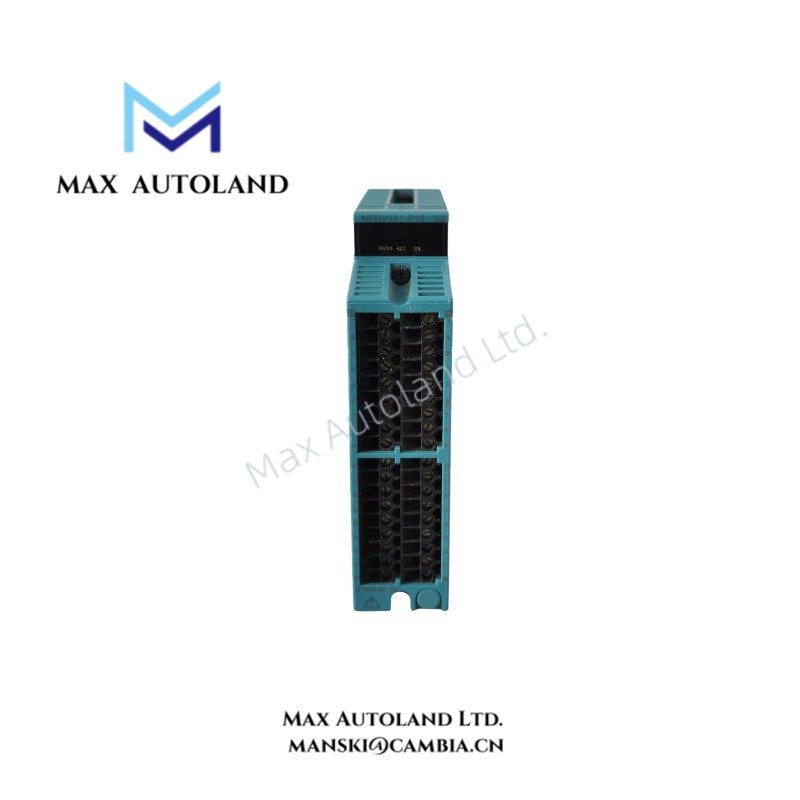

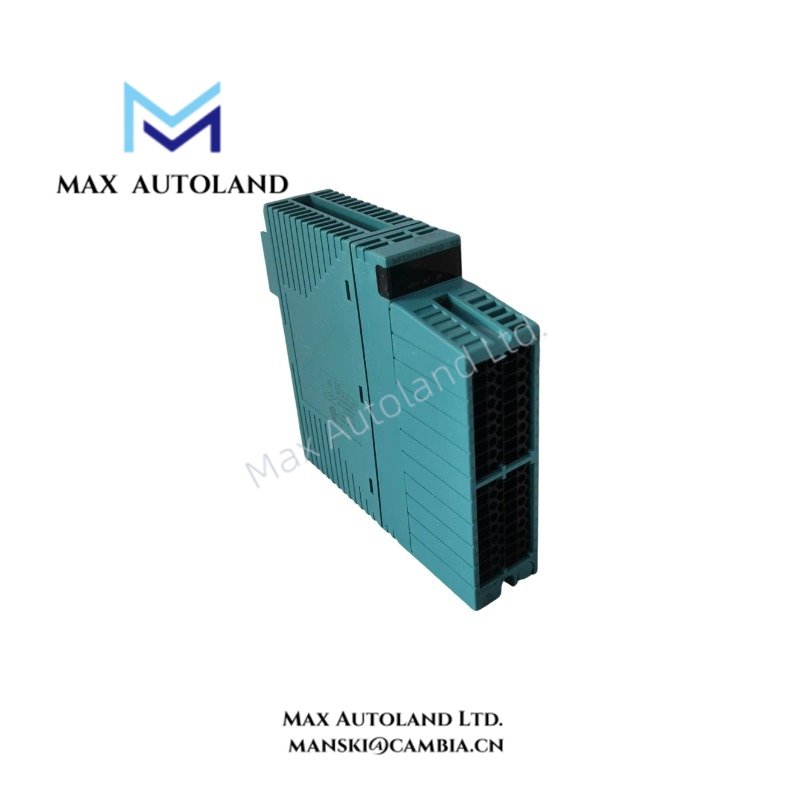

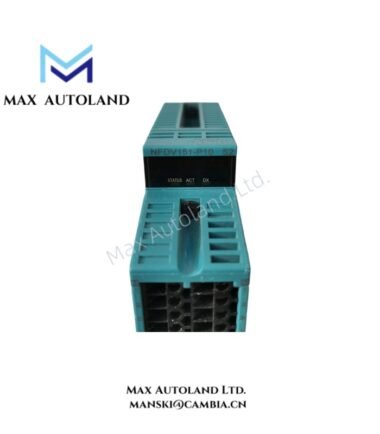

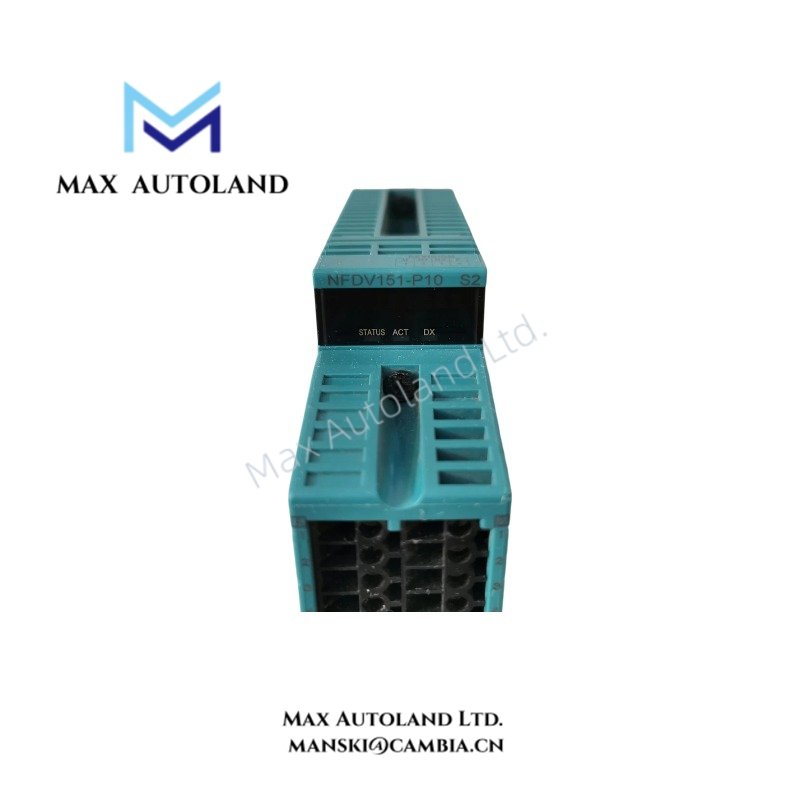

The NFTB5S-00 S2 provides the wiring interface between external field devices and the digital input module. It works with the Yokogawa NFDV151, which handles 32 digital input channels at 24 VDC.
As a result, the terminal block helps organize field connections and transfer discrete signals to the control system. However, the terminal block itself does not perform digital signal processing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NFTB5S-00 S2 |
| Spare Model | NFTB5S-00 |
| Brand | Yokogawa |
| Product Type | Pressure Clamp Terminal Block |
| Application | Digital Input |
| Connecting Channels | 32 |
| Compatible I/O Module | NFDV151 |
| Connection Type | Pressure Clamp Terminal |
| Weight | 0.2 kg |
| Dimensions | 3.2 x 6 x 11.3 cm |
| Country of Origin | Japan |
| Tariff Code | 8537101190 |
Connection Configuration
The NFTB5S-00 S2 connects field wiring to the NFDV151 digital input module. The NFDV151 processes the incoming 24 VDC signals across its 32 input channels.
Therefore, buyers should check both model numbers when selecting a replacement. In particular, confirm the terminal block type and the associated I/O module before ordering.
Frequently Asked Questions
Q: Is the NFTB5S-00 S2 a digital input module?
A: No. It is a pressure clamp terminal block for digital input connections. The NFDV151 performs the actual digital input processing.
Q: How many channels does the NFTB5S-00 S2 support?
A: It provides 32 connection points for the associated NFDV151 digital input module.
Q: Which I/O module works with the NFTB5S-00 S2?
A: The specified associated module is the Yokogawa NFDV151. It handles 32 digital input channels with a 24 VDC signal configuration.
