Overview
Specification
| Specification | Details |
|---|---|
| Model Number | AIP601 |

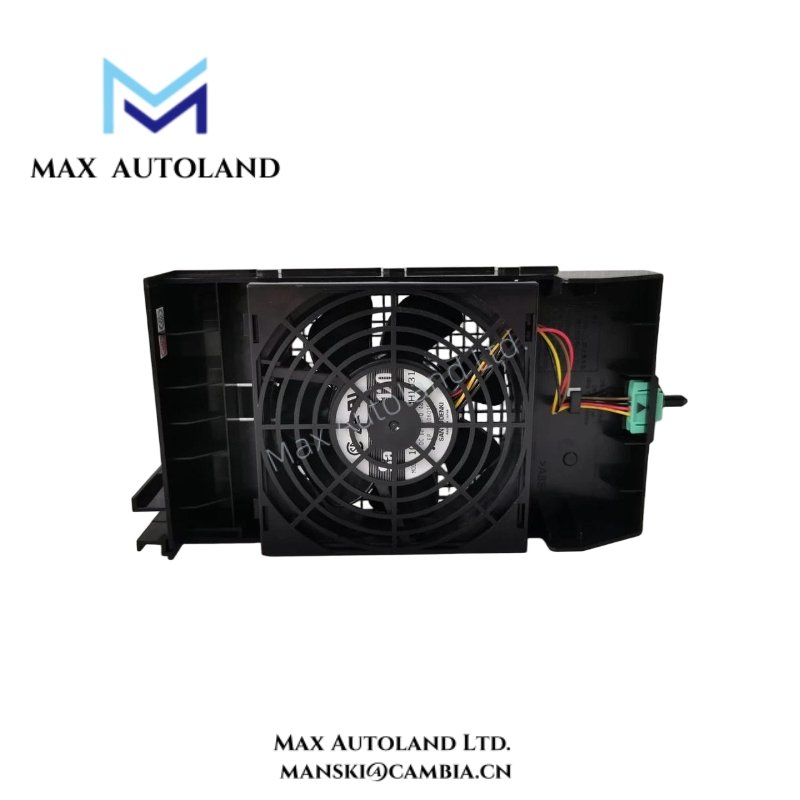

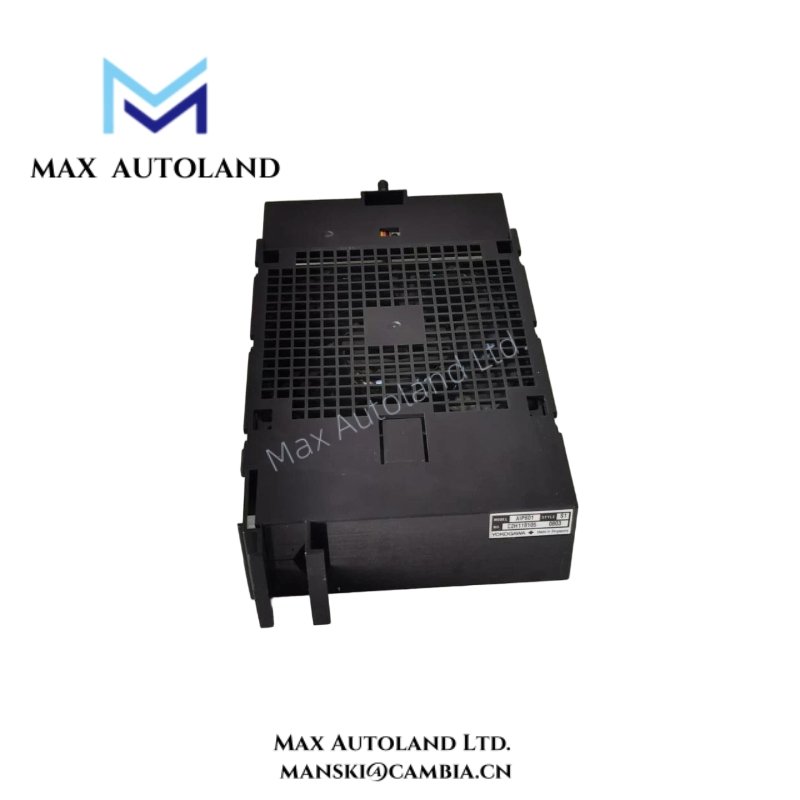

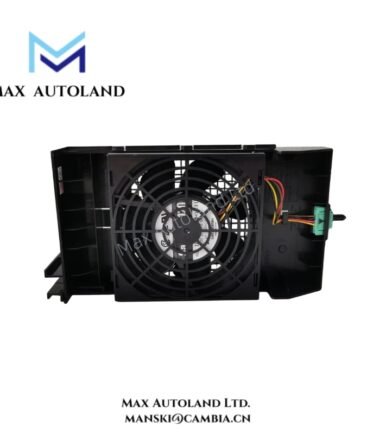

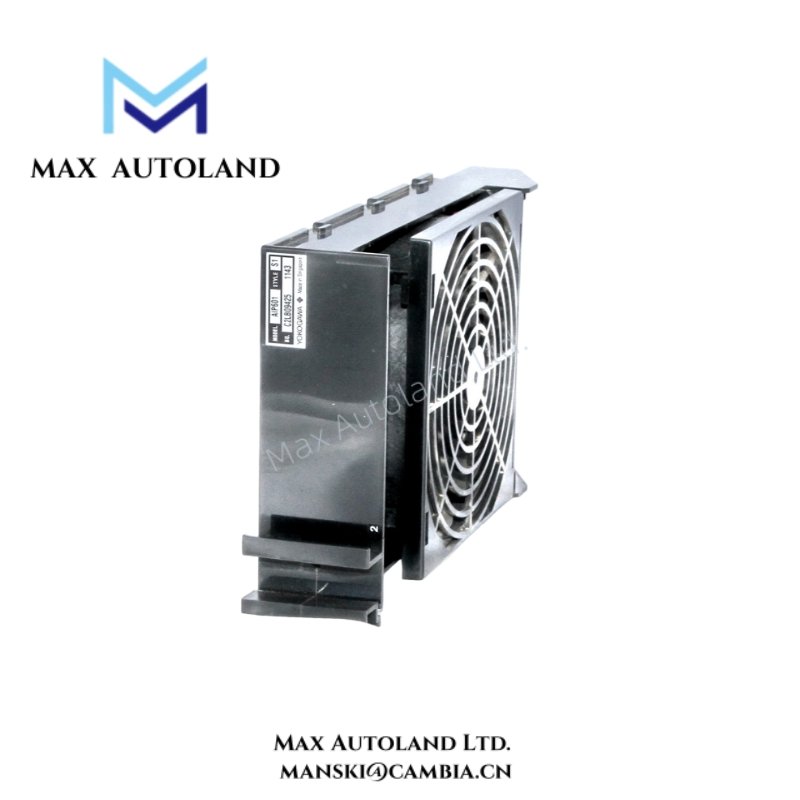

| Product Type | Door Fan Module for Control Cabinets |
| Manufacturer | YOKOGAWA Electric Corporation |
| Application | Cooling and ventilation for Yokogawa control systems (e.g., CENTUM CS, CENTUM VP) |
| Compatibility | Vnet/IP systems, AFV40S, AFV40D, I/O expansion cabinets (ACB series) |
| Airflow Function | Provides essential cooling to prevent overheating and maintain stable operation |
| Power Supply | Rated AC: 250 V AC; Max DC: 30 V DC |
| Input Voltage | Up to 250 V AC / 30 V DC |
| Power Consumption | Typical ~10 W (based on similar AIP601 S1 data) |
| Dimensions (Approx.) | ~130 mm × 180 mm × 165 mm (W×H×D) |
| Weight | ~0.3–0.4 kg |
| Noise Level | Industrial fan typical range (not officially published) |
| Operating Temperature | Standard industrial ambient range |
| Humidity Rating | 5–95% non-condensing |
| Backup Capability | Provides up to 72 hours main memory backup support on some systems |
| Vnet/IP Interface | Dual‑redundant interface for system communications |
| Max # I/O Modules Supported | Up to 6 modules supported in corresponding control racks |
| Mounting Method | Panel or door mounting inside control cabinets |
| Housing Material | Industrial‑grade materials for long service life |
| Certifications | CE and other regional safety approvals (market dependent) |
| Origin | Japan |
FAQ
A1: The AIP601 operates on 24 V DC for safe and reliable performance.
Q2: Can it be mounted on existing control panels?
A2: Yes, it is compatible with standard door or panel mounting setups.
Q3: What is the typical airflow provided by this fan?
A3: The fan delivers approximately 20–30 CFM depending on installation conditions.
Q4: What is the operating temperature range?
A4: The module functions reliably between –10°C to +55°C (14°F to 131°F).
